Corrective maintenance
D/R - Side panel
Tools
• torque screwdriver
• T25 Torx bit
Repair kit
G03645
KR loudspeaker 12'' L2(D)
×24
S100302
M5×20 Torx
Prerequisite
Grill removed. See D/R - Grill (p.110).

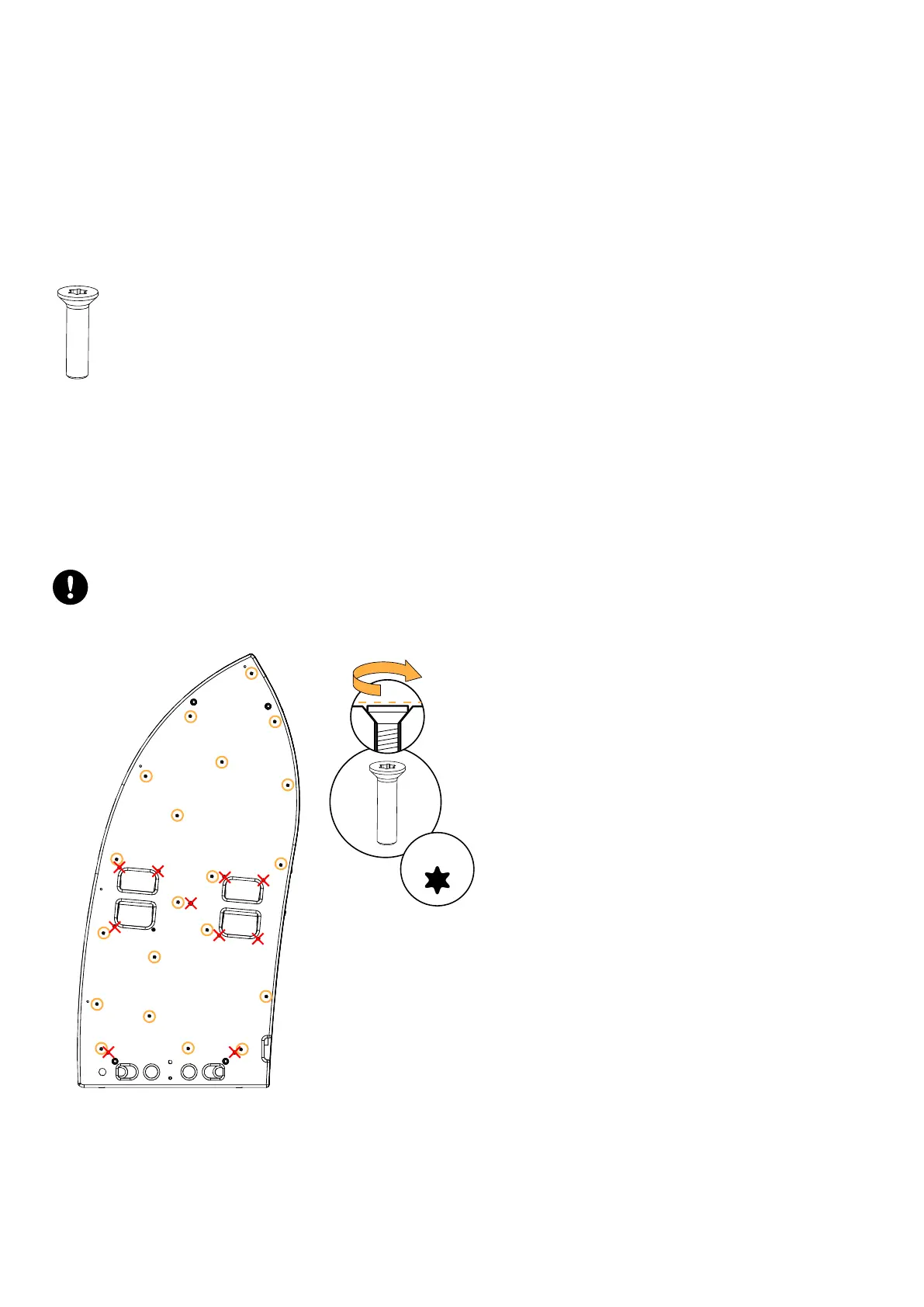

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
The side panel is held by 16 screws (circled in the illustration). Do not remove the screws that are crossed out.
x16
T25
right-hand side panel (panels are symmetrical)
116 L2 owner's manual (EN) version 2.0
