Corrective maintenance
D/R - HF driver
Tools
• torque screwdriver
• T30 Torx bit
Repair kit
G03646 - KR compression driver 3" L2(D)
G03650 - KR diaphragm 3'' L2(D)
×1 ×4
G100528 S100143
3" HF driver assembly - 8 Ω M6×25 Torx
Prerequisite
Connector plate removed. See D/R - Connector plate (p.118).
Rear grill removed. See D/R - Rear grill (p.119).
Trapdoors removed. See D/R - Trapdoors (p.120).

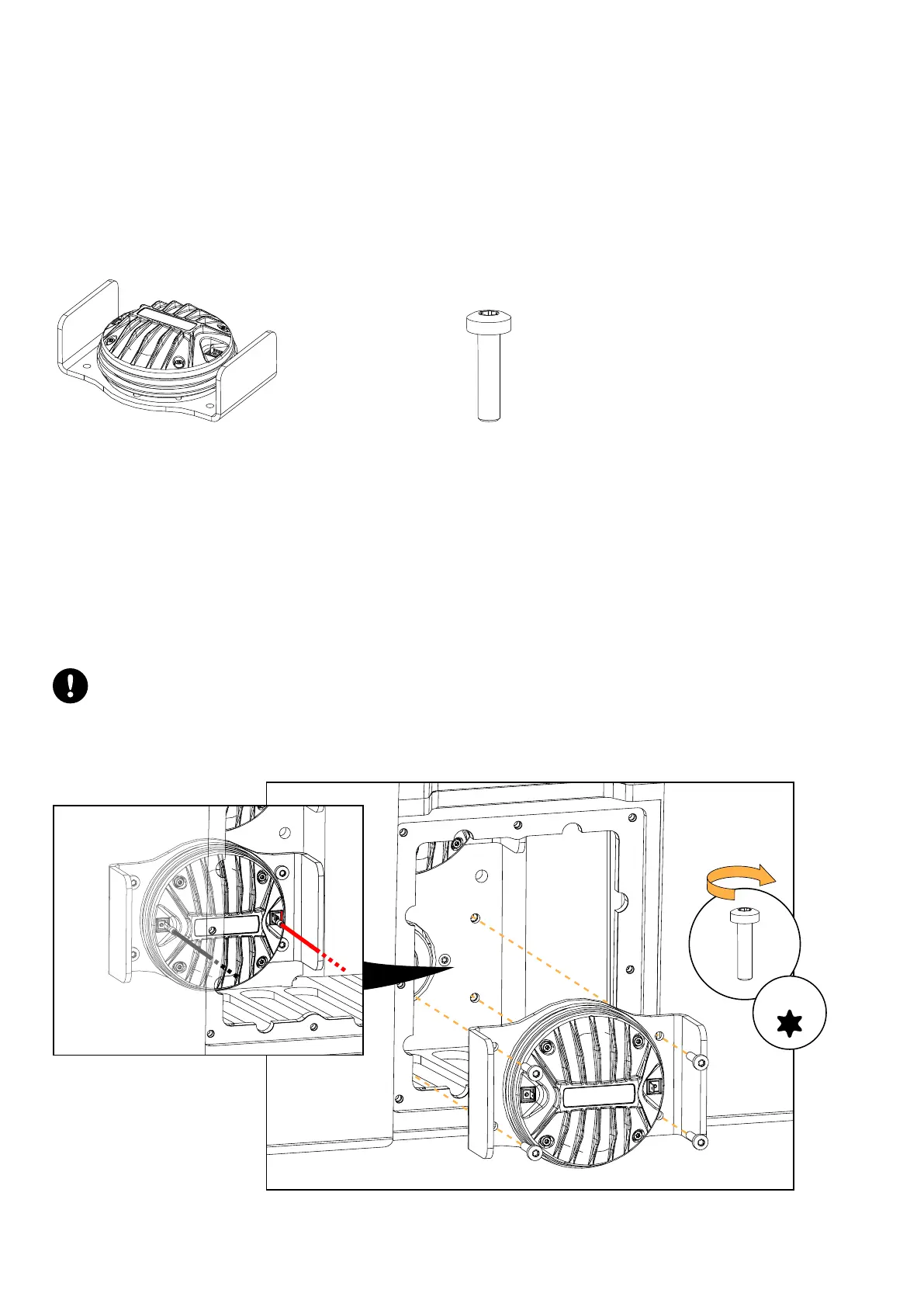

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Carefully disconnect the cables before removing the driver assembly.
Use the positive (red) connector as a reference point to position the driver assembly.
x4
5 N.m
T30
L2 owner's manual (EN) version 2.0 121
