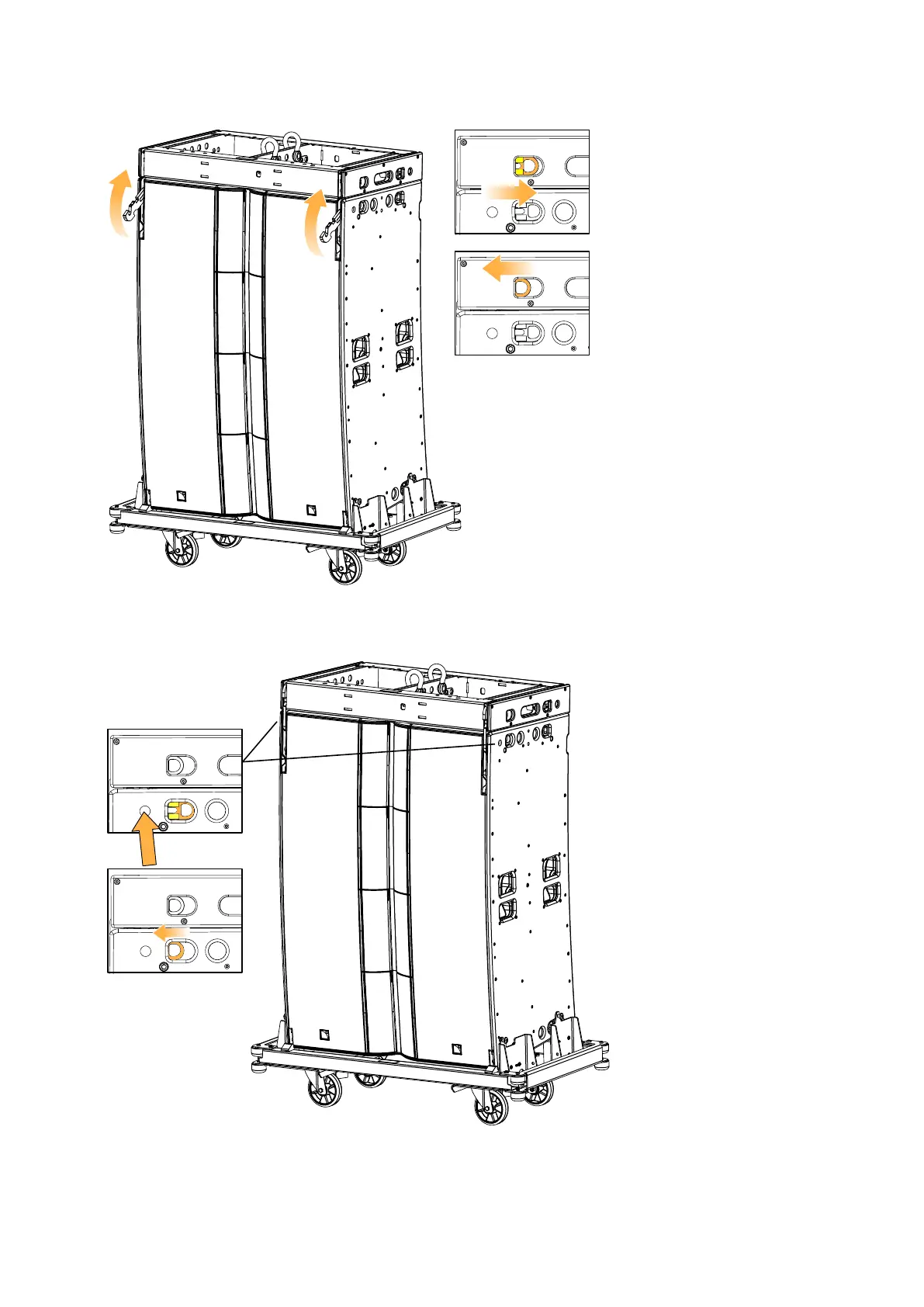

Rigging procedures
b)
Pull on the front latches and rotate the rigging arms of the enclosure.
The latches of L2-BUMP slide out slightly and come back into their positions.
c)
Press the front buttons on both sides of the enclosure to activate the automatic locking system.
The latch retracts when the button is pushed (no yellow label visible).
SHLAK!
L2
owner's
manual
(EN)
version
2.0
61
60
62
Table of Contents
Table of Contents
3
Safety
6
Instructions
6
Introduction
8
L2/L2D 16-Channel Active Progressive Curvature WST Enclosures
8
How to Use this Manual
9
Revision History
9
System Components
10
System Component Illustrations
11
Electro-Acoustical Description
14
Polar Pattern
14
Adjustable Ns
15
Directivity
19
Preset Description
22
Connectors
23
Rigging System Description
24
L2/L2D
24
Rigging Elements
28
L2-Bump
28
L2-Bar
30
L2-Rigbar
31
Delta 1.5T
33
La-Rakmount
34
K2-Jack
35
L2-Lasermount
36
Storage and Handling
37
L2-Roll
37
L2-Chariot
38
L2D-Chariot
39
L2-Chariotcov
40
L2D-Chariotcov
41
L2-Chariotlid
42
L2D-Chariotlid
43
L2-Bumpflight
44
Mechanical Safety
45
Loudspeaker ConGurations
47
Line Source
47
Line Source with Low-Frequency Element
48
Rigging Procedures
51
Securing L2/L2D on L2-CHARIOT/L2D-CHARIOT
51
Flying
57
Securing LA-RAK III on L2-BUMP with LA-RAKMOUNT
57
Flying an L2/L2D Array with L2-BUMP and L2-BAR
60
Flying an L2/L2D Array with L2-RIGBAR
70
Adding a Pullback with L2-RIGBAR
72
Stacking
74
Attaching K2-JACK Stabilizers to L2-CHARIOT/L2D-CHARIOT
74
Adjusting L2-CHARIOT Site Angle with K2-JACK
77
Adjusting L2D-CHARIOT Site Angle with K2-JACK
79
Transporting
81
Mounting L2-CHARIOTLID/L2D-CHARIOTLID on L2/L2D
81
Stacking Multiple L2-CHARIOT/L2D-CHARIOT
84
Stacking Multiple L2-CHARIOTLID/L2D-CHARIOTLID
85
Connection to la AmpliEd Controllers
86
Corrective Maintenance
87
Preparing Enclosures for Maintenance
88
L2D
106
SpeciCations
124
L2D
126
Ks28
128
L2-Bump
130
L2-Bar
131
L2-Rigbar
132
La-Rakmount
133
Bpchain 1.5T
134
K2-Jack
135
L2-Lasermount
136
Delta 1.5T
137
L2-Chariot
138
L2D-Chariot
139
APPENDIX A: Recommendation for Speaker Cables
142
APPENDIX B: Installing a Laser Inclinometer
143
L2-Lasermount
143
L2-Bump
144
