Rigging procedures

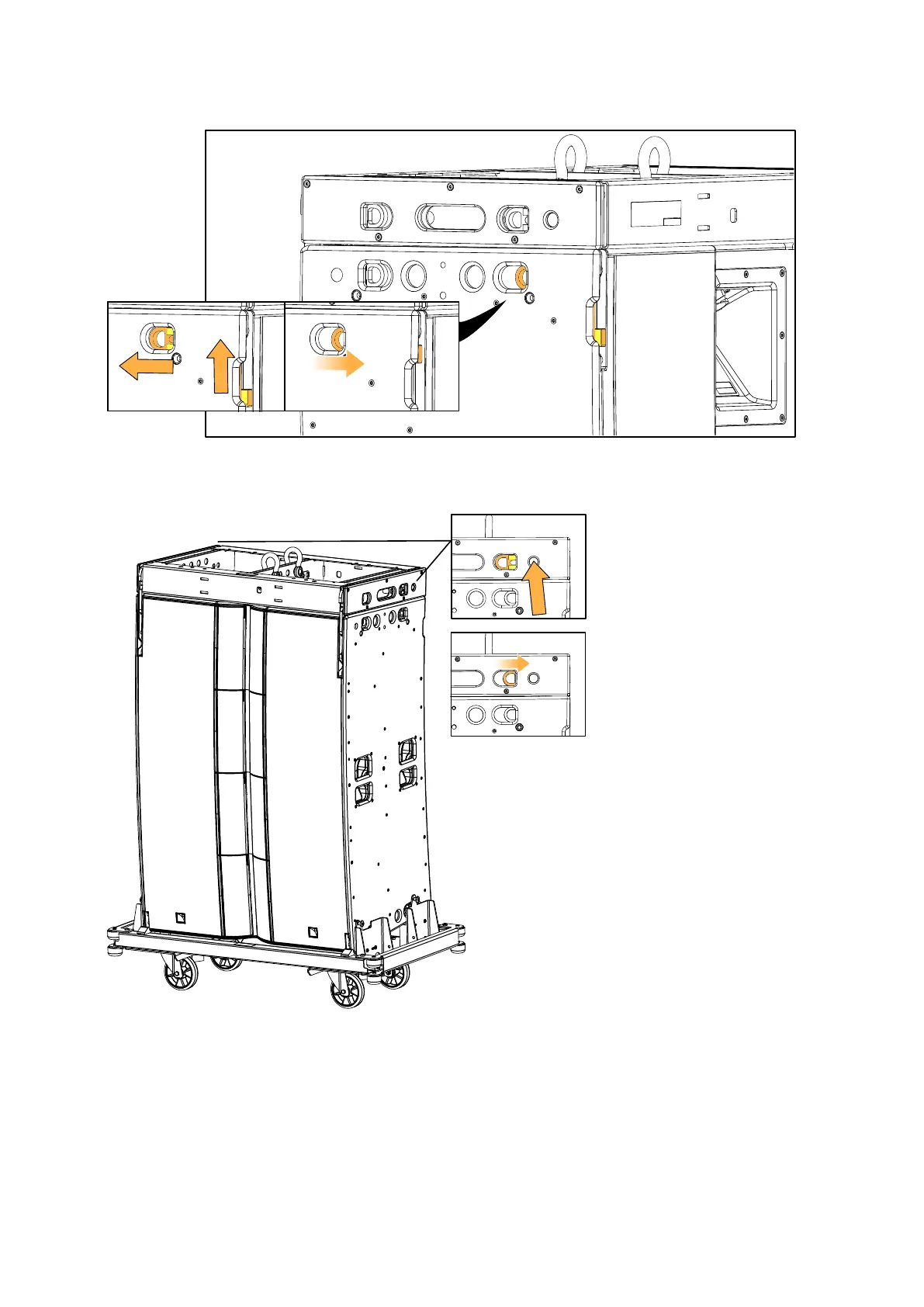

d) Pull on the rear latches of the enclosure while extending the rear rigging arms.
Release the latches to lock the rigging arms in position.
SHLAK!
e) Press the buttons on both sides of L2-BUMP to activate the automatic locking system.
The latch retracts when the button is pushed (no yellow label visible).
SHLAK!
Optionally to extend the site angle capability, secure one or two L2-BAR on L2-BUMP using pins.
L2-BAR can be attached in position A or B, as a rear or a front extension.
2. Select the pickup points on the rigging element.
3. Remove the chariot from the enclosure:
a) Slightly raise the array.
62 L2 owner's manual (EN) version 2.0
