L-ACOUSTICS MTD Manual V1.2 11/30/2004 27

4.1 MTD108a FLOOR MONITOR SYSTEM

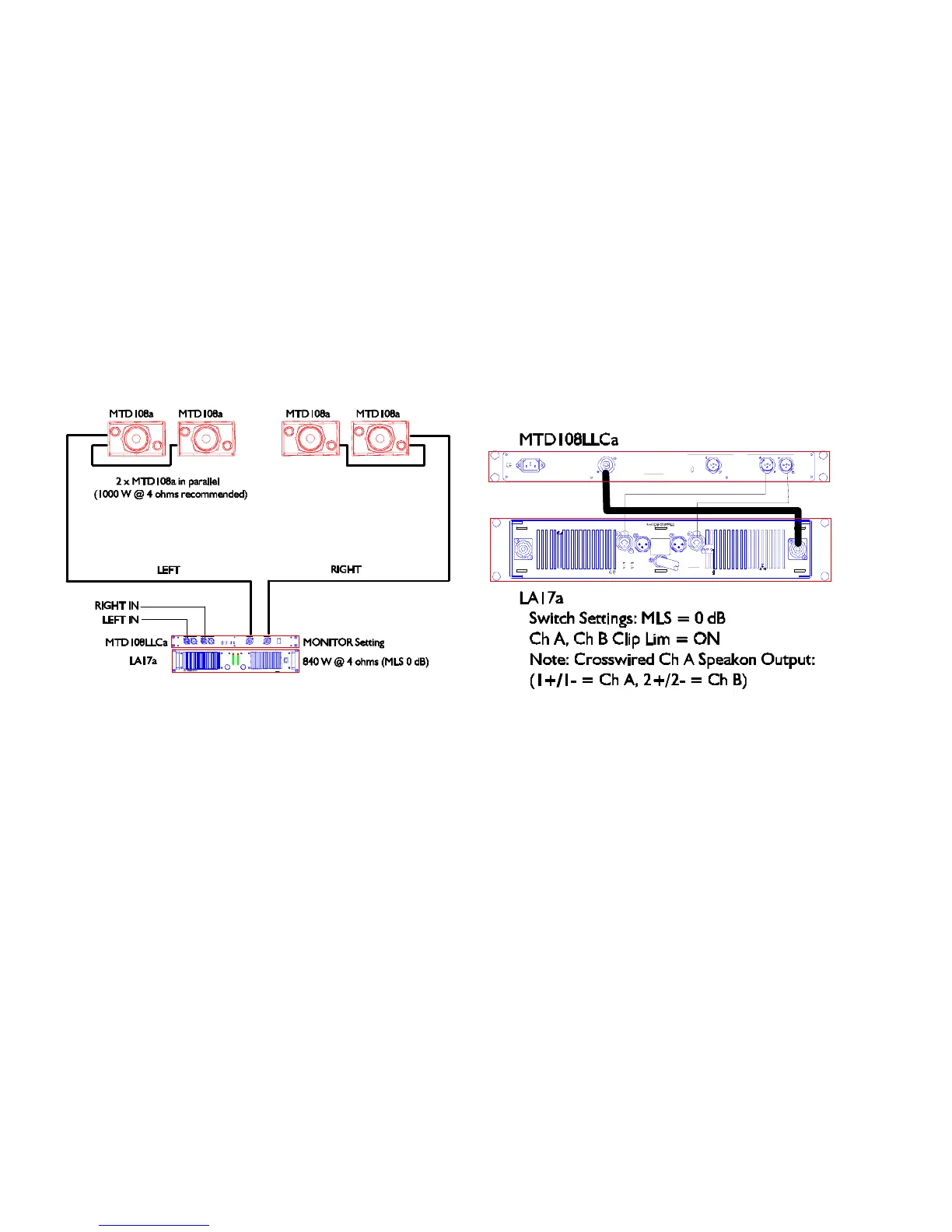

Figure 7a: MTD108a Floor Monitor System Block Diagram

Figure 7b: MTD108a Floor Monitor System Cabling Detail
