L-ACOUSTICS MTD Manual V1.2 11/30/2004 32
4.6 MTD112b FOH SYSTEM (STEREO SUBS)

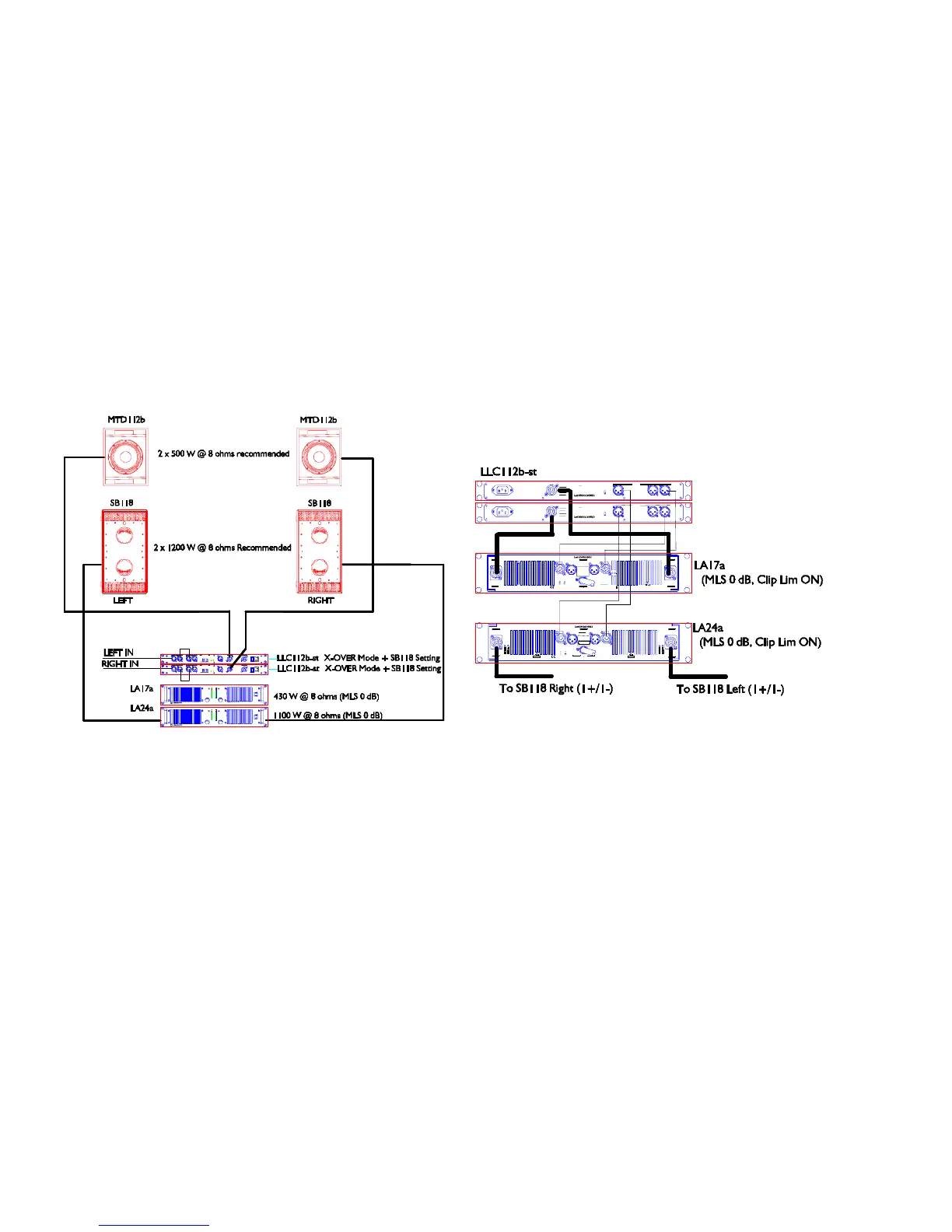

Figure 12a: MTD112b FOH System Block Diagram (stereo subwoofers)
(note: LLC ChA to ChB link provides +6 dB increase for subwoofer drive)
Figure 12b: MTD112b FOH System Cabling Detail (stereo subwoofers)
