L-Acoustics MTD Series User Manual

L-ACOUSTICS MTD Manual V1.2 11/30/2004 41
125 Hz
250 Hz
500 Hz
1 kHz 2 kHz 4 kHz

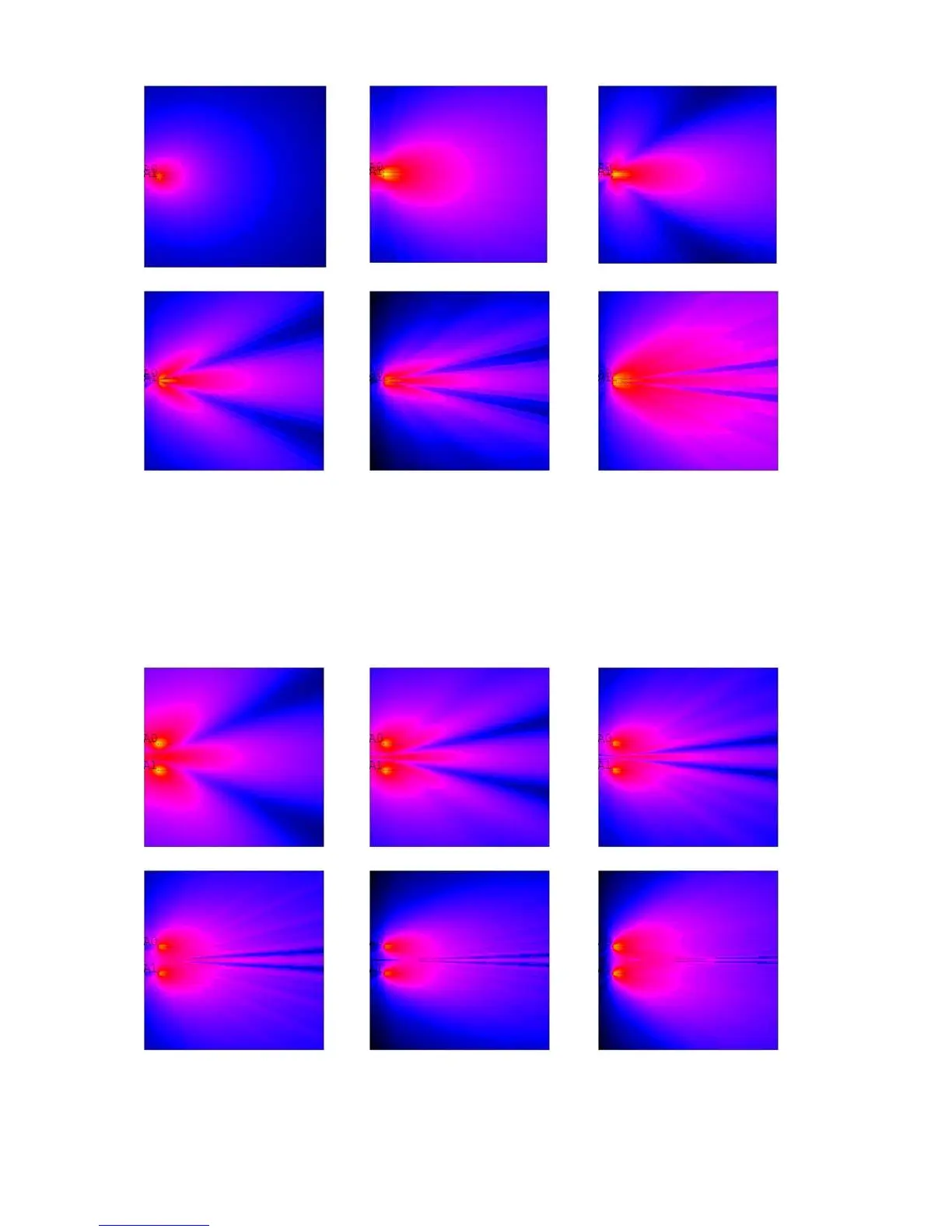

Figure 21: SPL mappings at octave band frequencies for two MTD enclosures with 0.5 metre spacing (arrayed
system corresponding to the “works” case shown in Figure 23)
Figure 22 shows SPL mappings for a distributed system of two MTD enclosures with a spacing of 3
meters. Interference now occurs lower in frequency and tends to be masked by room reverberation.
Compared with the closely spaced (arrayed) system of Fig. 21, there is now improved intelligibility at
higher frequencies. Essentially, the key to successful distributed system design is reducing the effects
of audible interference.
125 Hz 250 Hz 500 Hz
1 kHz 2 kHz 4 kHz
Figure 22: SPL mappings at octave band frequencies for two MTD enclosures with 3 metre spacing (distributed
system corresponding to the “best” case shown in Figure 23)
