L-ACOUSTICS MTD Manual V1.2 30-11-04 53
6.3 OMNIMOUNT ATTACHMENT (MTD112b, MTD115b)

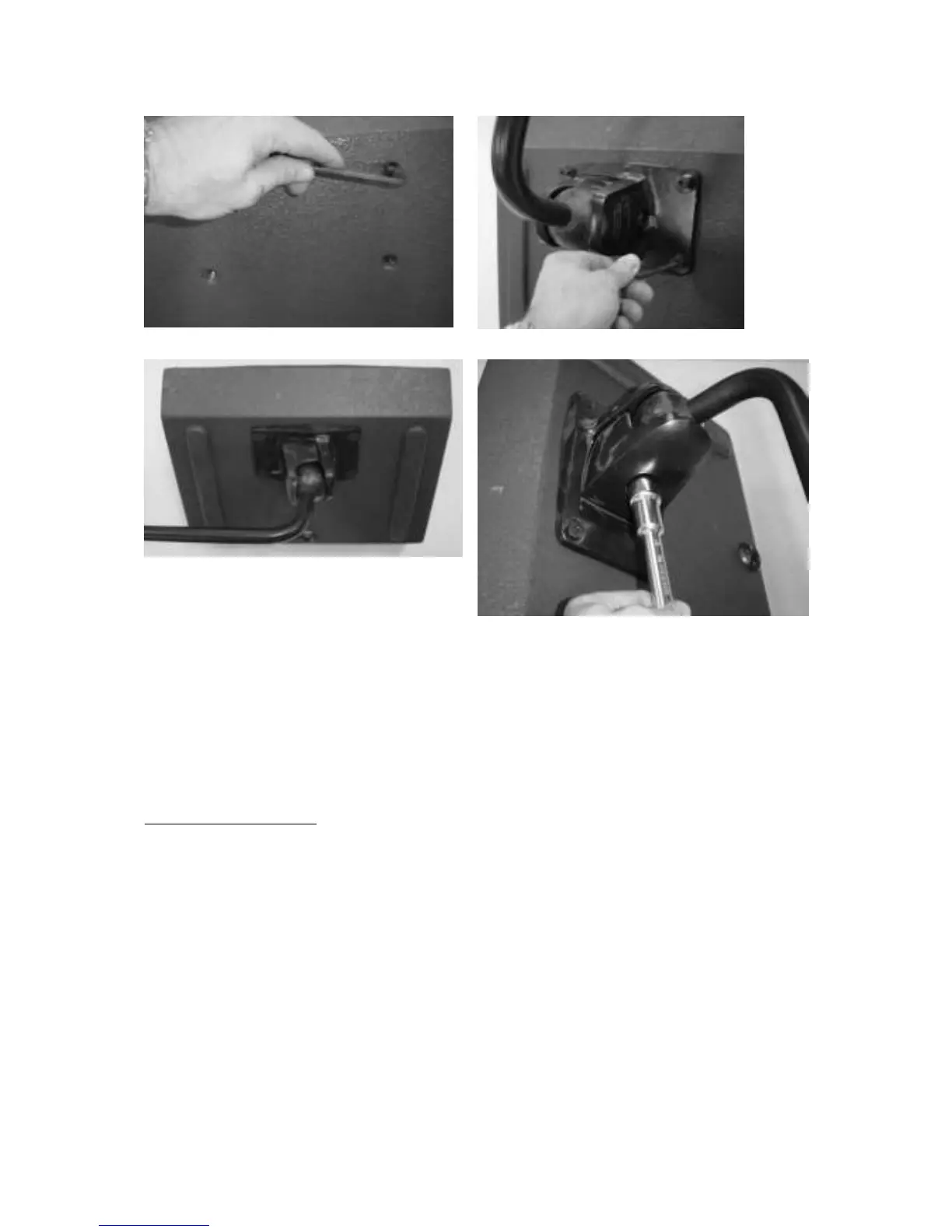

(1) Remove Omnimount attachment screws (5 mm allen key)
(2) Attach Omnimount plate to enclosure
(3) Omnimount adapter can be used for installation in horizontal or
vertical orientation with continuous angle adjustment
(4) Angle adjustment
Figure 29: Omnimount installation procedure
6.4 SAFETY RULES
When using ETR8 for mounting the MTD108a enclosure in the vertical orientation, always install the
U-bracket with the fixed arm on the bottom and the pivoting arm on top.
ETR1 and ETR2 are for installation of MTD112b or MTD115b enclosures, respectively, in the
horizontal orientation only
.
L-ACOUSTICS recommends the use of safety steels at all times. The integrated single stud anchor
plate and the PION1 single stud fitting can be used for safety attachment for MTD112b and MTD115b
enclosures.
