COMPONENT MAINTENANCE MANUAL
AVIATION PRODUCTS
Model FA5000
Rev. 02 Page 306
Disassembly
23–70–30
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
July 21/17
(1−110)
(1−95)
Some parts are removed
for clarity purposes
NOTE:
(1−115)
(1−45)
(Qty. 2)
Memory Interface
Cable Assembly
1/4” Pan−Head Sealing
Screws (1−125)
(Qty. 4)
CSMU
Memory Assembly
(1-120)
(1−130)
(Qty. 2)
(1−95)
(REF.)

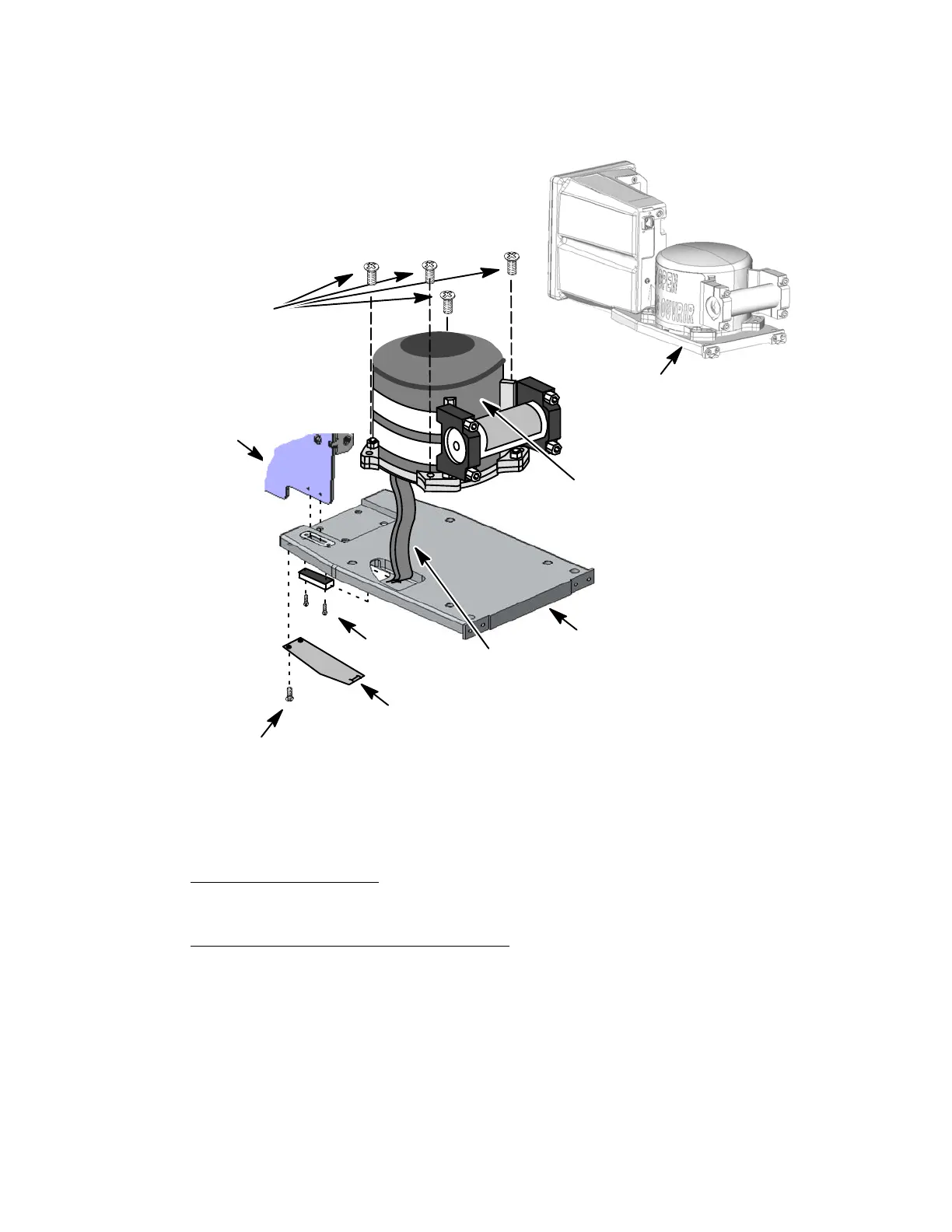

Figure 302.
CSMU Memory Assembly Removal Diagram
C. Rear Cover Removal
(See Figure 304 or IPL Figure 1, Item 10)
REAR COVER REMOVAL PROCEDURE
(1) Loosen the six captive screws (1−15) used to secure the rear cover (1−10) to
the rear part of the Shielded Housing (1−5).
(2) Slide rear cover (1−10) straight back from recorder until the AI (1−25) and MP
(1−45) PWAs separate at each other’s connector.
(3) Remove the rear cover (1−10).
The document reference is online, please check the correspondence between the online documentation and the printed version.
