COMPONENT MAINTENANCE MANUAL
AVIATION PRODUCTS
Model FA5000
Assembly
23–70–30
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
Rev. 02 Page 705
July 21/17
(3) Install CSMU (1−120) cable connector to the MP PWA (1−45) and secure with
installing two screws (1−130). Tighten screws to a torque value of 5−10 in./lbs
(4) Install CSMU cable cover plate (1-110) and secure with installing two screws
(1−115). Tighten screws to a torque value of 5−6 in./lbs
(1−110)
(1−95)
Some parts are removed
for clarity purposes
NOTE:
(1−115)
(1−45)
(Qty. 2)
Memory Interface
Cable Assembly
1/4” Pan−Head Sealing
Screws (1−125)
(Qty. 4)
CSMU
Memory Assembly
(1-120)
(1−130)
(Qty. 2)
(1−95)
(REF.)
Torque Sequence
75 in/lb
1
4
2
3

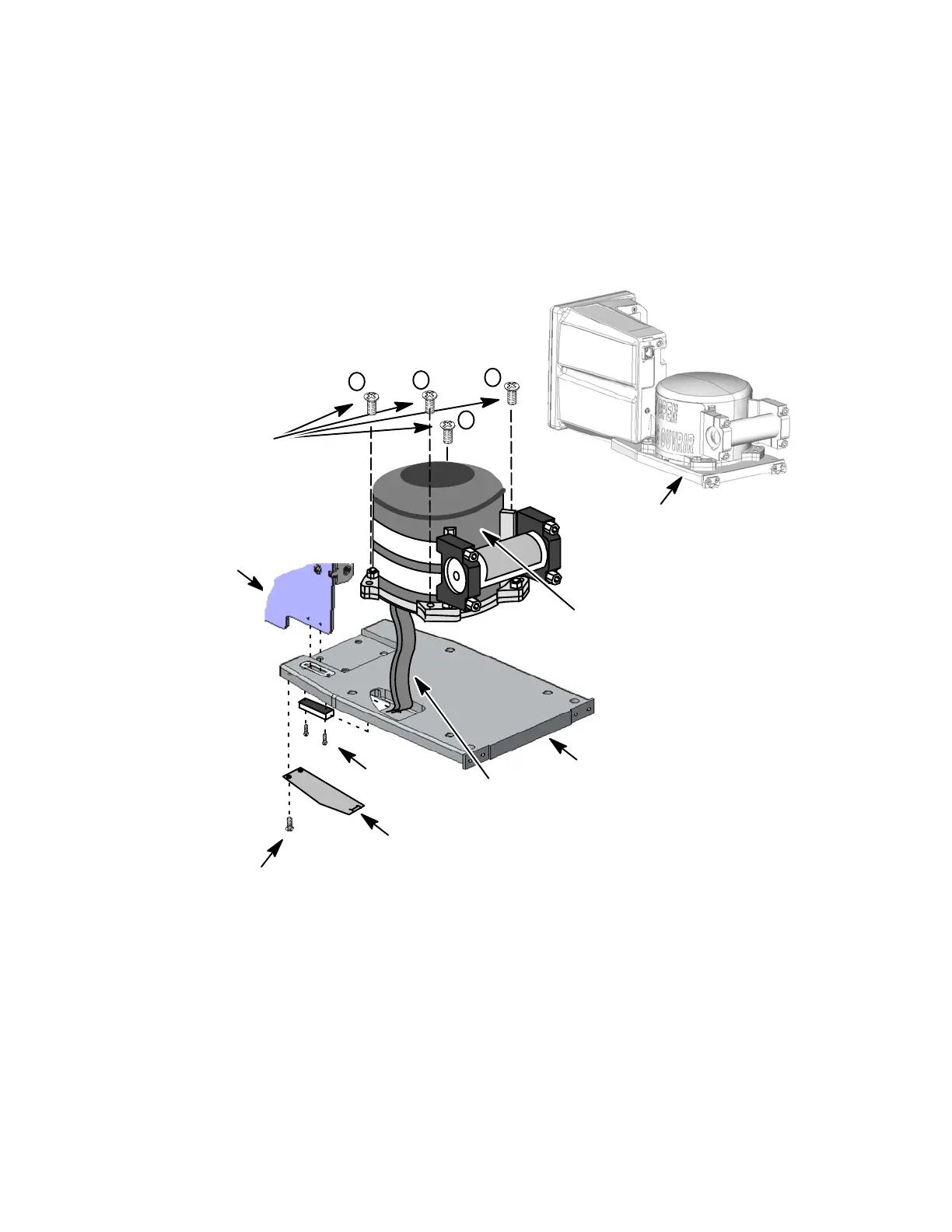

Figure 703.
Crash Survivable Memory Unit (CSMU) Assembly
