COMPONENT MAINTENANCE MANUAL
AVIATION PRODUCTS
Model FA5000
Fits and Clearances
23–70–30
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
Rev. 02 Page 805
July 21/17
2.3 CG
”B” HOLE
”B” HOLE
2.5 CG
4.2 CG
12.6
6.48

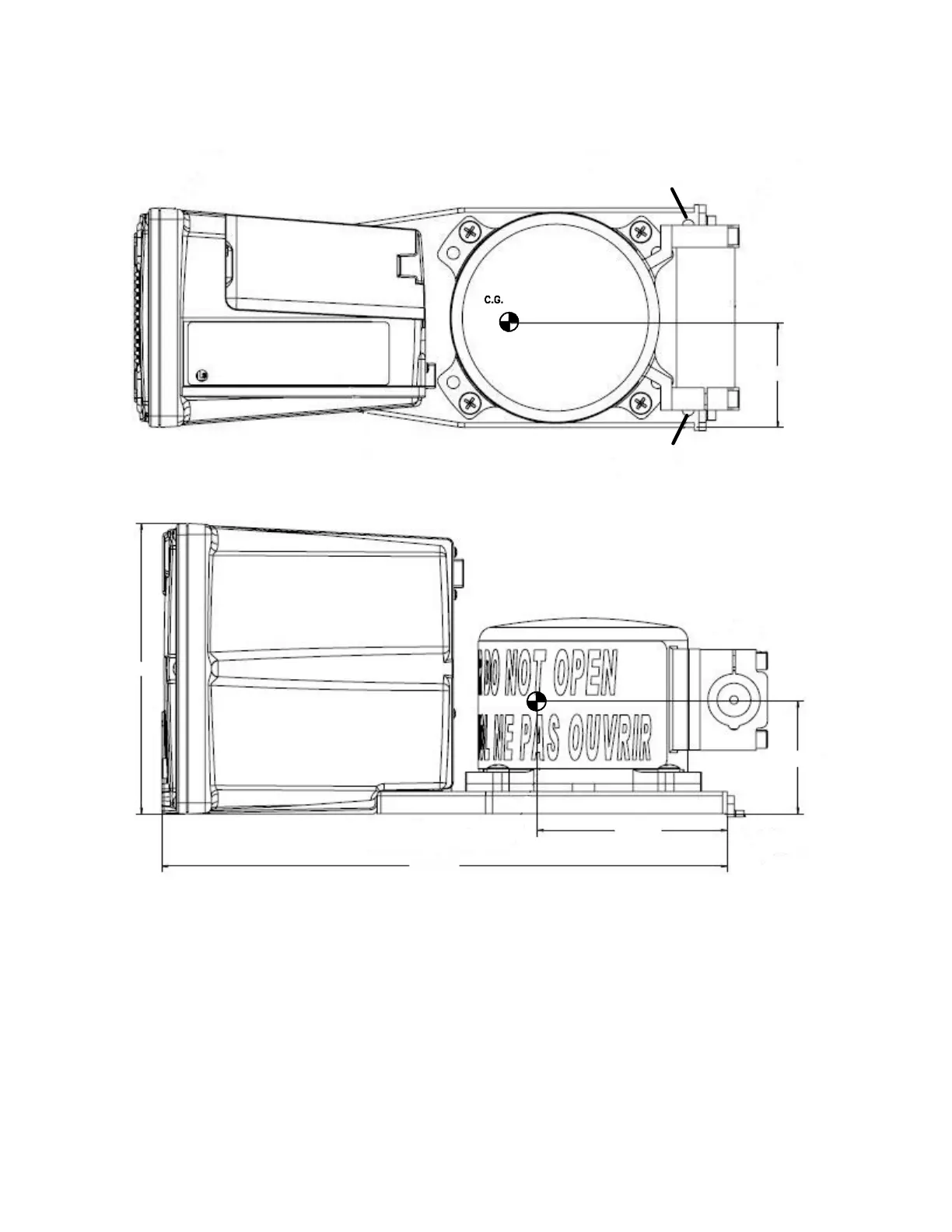

Figure 801. Sheet 1 of 2
Outline & Dimension Drawing
Model FA5000 Cockpit Voice Recorder
