COMPONENT MAINTENANCE MANUAL
AVIATION PRODUCTS
Model FA5000
Rev. 02 Page 1
July 21/17
Description and Operation
23–70−30
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
DESCRIPTION AND OPERATION
1. GENERAL
This Component Maintenance Manual describes the Model FA5000, Cockpit Voice Re-
corder (CVR). FA5000CVR, P/N: 5003-5000−00, 5003-5000-01, 5003-5001-50,
5013-5000-30, and 5013-5001-50. Features include:
F ED-112 compliant
F ARINC 757/A characteristics, including Greenwich Mean Time (GMT) interface
F Maintenance free − no periodic or scheduled maintenance, on-condition LRU
F Solid-state flash memory capable of 2 hour recording
RIPS
CSMU
BEACON
MOUNTING CHASSIS
MAIN RECORDER
J2
J1

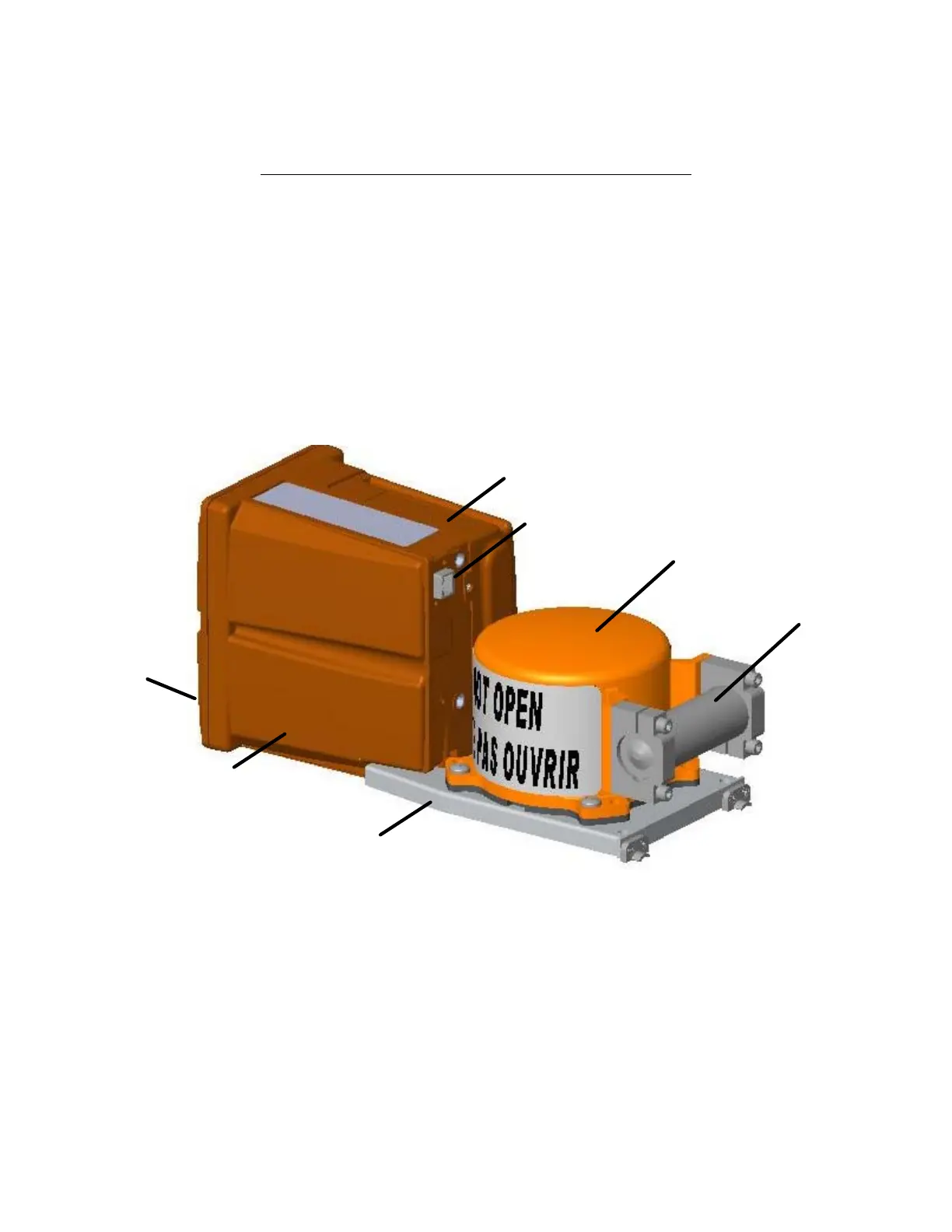

Figure 1.
Model FA5000 Cockpit Voice Recorder
