SERVICING WARNING WORK SAFELY
Where necessary disconnect from electricity and gas before starting.
Check range is safe when you have finished.

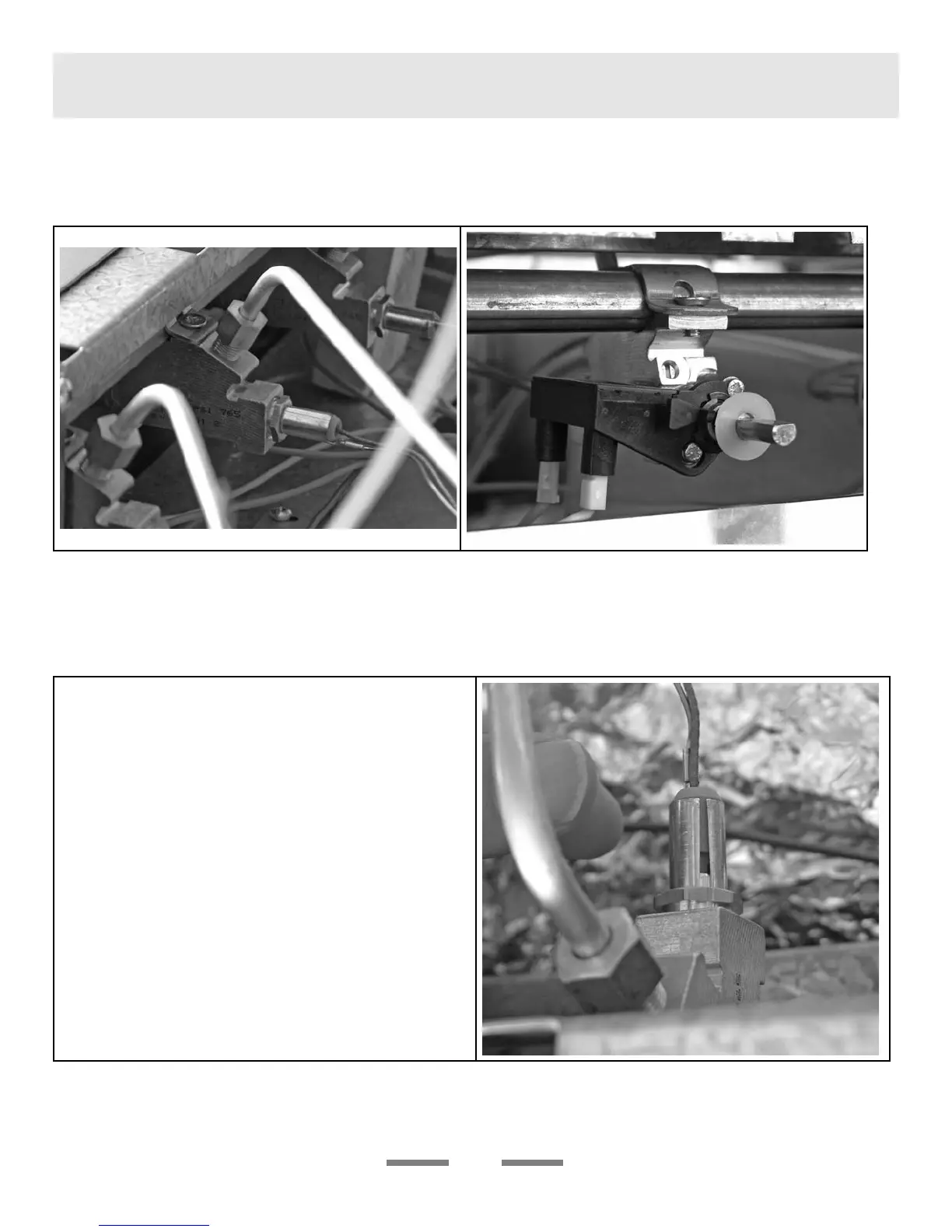

11 To Remove a Cooktop Valve
Remove the cooktop and control panel, see 1 and 2.
Unplug the FSD lead from the rear of the valve. Undo compression fi tting at the rear of the valve. Remove the
fi xings that secure the valve to the gas rail.
Disconnect the ignition switch wiring.
Remove the valve. Remove and discard the gasket seal. Fit new gasket seal to replacement valve.
Re-assemble in reverse order. Check the range is gas sound. Check cooktop ignition.
12 To change a Cooktop burner FSD
Move the range away from the wall - see ‘How To Move
the Range for Servicing’.
Remove the cooktop grates, cooktop accessories and
burner heads. Undo the large brass nuts and remove
the brass venturis and washers. Lift up the front of the
cooktop top and prop it up.
Unplug the hotplate FSD from the back of the burner
control valve.
