NeoTherm Boilers and Water Heaters

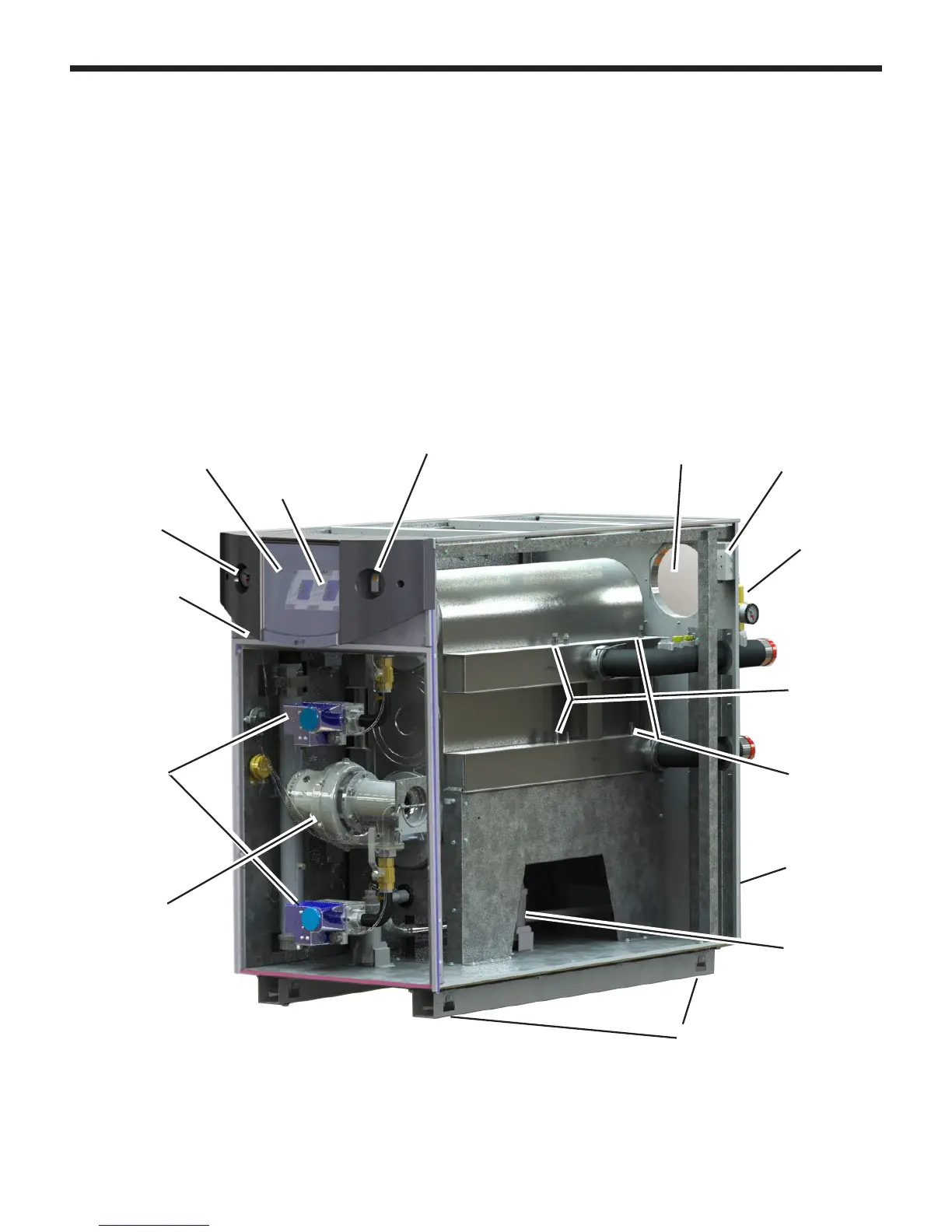

Page 5
Model 1700
Pressure and
temperature
gauge
Blower 1
(behind bezel)
Automatic
gas valves
Manual
gas valve
(on back)
Blower 2
Touchscreen
Protective Cover
(slides downward)
Power switch
Ducted air inlet
Electrical box
PRV and
ow switch
Outlet
temperature
sensors
Inlet
temperature
sensors
Condensate
trap
Leveling feet
The Touchscreen does have an internal battery for
back-up of the date and time settings. To access the
battery, the front panel and the Touchscreen must be
removed so that the small plastic door on the back of the
touchscreen can be accessed.
The battery is a CR2032 ‘coin type’ battery and has
an expected shelf life of 10 years.
*
*
