General
Number of channels 4
Peak total output both channels driven 10000 W
Peak output voltage per channel 150 V
Max. output current per channel 50 A peak
Max. Output Power 2 ohms 4 ohms 8 ohms 16 ohms
Per ch. (both ch.’s driven) 2500 W 2100 W 1300 W 660 W
Bridged per ch. 3) 5000 W 4200 W 2600 W
Performance with Gain: 35 dB and VPL: 150 V
THD 20 Hz - 20 kHz for 1 W <0.1%
THD at 1 kHz and 1 dB below clipping <0.05%
Signal To Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB
Frequency response (1 W into 8 ohms) +0/-3 dB 6.8 Hz - 34 kHz
Input impedance 20 kOhm
Common Mode Rejection (CMR) >54 dB, 20 Hz to 20 kHz
Output impedance @ 100 Hz 32 mOhm
Voltage Peak Limiter (VPL), max. peak output
VPL, selectable per ch. 150, 121, 101, 83, 70, 56, 47, 38 V
VPL, selectable when bridged
1)
300, 242, 202, 166, 140, 112, 94, 76 V
Voltage Peak Limiter mode (per ch.) Hard / Soft
Gain and Level
Amplifier gain selectable (all channels)
1)
– rear-panel switches
23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain 35 dB
Level adjustment (per ch.) Front-panel potentiometer, 31 position detented from -inf to 0 dB

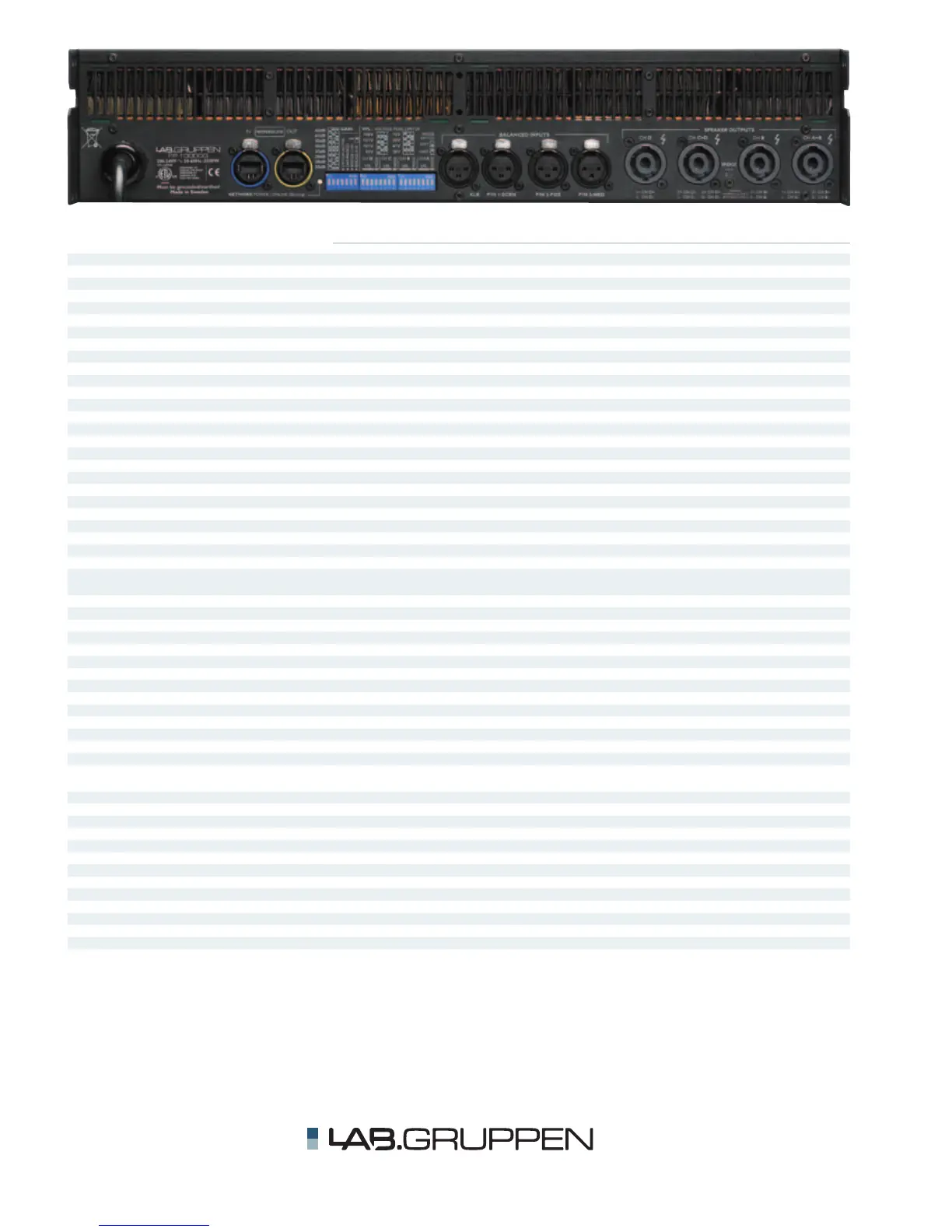

Connectors and Switches
Input connectors (per ch.) 3-pin XLR, electronically balanced
Output connectors (per ch.) Neutrik speakON or Binding Posts (must be specified upon order)
Output bridge mode per two ch.’s A+B - Ch. A is signal input source
NomadLink network On board, 2 x RJ45 etherCON
®
connectors, IN and OUT
Intelligent fans (on/off) Yes, depending on presence of output signal
Power on/off and Remote enable on/off Individual switches on front-panel
Cooling Two fans, front-to-rear airflow, temperature controlled speed
Front-panel indicators:
Common NomadLink network; Power Average Limiter (PAL)
2)
; Power on
Per channel
Signal present / High-impedance; -20 dB, -15 dB, -10 dB and -4 dB output signal;
Voltage Peak Limiter (VPL); Current Peak Limiter (CPL); Very High Frequency (VHF); High temperature; Fault; Mute
Power
Operating voltage, 230 V / 115 V nominal
4)
130-265 V / 65-135 V
Minimum power-up voltage, 230 V / 115 V 171 V / 85 V
Power Average Limiter (PAL)
2)
Yes
Soft start / Inrush Current Draw Yes / max. 5 A
Mains connector 230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock
Dimensions W: 483 mm (19”), H: 88 mm (2 U), Overall D: 396 mm (15.6”), Mounting D: 358 mm (14.1”)
Weight 12 kg (26.4 lbs.)
Finish Black painted steel chassis with black painted steel / aluminum front
Approvals CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
Note 1): Automatic -6 dB gain compensation when bridging channels.
Note 2): PAL can reduce the maximum output power to keep the power supply operating safely, and/or to prevent excessive current draw tripping the mains breaker.
Refer to the FP+ Operation Manual section 7.5.8 Power Average Limiter (PAL) for more information.
Note 3): The amplifier will be fully operational at bridge-mode 2 ohm loads, but due to physical constraints in the construction, the max. output power will not be
significanty higher than running individual channels and therefore this mode of operation is not
recommended.
Note 4): Separate 230 V or 115 V versions available. Not selectable on the amplifier.
All specifications are subject to change without notice.
