7. Installation
PLM+ SERIES Quick Start Guide rev 3.0.2
19
7.2. Mounting
PLM+ is made for mounting in 19 inch racks. Four screw holes are available for attachment of the amplifi er to the
racks front rack rail. This device has no top or bottom vents; therefore, units may be stacked directly on top of
one another. Suffi cient space should be available at the rear to accommodate connectors and cables. In addition,
allowance must be made for cable or loom bends within a rack.
7.2.1. Rear Mounting
Two rear support brackets, along with associated mounting hardware, are included with the PLM+ device. It is
strongly recommended that these are used wherever possible. Fit the brackets to the vertical rails at the rear of
the rack. The support brackets are reversible and may be fi tted to point either to the front or rear of the rack; the
proper orientation depends on the rack depth and position of the rear rack rails.

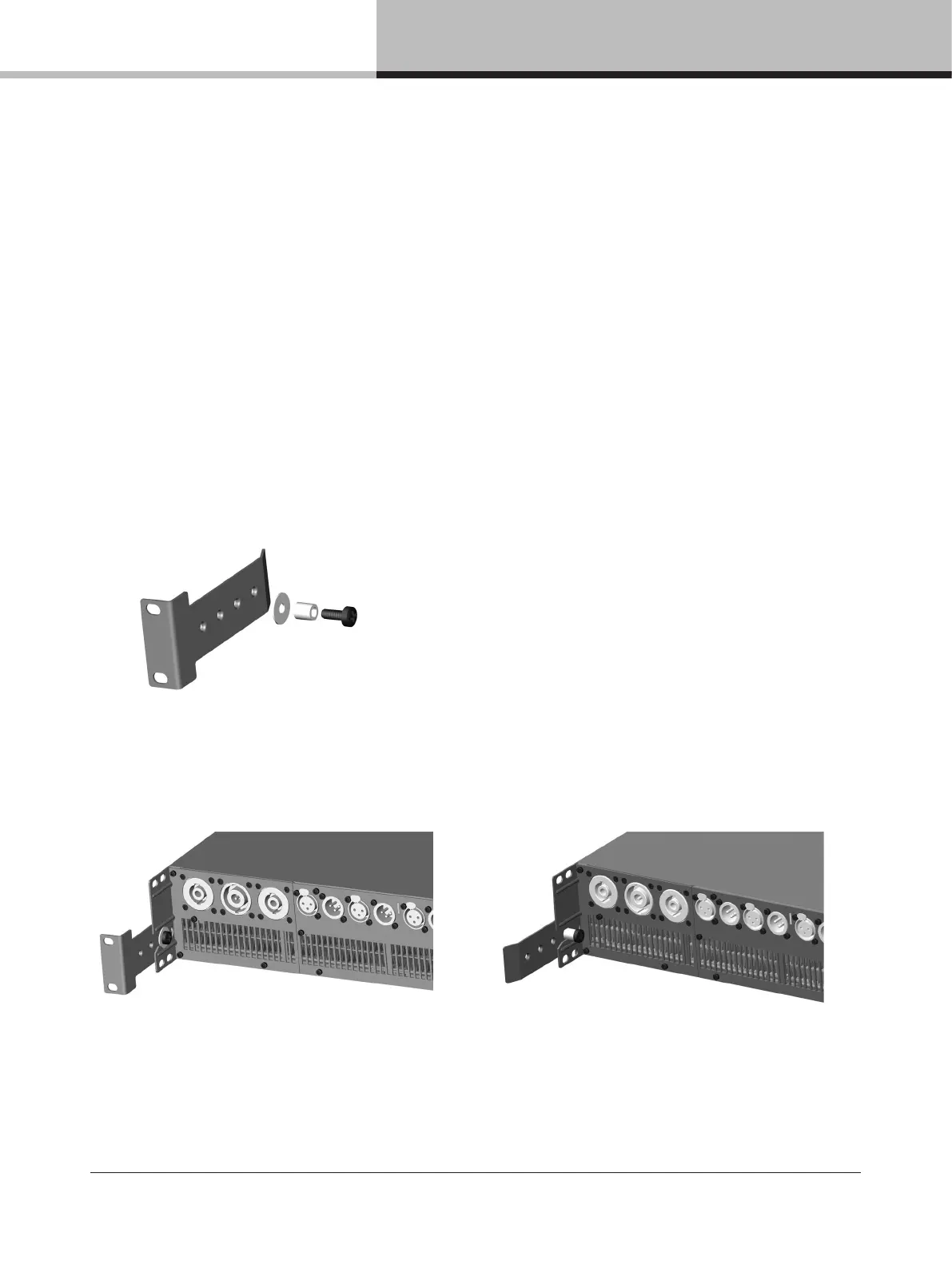

Rear support bracket with mounting hardware
Rear support bracket mounted for fi xed Rear support bracket mounted for removable
installation and bracket pointing forward installation and bracket pointing towards back
