Lab.gruppen PLM+ Series User Manual

13. Quick Start Tutorial
30
PLM+ SERIES Quick Start Guide rev 3.0.2
14. The B module is already a CL1way as default and can be used to drive the sub.
15. Tap Store/Recall EXIT to return to the Modules Menu.
16. Ensuring Module A (or any other module that you want to control) is selected (yellow border), tap I/O Confi g.

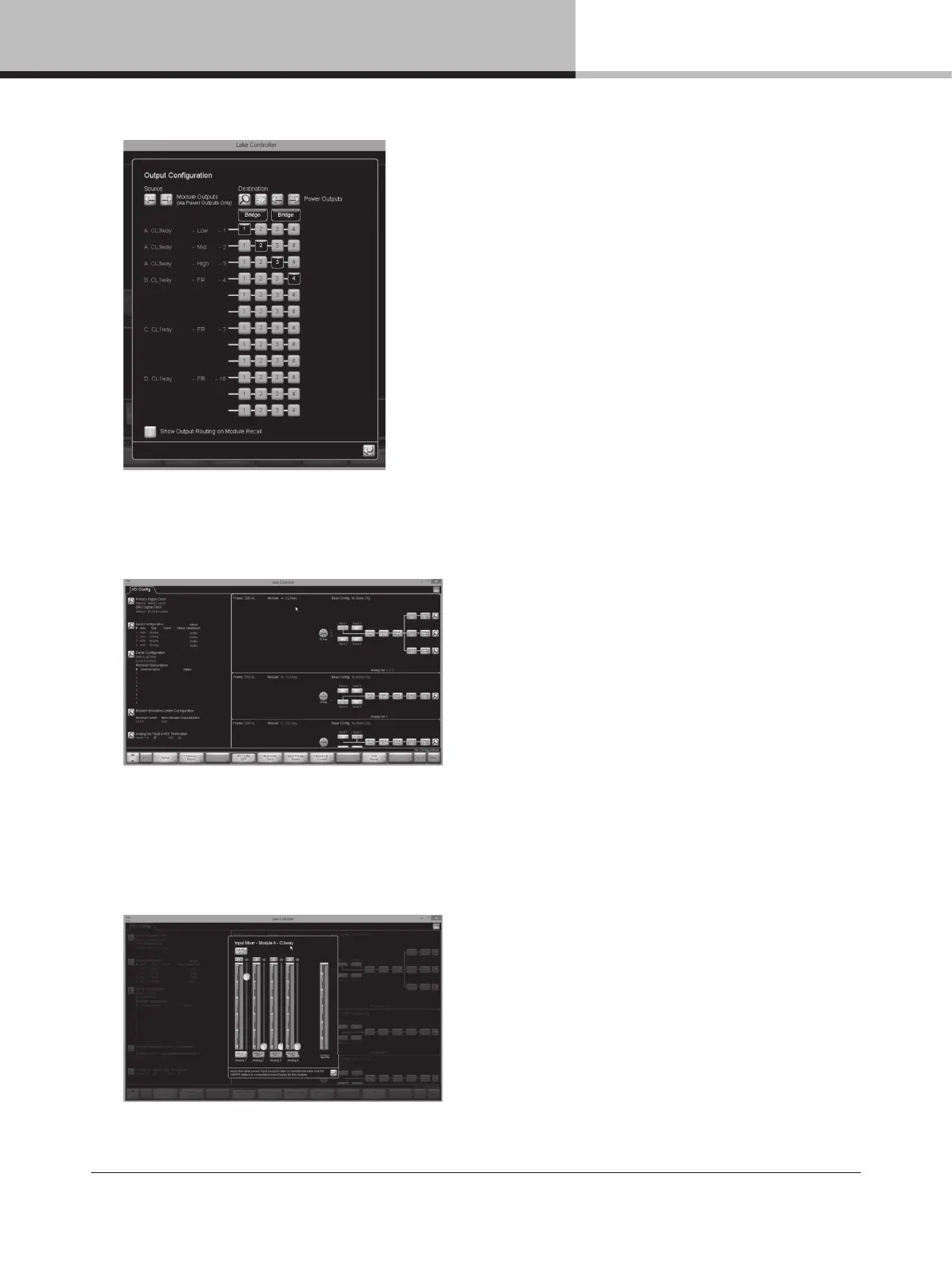

17. The right side of the I/O CONFIG screen displays a block diagram for the Modules. Tapping the different blue
blocks will access the confi guration screens for Input mixer, Levels, Input EQ, Delay and Output EQ/Crossover
respectively. The magnifying glass at the far right end accesses the output confi guration. (Note: Tapping the
blue return button (left arrow), or the EQ/Levels EXIT button in the menu bar returns to the I/O Confi g screen
from the various confi guration screens.)
Input Mixer Confi guration - Drag sliders and tap ON/OFF buttons to control input mixer settings.

Lab.gruppen PLM+ Series Specifications

General

Total Output Power	Up to 20, 000W
Networking	Ethernet
DSP	Yes
Input Connectors	XLR
Output Connectors	Neutrik speakON
Dimensions	Varies by model
Weight	Varies by model
Protection	short circuit, DC
