Z-Z-ELS-100 LABEL SENSOR ADJUSTMENT
*Note that the control must be programmed for the label sensor to work properly. The Z-Z-ELS100 label sensor
must be set to the "Clear" setting in the Label Sensor menu.
LABEL PLACEMENT IN RELATION TO THE PEELER PLATE
Loosen the lock screw on the photo eye rail assembly and slide it forward or backward on the rails to achieve placement
of the label with the peeler plate nose (+/- 1/32). After adjustment, cycle the labeler to verify new label placement.

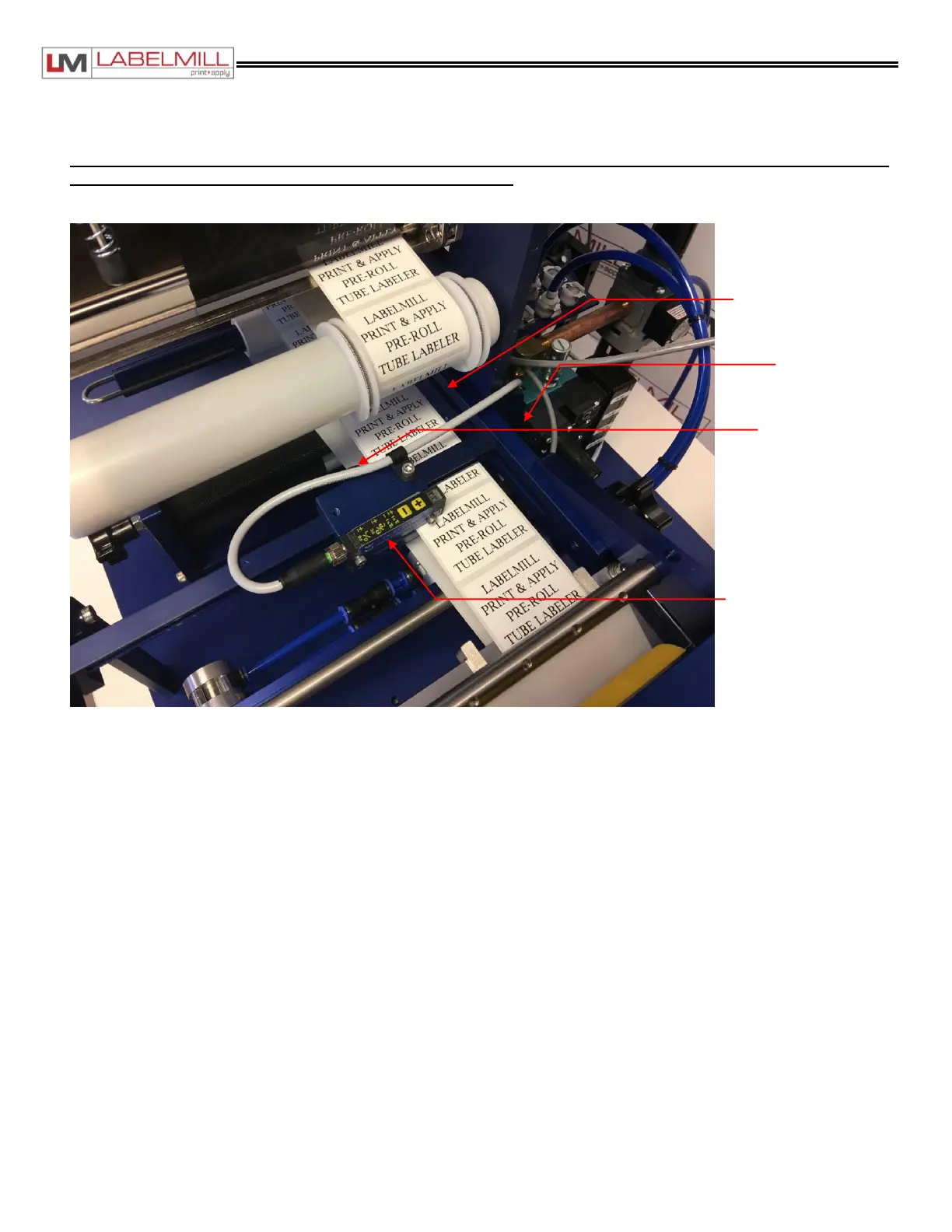

Label Sensor
Assembly
Sensor Adjustment
Rails
Label Sensor
Thumbscrew
Label Sensor
Rail Thumbscrew
