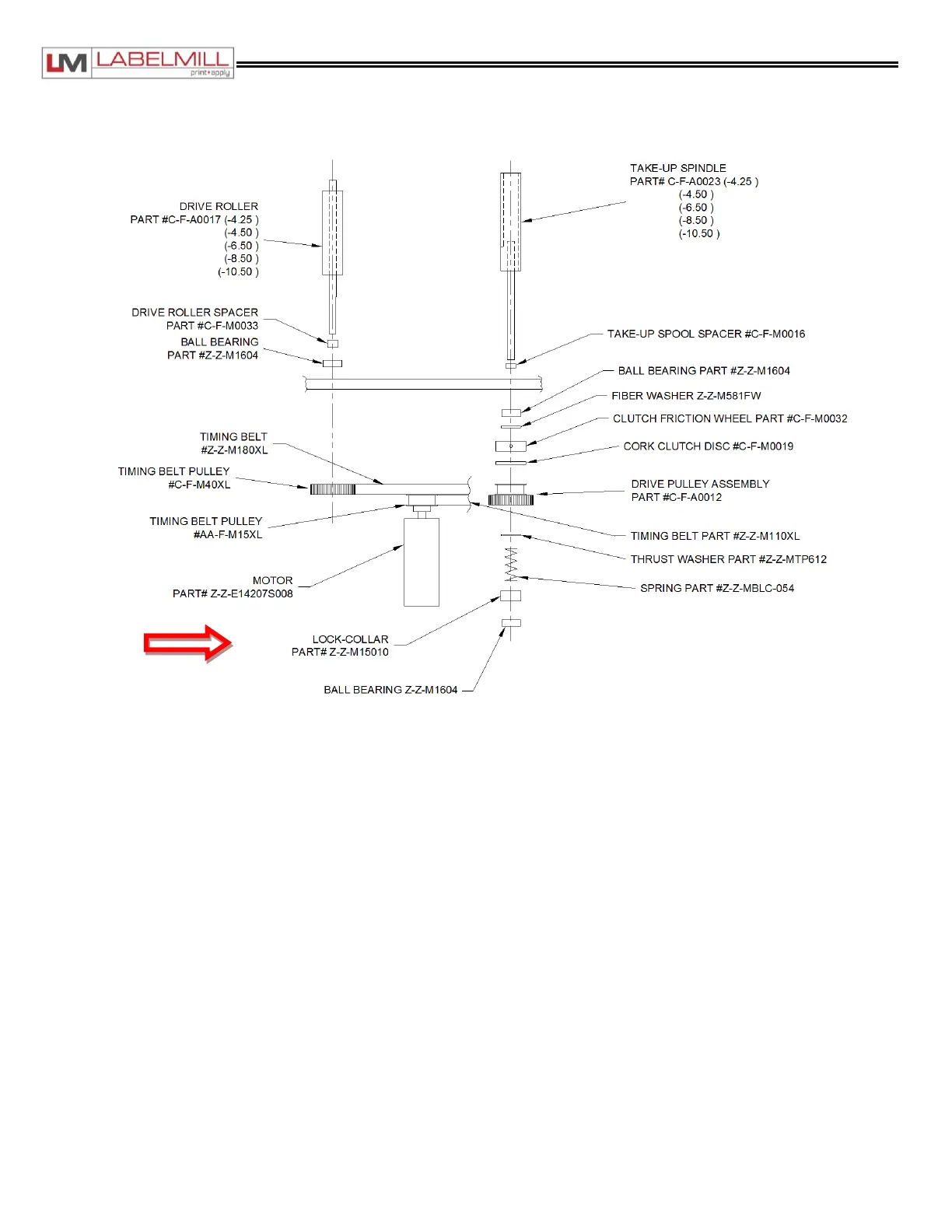

DRIVE MOTOR PACK
To reduce waste web tension, move the lock collar 1/32" away from the take-up spool. To increase web tension, move
the lock collar 1/32" toward the take-up spool.
CAUTION! Too much web tension may cause web breakage, label drifting, or premature failure of the take-up spool
assembly.
