LabelMill LM1012 - Input & Output Description

LM1012TTS Table-Top Label Applicator System
USER'S MANUAL
Made in the U.S.A.
© 2022 LABELMILL
01/01/2022 Model LM1012TTS
Page 35
DESCRIPTION OF I/O
LEGEND
24V OPT: 24V OPTO INPUT WITH INTERNAL 24V COMMON
OH: HIGH CURRENT OUTPUT Rated @ 500ma
All user inputs and outputs are “SINKING” type. Example in order for a status light to illuminate for “Run Status Ok” the
light should be wired between pins #2 & #8 on the “Light Bar/Aux.” Connector.

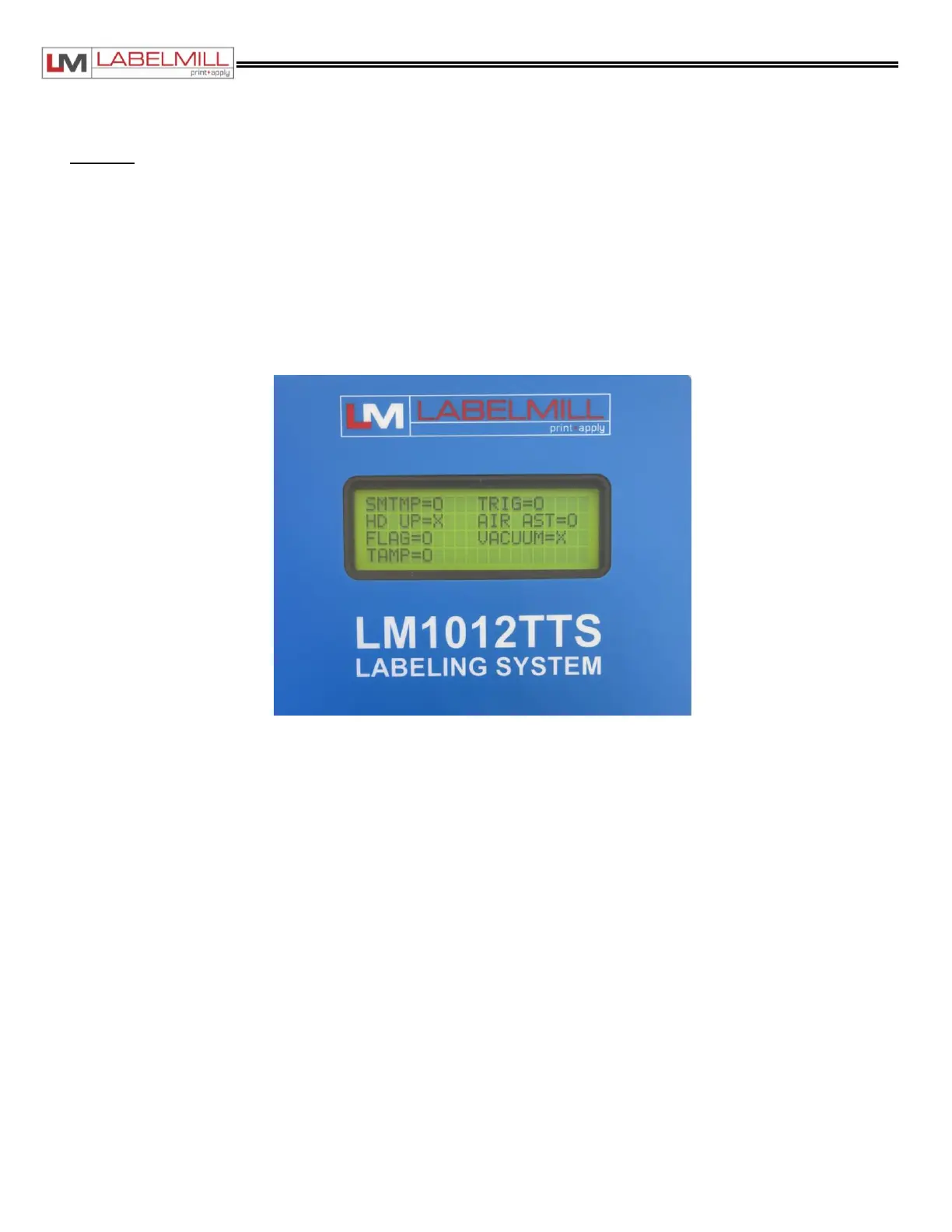

System I/O status can be viewed through the "I/O Monitor" menu on the system control (shown below).
X=On
0=Off
