WEB ROUTING

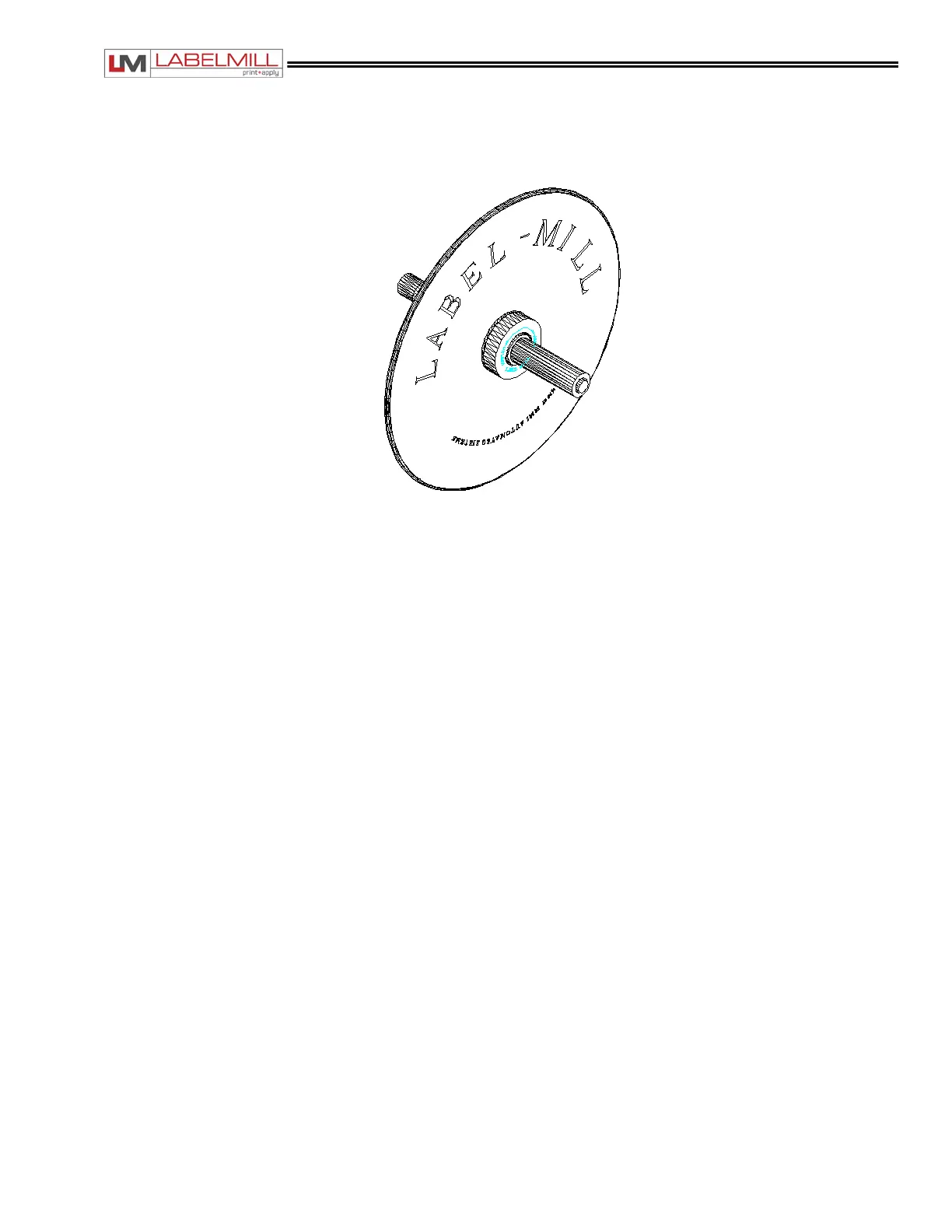

SPOOL LOCK REMOVAL: To remove the label storage spool (A), turn the spool lock counterclockwise until you
reach a stop. The spool will now slide off. To secure the spool, simply turn the spool lock clockwise until snug. DO
NOT over tighten!
2-02
