LabelMill LM3605 - Clutch Assembly Adjustment

LM3605 Print & Apply Label Applicator
USER'S MANUAL
Page 14 Made in the U.S.A.
© 2019 LABELMILL
12/01/2019 Model LM3605

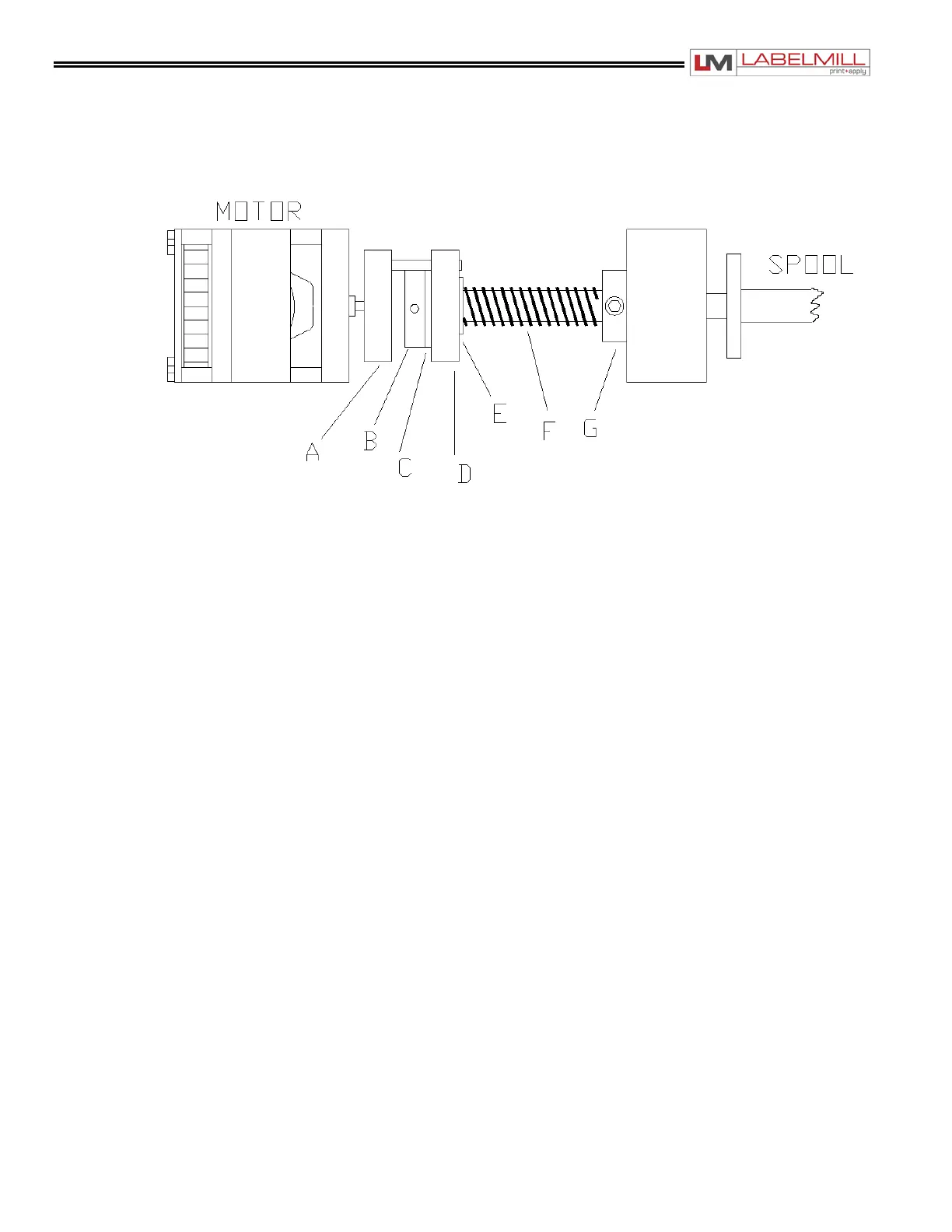

CLUTCH ADJUSTMENT
(A) DRIVE DOG
(B) SHAFT WHEEL
(C) FRICTION DISC
(D) PRESSURE PLATE
(E) THRUST BEARING
(F) PRESSURE SPRING
(G) TENSION ADJ. COLLAR
To increase waste web tension, move the shaft wheel (B) 1/32” toward the Spool. To reduce web tension, move
the shaft wheel (B) 1/32” toward the motor.
CAUTION…Too much web tension may cause web breakage, print drifting, or premature failure of the Take-
Up Assembly.
2-05
