LabelMill LM3605 - Take up Unit Assembly; Take-Up Unit Assembly

LM-3605 Dynamic Label Applicator
USERS MANUAL
Page 13 Made in the U.S.A.
© 2019 LABELMILL
12/01/2019 Model LM3605

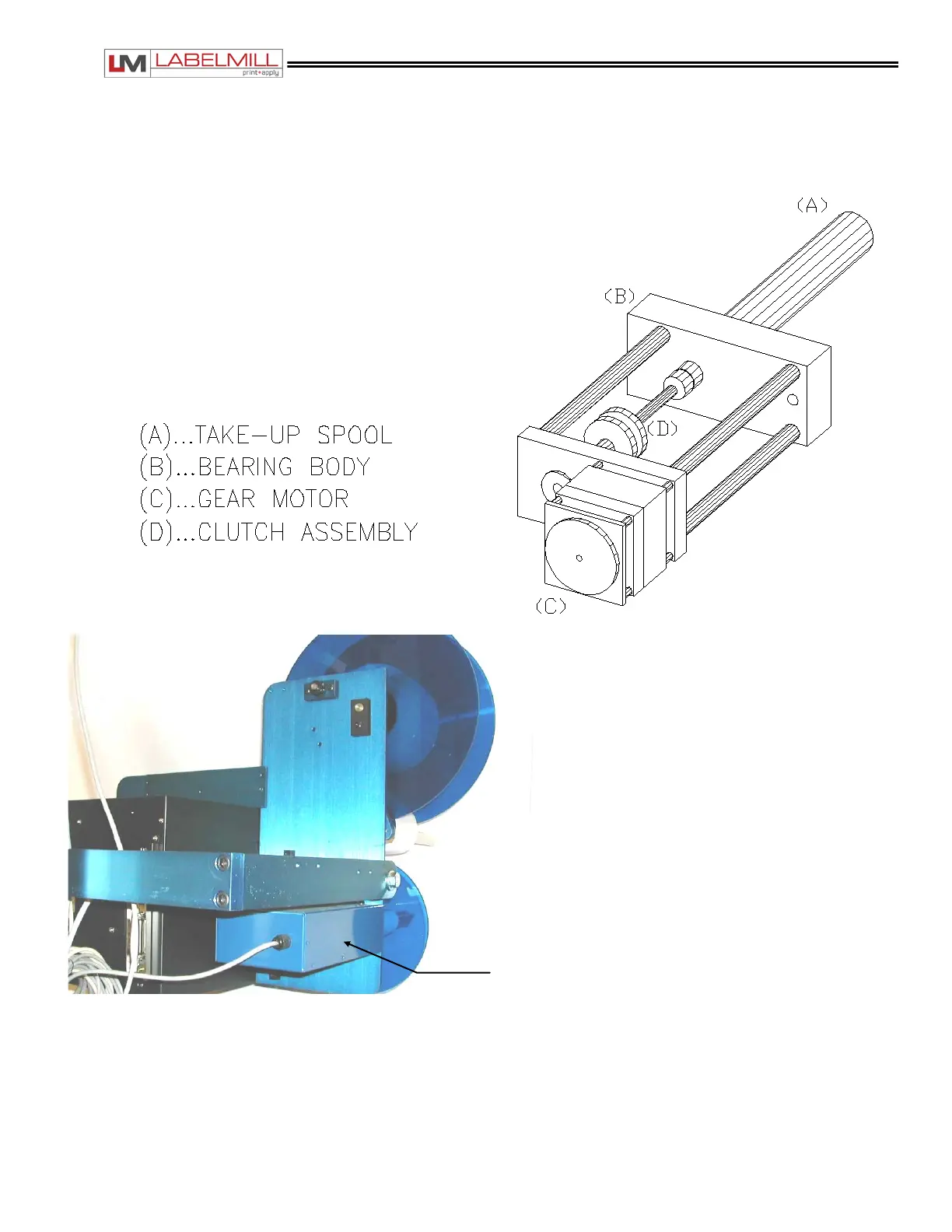

TAKE-UP UNIT ASSEMBLY
The Take-Up Assembly is located on the
backside of the main panel. To adjust the
clutch, the side panels must be removed
to gain access. To remove the Clutch
Assembly, you must first remove the
Web Take-Up Spool. The mounting bolts
for the Take-Up Assembly can be found
directly behind the plastic spool.
WARNING!!! Be sure power is off
before performing any service.
2-04
TAKE-UP
ASSEMBLY
