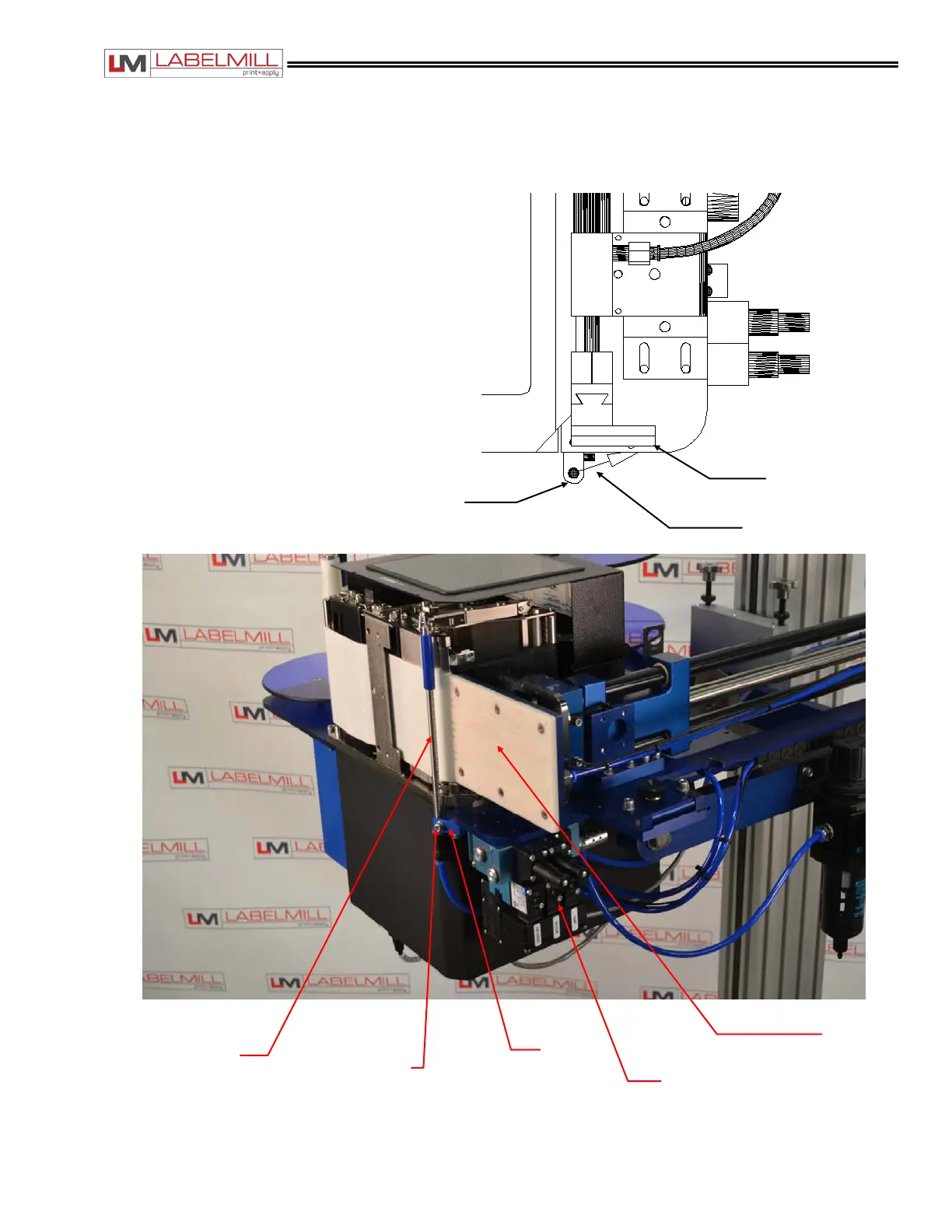

AIR ASSIST TUBE
2-10
The Air Assist Tube must be adjusted to
clear the trailing edge of the printed labels
and the Label Platen. An adjustment screw
is used to adjust the position of the air
holes in relation to the labels. An angle of
45 deg
rees is required.
One slot is provided to make the
appropriate adjustments desired.
Air Assist
Tube
Label Platen
Airflow
Mount
Bracket
Air
Assist
Tube
Clamp screw
Label
Platen
Valve Pack
