LM3605 Print & Apply Label Applicator
USER'S MANUAL
Page 22 Made in the U.S.A.
TAMP UNIT OPERATION
• Tamp Duration
Tamp duration is used to provide an on timer for the solenoid valve on the main tamp cylinder. The delay on
standard versions can be from 0 to 30.000 seconds in 1/1000 of a second accuracy. This allows for easy
change over from one product height to another without physically changing the height of the unit. It also
allows for precise adjustments of how close the tamp head comes to the product. (refer to page 3-08)

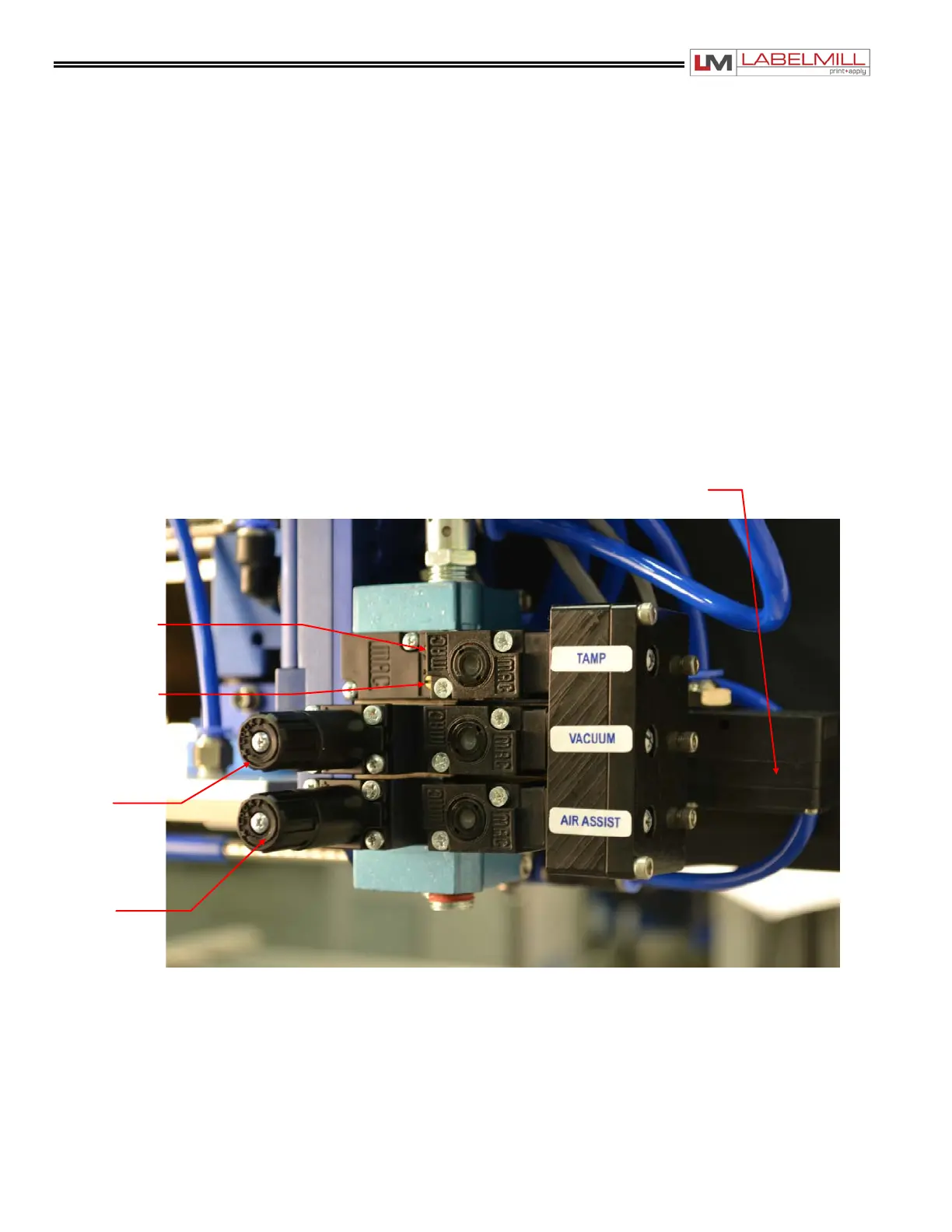

There is flow control adjustment for the valves. It may be necessary to adjust the flow rate on the tamp solenoid
for optimum performance after installation. The adjustment is performed as shown below. They are set at the
factory. The regulators on the vacuum, air assist, and flag valves are for increasing or decreasing the air pressure
as necessary for proper operation. Note: Flag Regulator not shown below – only supplied with flag applicators.
2-13
Pump
(Brass Screw)
Regulator
(Brass Screw)
