3.3 Control Panel: Standard set up

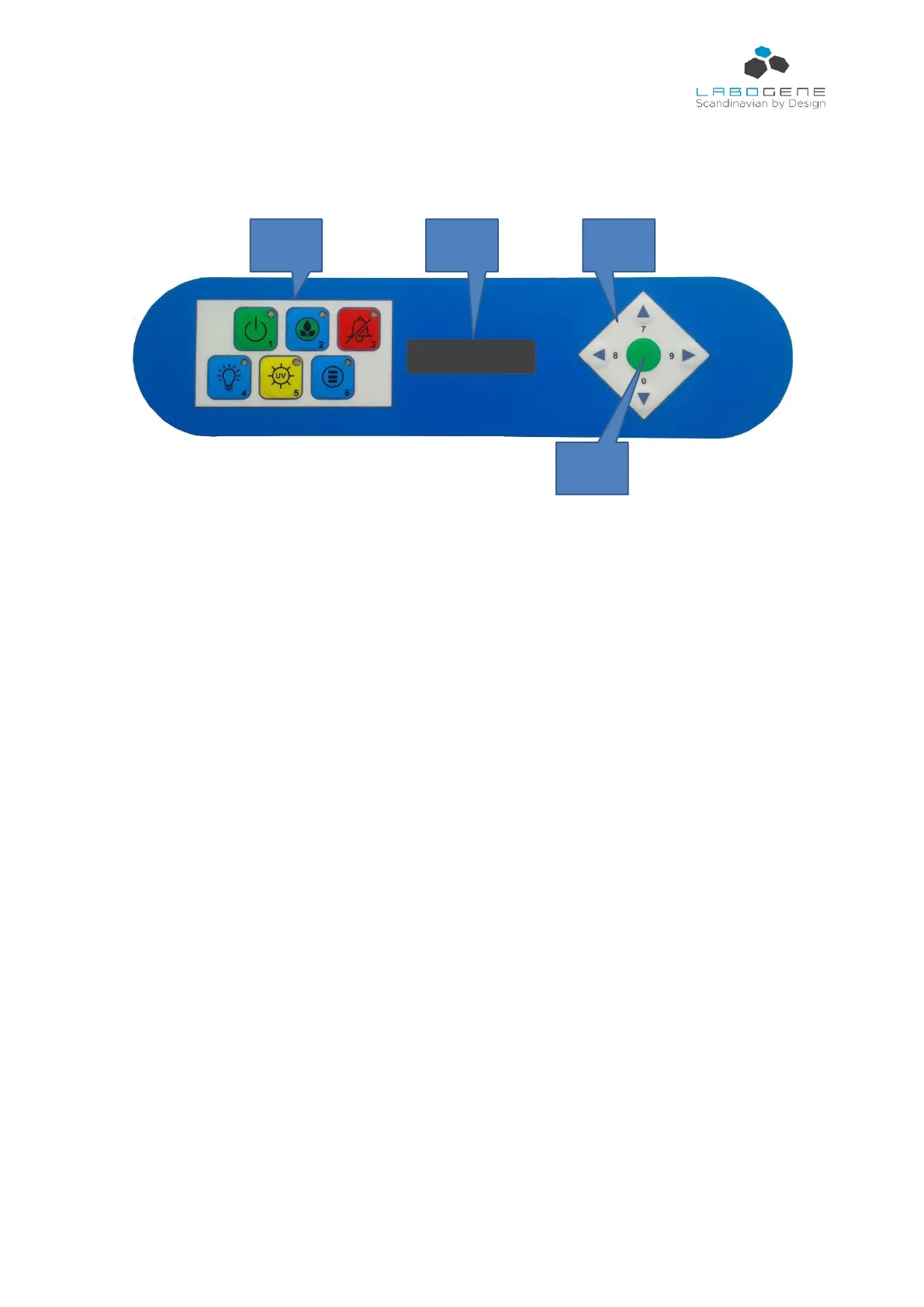

All functions are controlled by an electronic card with microprocessor via the control panel with
display shown below.
3.3.1 Control panel
1. Button 1 with green LED light to select the fan ON/OFF at normal velocity. The green light
indicates that the fan is running at normal velocity, and that conditions are safe. During start-
up the low flow alarm will be active and the LED only switched on when the conditions are
safe for working in the cabinet.
2. Button 2 with blue LED to select the fan ON/OFF at reduced velocity. Can be adjusted to
any level desired for individual requirements (See Service menu). When switching to
reduced velocity the low flow alarm is activated and the light in the cabinet is turned off to
indicate not safe conditions.
3. Button 3 with red LED. Alarm indicator with blinking red light and acoustic alarm. Press the
button to silence the acoustic alarm.
4. Button 4 with blue LED for normal light ON/OFF.
5. Button 5 with yellow LED to select ON/OFF of UV light (optional). The timer for the light is
set in the user menu (See User menu).
6. Button 6 with blue LED can be connected to an internal plug in the chamber for remote
on/off of the plug/gas resettable valve.
7. Button 7: Window open (upwards movement).
8. Not active: Only for programming/navigation.
9. Not active: Only for programming/navigation.
10. Button 0: Window close (downwards movement).
11. Blue button “ENTER”.
