Ultimate-cell Stackable Shaking Incubator V2017.2
16

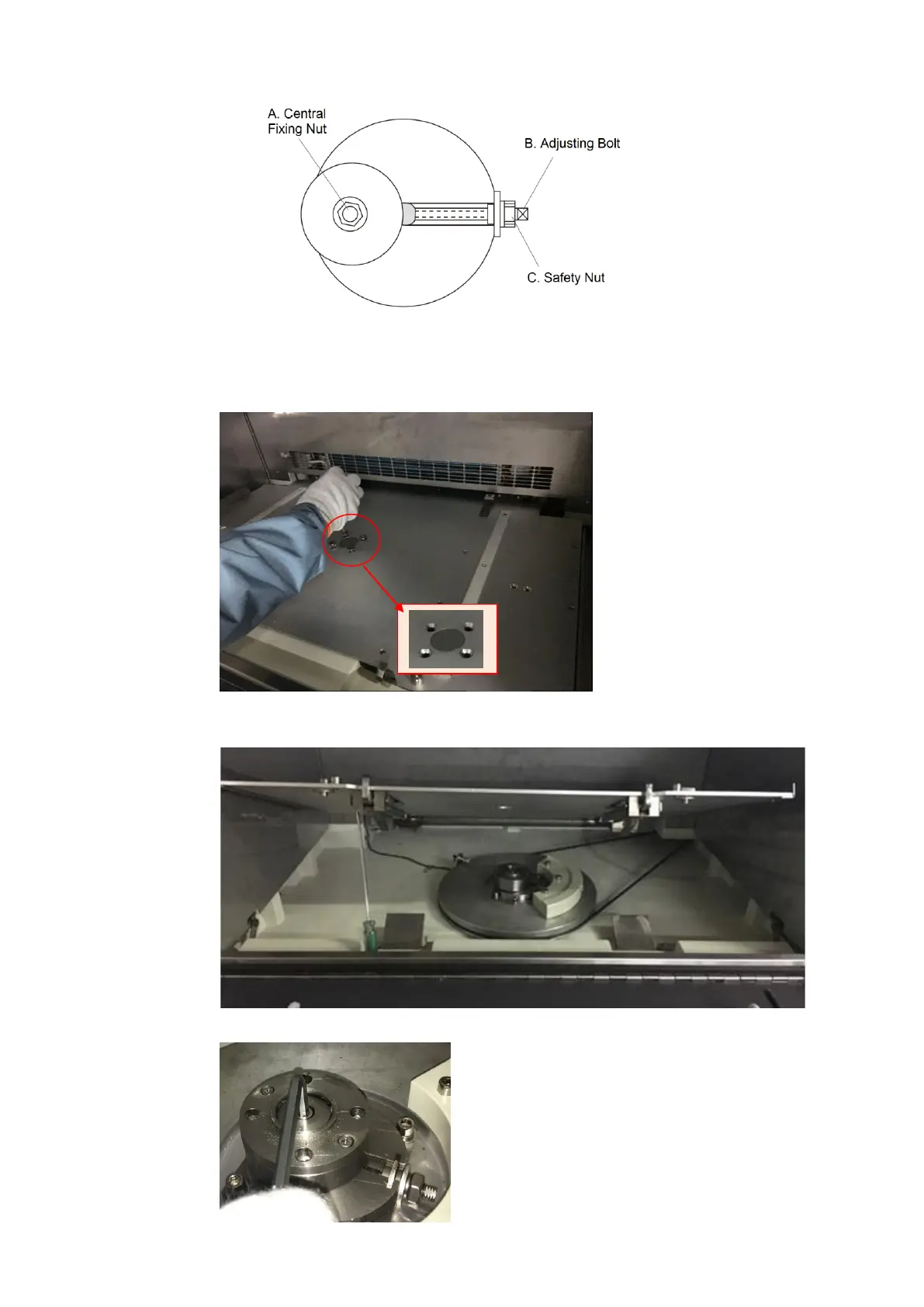

5.10.1 Tools needed: 17*19 spanner, 8*10 spanner, Allen key 6mm, Allen key
8mm
5.10.2 Turn off the unit, open the glass door, pull out and remove the shaking tray,
5.10.3 Use 6mm Allen key to remove the four Allen screws from the base tray.
5.10.4 Lift the base tray and support it with a long object, until seeing the center of
the shaking mechanism (as illustrated)
5.10.5 Use the 8mm Allen key to loosen the (A) central Allen screw.
To Next Page
