EQUIPMENT
31
1: Caution
2: Ventilate for four minutes
3: Switch on
Meaning of the symbols:
ATTENTION
The tanks may contain zones of leftovers
that the pumps cannot reach due to the
boat's trim or the design of suction tappings.
You are advised to maintain a 20% fuel reserve.

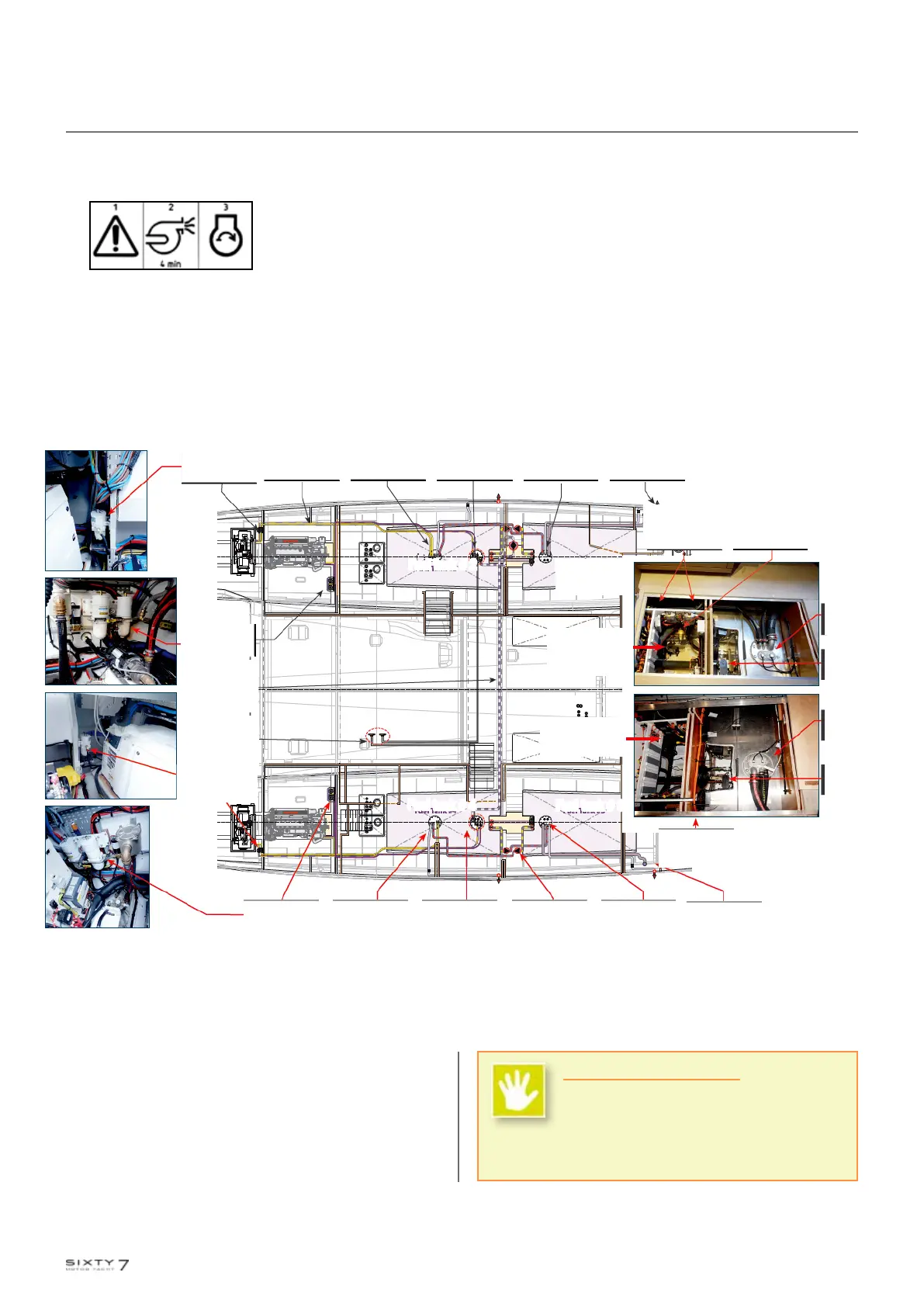

4.1.2.Fuel tanks: 4 x 1375 litres DIESEL
Fuel consumption is via the aft tank.
Fuel can be transferred between the port and starboard
tanks and between the forward and aft tanks.
Generator fuel
filter (option)
Supply and
return circuits
under the
floorboards
Access to the aft
tank with fuel
return circuit
and fuel transfer
pumps
Vent for the port
tanks
Fuel-filler flap
for the forward
tank
Access to the aft
tank with fuel
return circuit
and fuel transfer
pumps
One-way transfer
pumps P04-P05
under the floorboards
Two-way transfer
pumps P01
under the floorboards
Fuel transfer and
filling pump valves
in the bilge
Fuel transfer and
filling pump valves
in the bilge
Deck filler for the
forward tank
Remote controlled
valve RBS01
Remote controlled
valve RBS02
Deck filler for the
forward tank
One-way transfer
pumps P02-P03
under the floorboards
Vent for the
starboard tanks
Forward tank deck
filler with level
indicators
Fuel-filler flap for
the forward tank
Access to the aft
tank with fuel supply
circuit and fuel
transfer pumps
Access to the aft
tank with fuel return
circuit and fuel
transfer pumps
Generator fuel
filters
Generator fuel
filter (standard)
Fuel supply
emergency cut-off
pull-rods
Fuel transfer circuit
between the port
and starboard aft
tanks
Engine fuel
filters
Fuel tank # 2 Fuel tank # 1
Fuel tank # 4
Fuel tank # 3
