CL 2 linear Sensor / Ram - starboard
Power supply
Client supply
Alarm
(Lamp)
Client supply
Pilot computer
(not supplied)
Electric wheel
CL 1 linear Sensor / Ram - port
Hydraulic unit / Proportional distributor

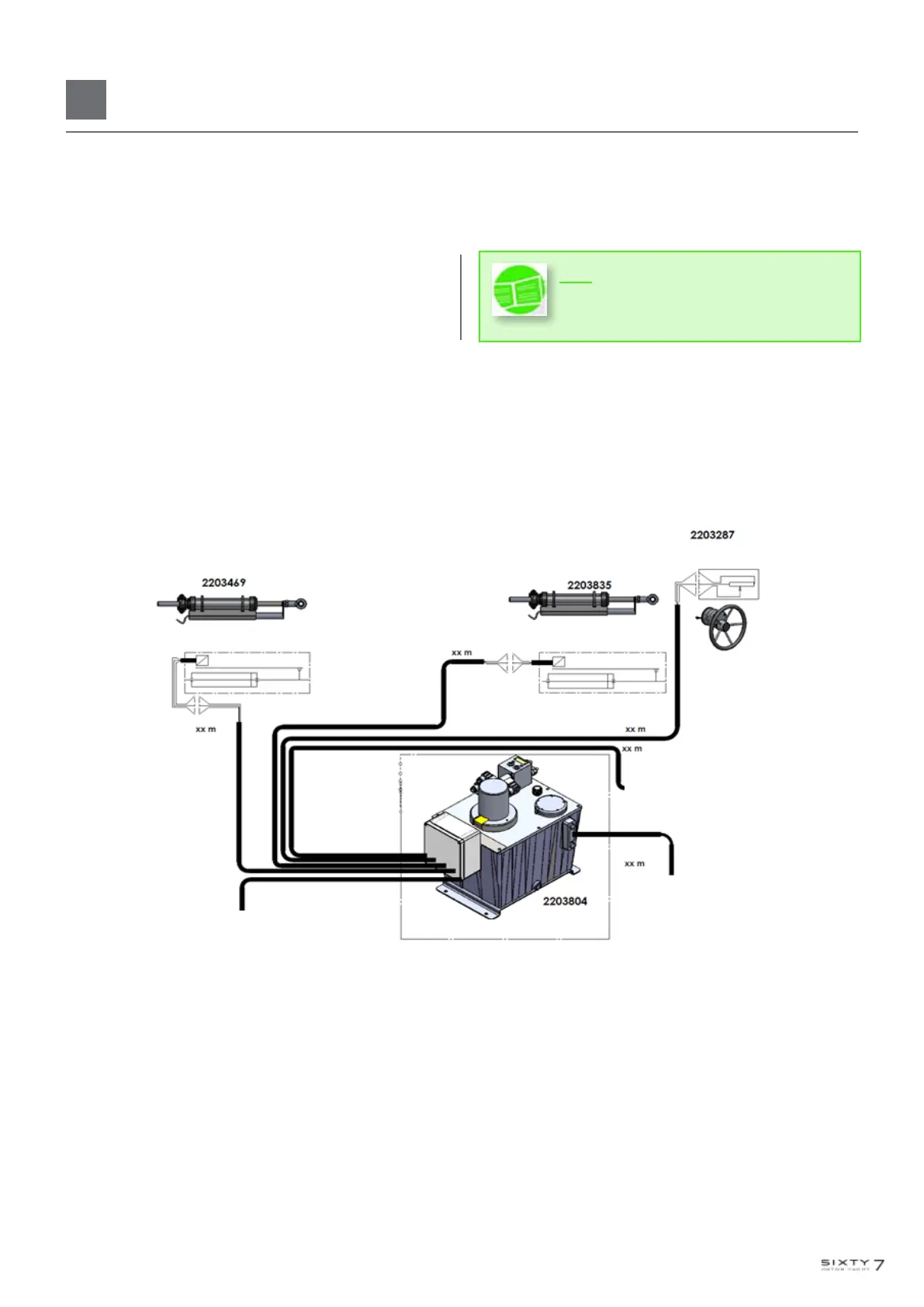

4.3.STEERING SYSTEM
4.3.1
.General description
4
The steering system comprises an electrohydraulic unit.
This unit controls the steering by sending an electric signal
via the helm station wheel.
An electronic box connects to the autopilot system.
34
ADVICE - RECOMMENDATION
Hydraulic fluid must be non-flammable or
have a flash point of at least 157 °C.
