MOVEABLE CASTER & MACHINE
LEVELING

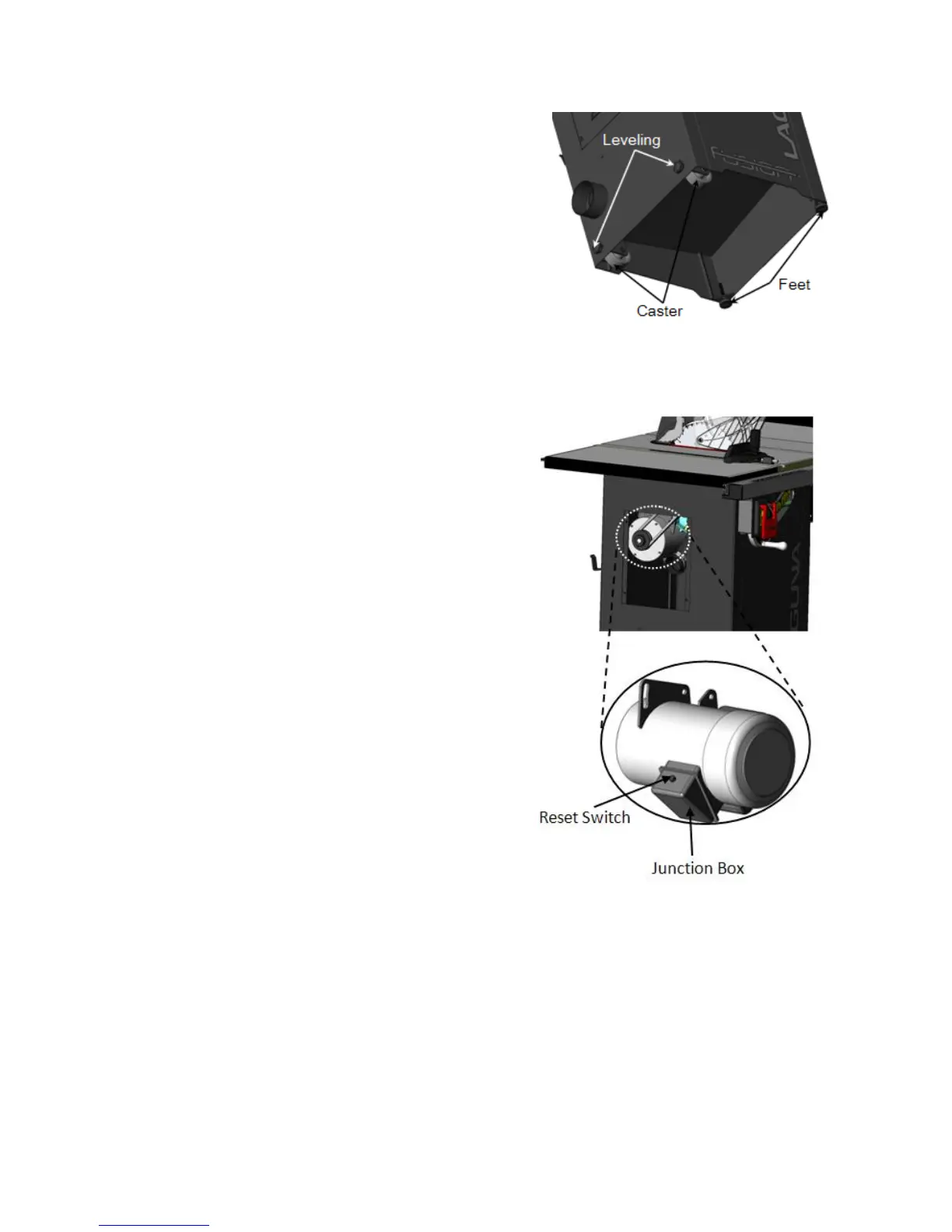

The machine is supplied with (2) casters with
leveling adjustors and (2) adjustable feet. To
level the machine adjust the leveling adjustors
on the castors using a open wrench and adjust
the leveling feet.
RESET PROTECTOR
Your saw comes equipped with a
manual-reset thermal-overload protector. It is
designed to open the power line circuit when
the motor temperature exceeds a safe level or
when motor is overloaded, or when a low
voltage condition exists.
NOTE: This motor should be blown out or
vacuumed frequently to prevent sawdust
buildup which can interfere with normal motor
ventilation.
Once the motor has cooled
to
a
safe
operating
temperatur
e,
r
eset
the thermal overload
protector by pushing the red button on the front
of the junction box.
An
audible click will indicate
the thermal overload protector is reset. Once the
switch button is reset, the saw may be started
and operated
as
normal.
N
OTE :
I
f
t
he
reset
b
ut
to
n wo
n't
click into
p
lace
immediately,
the motor is still
too
hot
and must be allowed
to
cool.
Fr
equent
“blowing”
of fuses or Tripping of
circuit br
eakers
may result if:
Motor is overloaded. Overloading can
occur if a work piece is fed too rapidly or if
the saw is misaligned.
Motor circuit is fused differently from
recommendations. Always follow
instructions for the proper fuse/breaker.
Do not use a fuse/breaker of greater
capacity without consulting a qualified
electrician.
Low vol
t
a
g
e
.
A
l
t
hough
t
h
e
mo
t
or is
d
e
sign
e
d
f
or o
p
e
r
a
t
ion on the voltage and
frequency specified on the motor, normal
loads will be handled
safely
on voltage no
mor
e
than ten percent above or below that
figur
e.
Heavy
loads, however, requir
e
that
voltage at the motor terminals are
equal
to
the voltage specified on the motor.
N
OTE :
A
lw
a
ys
c
h
e
c
k
t
h
e
c
onn
e
c
t
ions,
t
h
e
lo
a
d
a
n
d
t
h
e
su
pp
ly
circuit,
whenever
the
motor
fails
to
perform satisfactorily.
