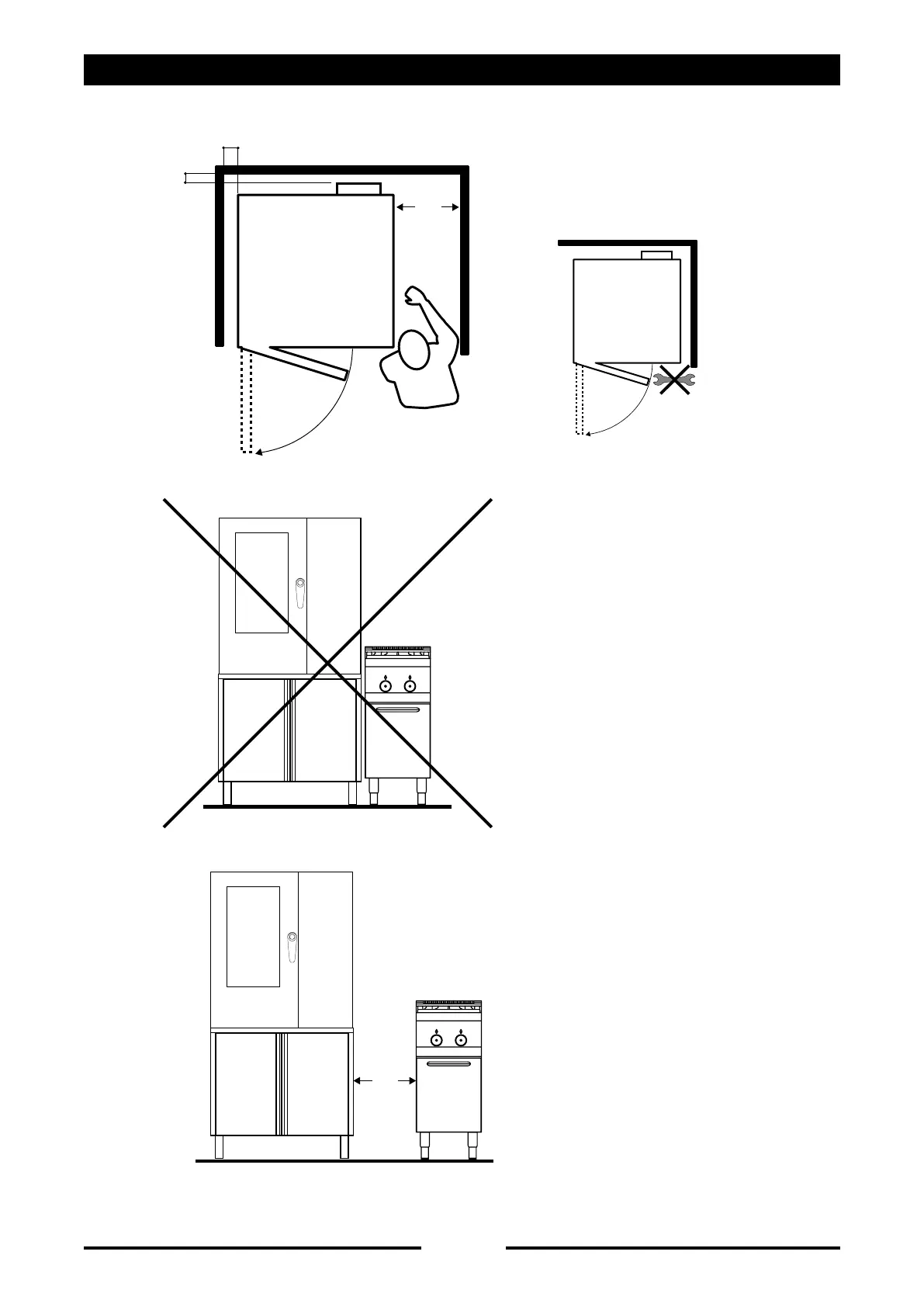

DISTANCES TO OBSERVE
Keep a distance of 500mm/20inch
on the right-hand side in order to
carry out maintenance work.
DO NOT INSTALL APPLIANCES
WITH A SOURCE OF HEAT ON
THE RIGHT-HAND SIDE OF THE
OVEN
Minimum distance from sources of
heat on the right-hand side:
400mm/15,7mm.
CAUTION: if the ambient
temperature to the right of the
appliance is too high, the oven will
stop for reasons of safety.
For installations different to those
described, consult the
manufacturer/distributor of the
appliance.
500mm
20inch
25mm / 0,9inch
50mm / 1,9inch
400mm
15,7inch
17 • INSTALLATION DIAGRAMS
