Lake Shore Model 421 - Model RM-2 Dual Rack-Mount Shelf

Lake Shore Model 421 Gaussmeter User’s Manual
Accessories and Probes 5-13
1. Use 5/64 inch (2 mm) hex key to remove two 6-32 x 1/4
black button head screws from side of Gaussmeter.
2. Place Gaussmeter on shelf.
3. Use 5/64 inch (2 mm) hex key to reinstall two 6-32 x 1/4
black button head screws through side of rack into
corresponding holes in the side of the Gaussmeter.
Installation Procedure
Refer to
Installation
Procedure
RM2_Dual_Rack.eps

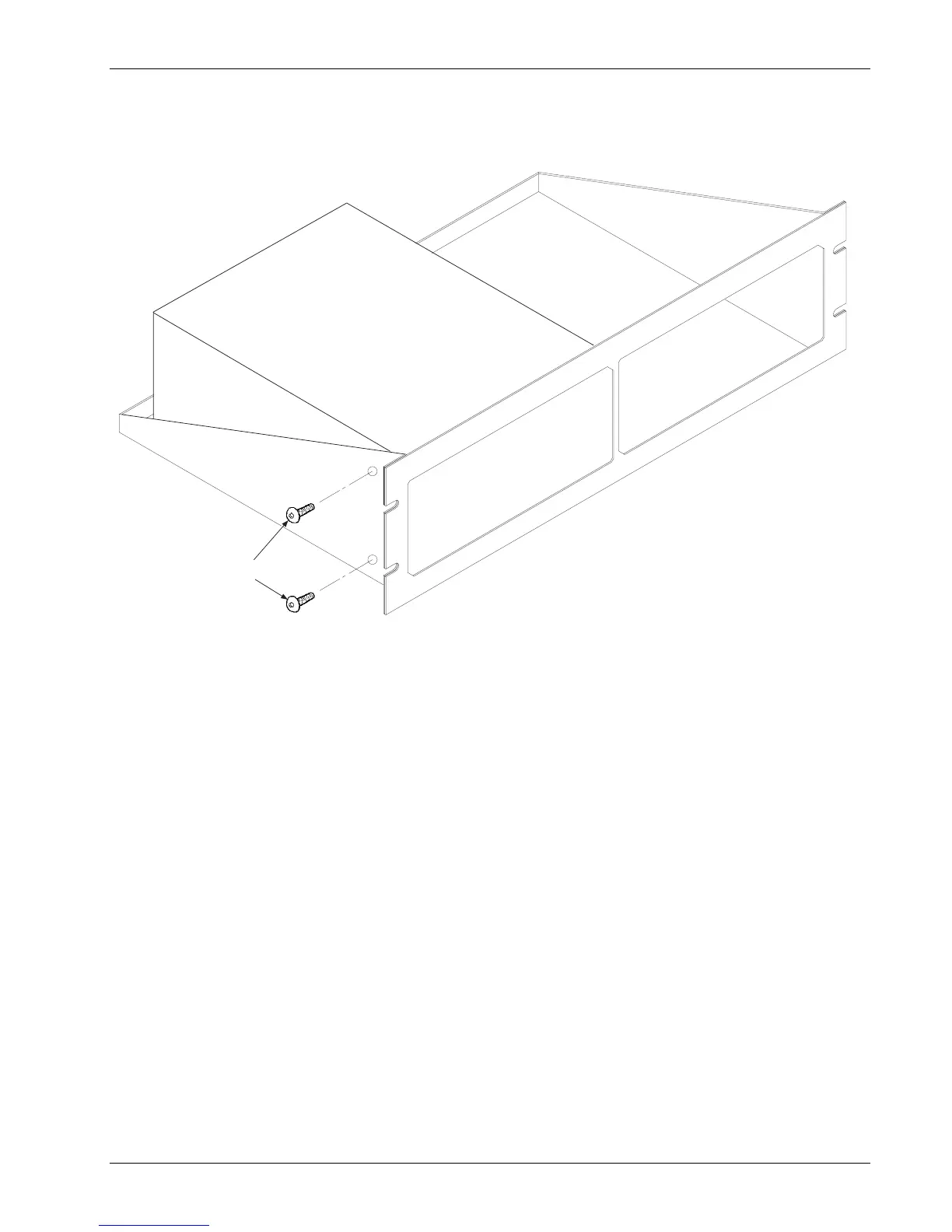

Figure 5-15. Model RM-2 Dual Rack-Mount Shelf
