Lamona LAM9501 - Air Extraction System Assembly; System Modes and Installation

44
www.howdens.com
(A) Recirculation air
(B) Extraction air
Plinth
Vent
APL 2807
APL 2000
LAM 2013

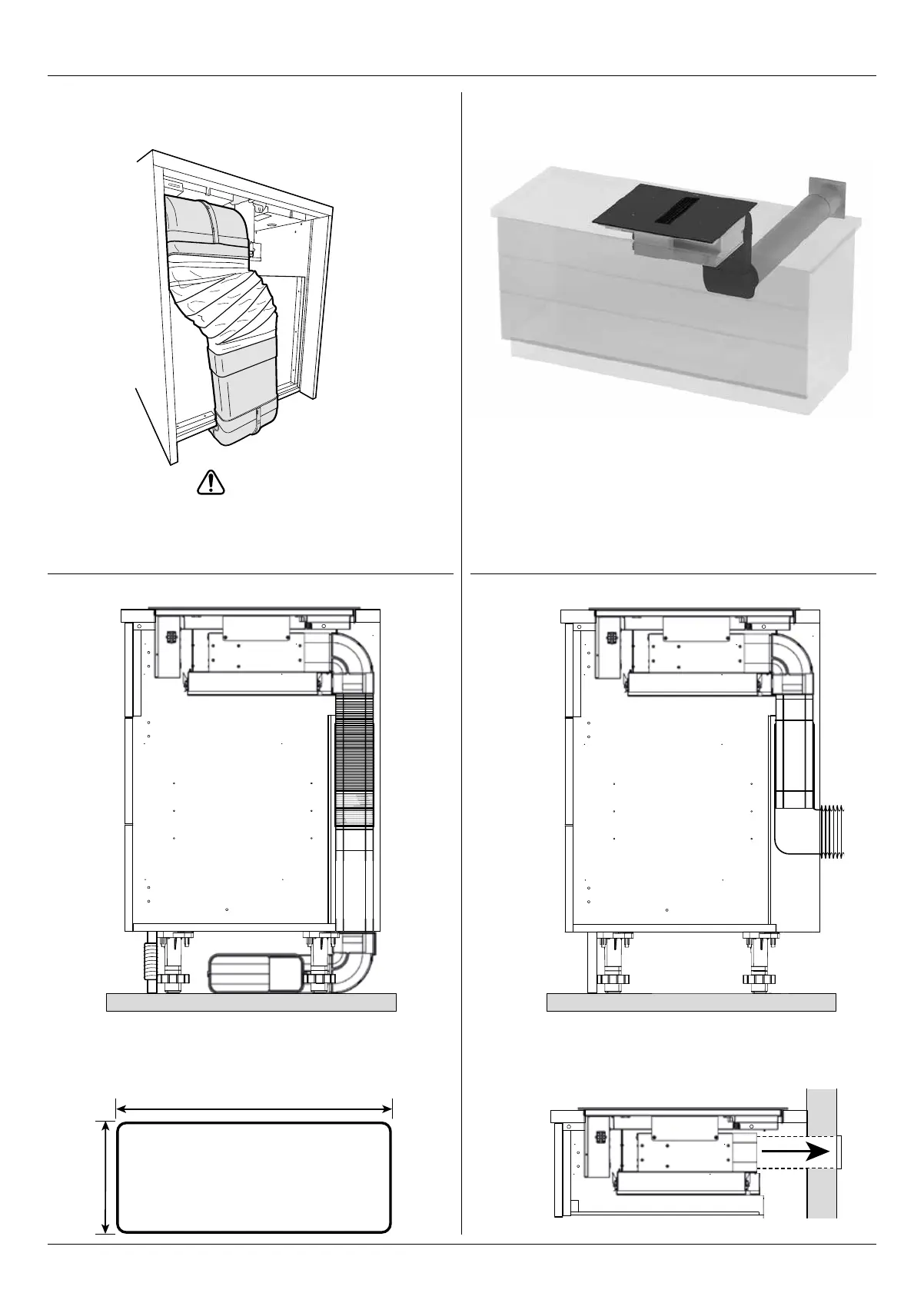

6. Installation - Air extraction system assembly
Use LAM2013 kit.
Congureventkitstosuitapplication.
Shown above using parts from
LAM2013, APL2000 and APL2807
Product vent size
222mm
89mm
Side view cabinet (B)Side view cabinet (A)
External venting: Adapt to suit (B)
Ensure plinth vent is used.
