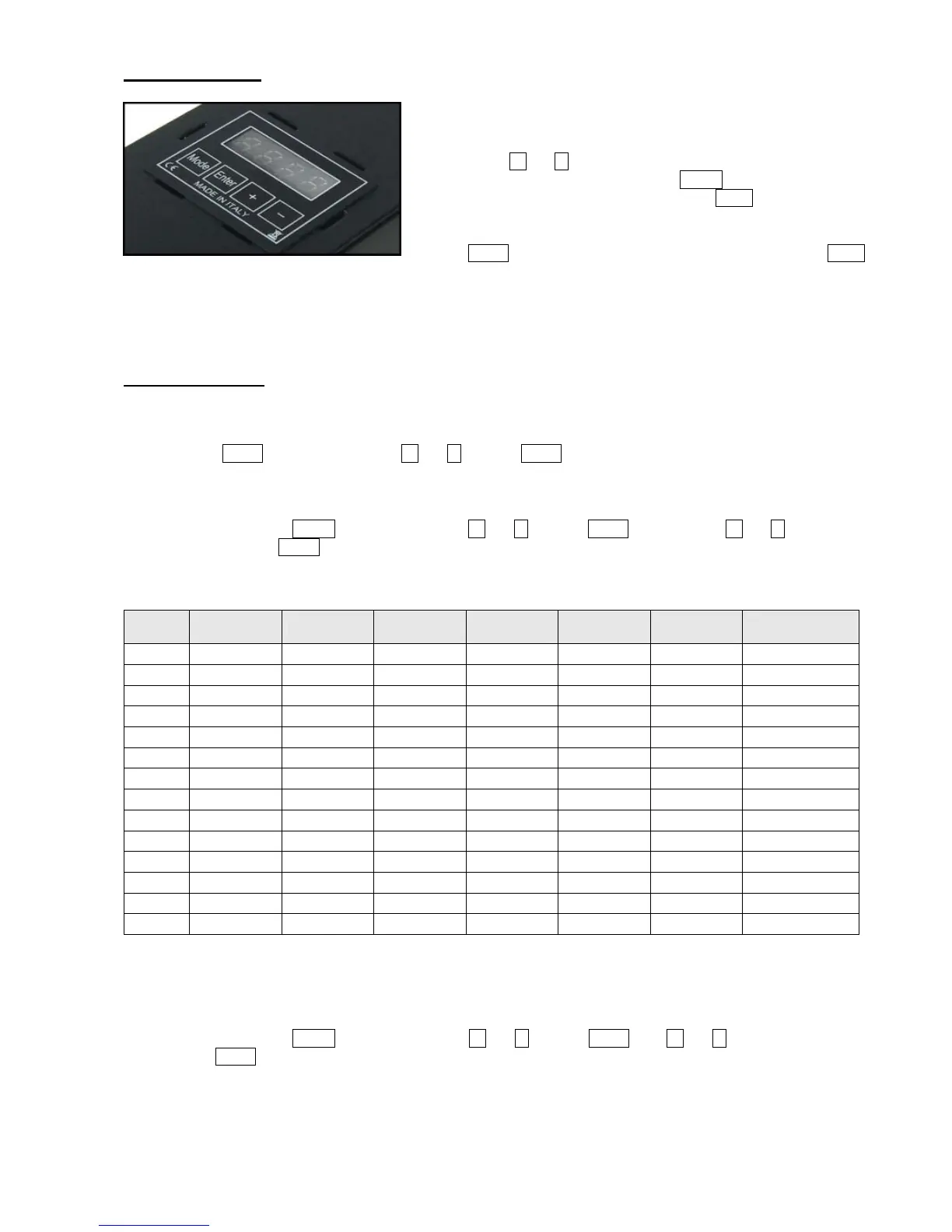

User’s interface
Use display interface to modify: functions, DMX starting address and to set
stand alone mode.
Use the buttons + and - to surf the menu’s function.
To enter into the menu, you have to push the Mode button and after that you
can search for the desiderate function and push the Enter button to enter in
it.
Push the Enter button to change DMX starting address and press the Enter
button to confirm.
In the address view mode, for example A.001, if the point after the letter A is blinking the board is receiving DMX signal, if
the point is static there’s no DMX signal.
Functions menu
- A.001: (dmx address) DMX starting address (first channel).
Default value 001
Go into pushing Enter , choose the value with + and - and push Enter to confirm.
- DM.PA: (dmx patch) Patch of the board, from 1 to 14 dmx channel.
Default value 7C d
Go to this submenu pushing Mode , choose DM.PA with + and - and push Enter to enter in. Use + and - to select the
desiderate patch and push Enter to confirm
On the table below you can see the summary of the channels, go to page 10 to see the detailed functions.
Ch. dmx 7C d 1C 3C 3C d 4C 4C d 13C d
1
Green Dimmer Green Green Green Green Green
2
Red Red Red Red Red Green fine
3
Blue Blue Blue Blue Blue Red
4
Amber Dimmer Amber Red fine
5
Strobe sync Dimmer Blue
6
Strobe Blue fine
7
Strobe delay Amber
8
Dimmer Amber fine
9
Strobe
10
Dimmer
11
CTC white
12
Fade speed
13
Frequency
14
Frequency fine
- DM.DE: (dmx delay). When DMX signal is missing, the board keeps the last DMX value received for a set period
according to this functions. After the programmed seconds, the board will execute the function according to DM.ST function,
so you can have: black-out, leds on at 15% or led on at 100%.
Default value 003 seconds
Go to this submenu pushing Mode , choose DM.DE with + and - and push Enter . Use + and - to select the desiderate
value and push Enter to confirm. Time is setted in seconds, the value start from UNL (unlimited) to 999.
- DM.ST: (leds state when DMX signal isn’t received). When the board is switched on and DMX signal is missing, the
board can do this functions: black-out, leds on at 15% or led on at 100%.
Default value 15.ON
