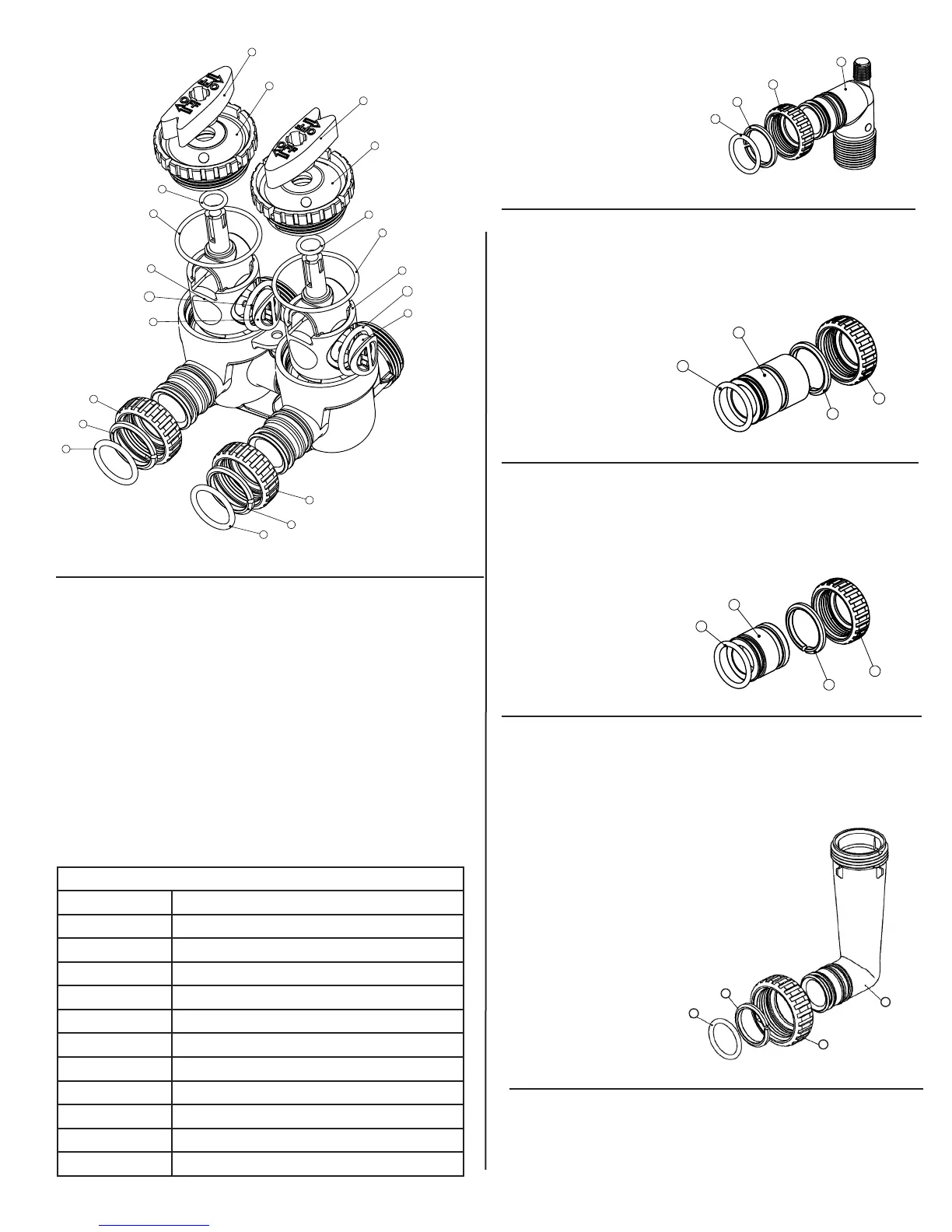

Lancaster 7-LETDAN-2B - Parts Identification

PAGE 11
3
2
1
4
































Item No. Quantity Part No. Description
1 2 V3151 Nut 1” Quick Connect
2 2 V3150 Split Ring
3 2 V3105 O-Ring 215
4 2 V3188 Fitting - 1” Brass Sweat
Item No. Quantity Part No. Description
1 2 V3151 Nut 1” Quick Connect
2 2 V3150 Split Ring
3 2 V3105 O-Ring 215
4 2 V3188 Fitting - 3/4” Brass Sweat
PARTS
Item No. Quantity Part No. Description
1 2 V3151 Nut 1” Quick Connect
2 2 V3150 Split Ring
3 2 V3105 O-Ring 215
4 2 V3149 1” PVC Male NPT Elbow
V3007-02 1” Brass
Sweat Assembly
Optional
V3007-03 3/4” Brass
Sweat Assembly
Optional
V3007 1” PVC Male NPT
Elbow Assembly
Standard
V3191-01 Vertical
Adapter Assembly
Optional
Item No. Quantity Part No. Description
1 2 V3151 Nut 1” Quick Connect
2 2 V3150 Split Ring
3 2 V3105 O-Ring 215
4 2 V3191 Vertical Adapter




















ADDITIONAL OPTIONAL FITTINGS
Part Number Description
V3007-01 3/4” X 1” PVC Solvent Elbow Assembly
V3007-02 1” Brass Sweat Assembly
V3007-03 3/4” Brass Sweat Assembly
V3007-04 1” Plastic Male NPT Assembly
V3007-05 1-1/4” Plastic Male NPT Assembly
V3007-07 1-1/4” & 1-1/2” PVC Solvent Elbow Assy
V3007-09 1-1/4” & 1-1/2” Brass Sweat Assembly
V3007-12 3/4” Shark Bite Assembly
V3007-13 1” Shark Bite Assembly
V3007-15 3/4” John Guest QC Elbow Assembly
V3007-17 1” John Guest Straight QC
Item No. Qty Part No. Description
1 2 V3151 Nut 1” Quick Connect
2 2 V3150 Split Ring
3 2 V3105 O-Ring 215
4 2 V3145 Bypass 1” Rotor
5 2 V3146 Bypass Cap
6 2 V3147 Bypass Handle
7 2 V3148 Bypass Rotor Seal Retainer
8 2 V3152 O-Ring 135
9 2 V3155 O-Ring 112
10 2 V3156 O-Ring 214
BP2000 Bypass Valve
















