P A R T S PAGE 27
Last printed 1/31/2012 4:04:00 PM
Version Rev. 2003D-0

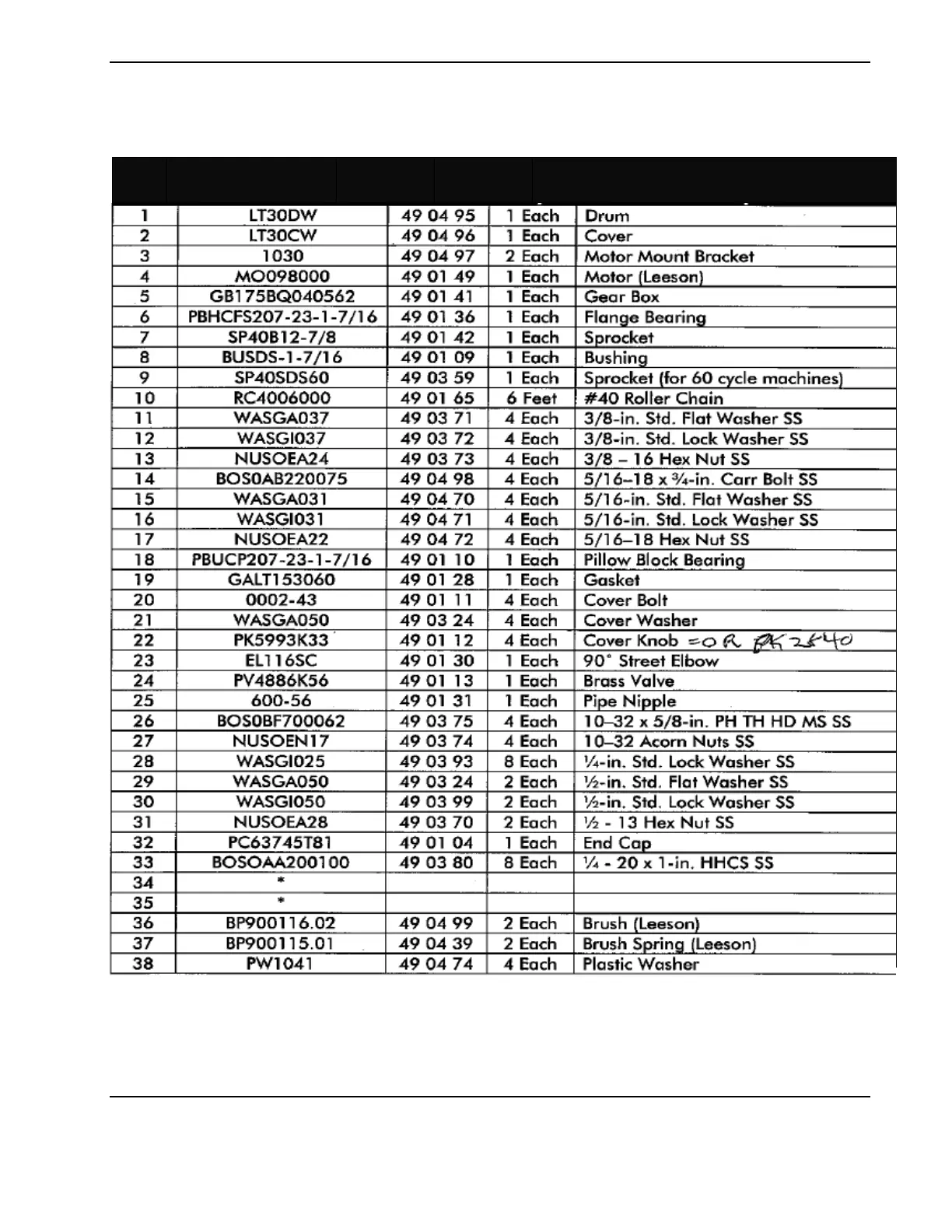

Drive-Train Assembly
Ref.
Nr. Item Nr. Item Nr. Quantity Description
1 LT15DW 49 04 63 1 Each Drum
2 LT15CW 49 04 64 1 Each Cover
3 250-8 49 04 65 1 Each Motor Mounting Bracket, variable speed
4 250-9 49 04 66 1 Each Slide Plate
5 BOS0AA200100 49 03 80 4 Each ¼ - 20 x 1-in. HHCS SS
6 WASGI025 49 03 93 4 Each ¼-in. Std. Lock Washer SS
9 SP40B10-3/4 49 01 93 1 Each Sprocket
10 SP40SDS54 49 04 67 1 Each Sprocket Variable Speed
11 BUQDSDS-1-1/4 49 04 68 2 Each Bushing
12 PBFB220-1-1/4 49 04 69 2 Each Flanged Bearing
13 RC4006000 49 01 65 6 Feet Nr. 40 Roller Chain
14 WASGA037 49 03 71 8 Each 3/8-in. Std. Flat Washer SS
15 WASGI037 49 03 72 8 Each 3/8-in. Std. Lock Washer SS
17 WASGA031 49 04 70 4 Each 5/16-in. Std. Flat Washer SS
18 WASGI031 49 04 71 4 Each 5/16-in. Std. Lock Washer SS
19 NUSOEA22 49 04 72 4 Each 5/16 – 18 Hex Nut SS
20 PC63745T81 49 01 04 1 Each End Cap
21 GALT153060 49 01 28 1 Each Gasket
22 0002-43 49 01 11 4 Each Cover Bolt
23 WASGA050 49 03 24 4 Each Cover Washer
24 PK5993K33 49 01 12 4 Each Cover Knob
26 EL116SC 49 01 30 1 Each 90˚ Street Elbow
27 600-56 49 01 31 1 Each Pipe Nipple
28 BOS0BF700062 49 03 75 4 Each 10 – 32 x 5/8-in. PH TH HD MS SS
29 NUSOEN17 49 03 74 4 Each 10 – 32 Acorn Nut SS
30 BOS0AA220075 49 04 73 4 Each 5/16 – 18 x ¾-in. HHCS Bolt SS
31 BBR1079 49 04 03 2 Each Brush for D.C. Motor
32 BBR1097 49 04 04 2 Each Brush Holder for D.C. Motor
33 BBR1094 49 04 05 2 Each Brush Cap for D.C. Motor
