LANCOM 821+ – LANCOM 1711+ VPN – LANCOM 1721 VPN
 Chapter 2: Installation
20
EN

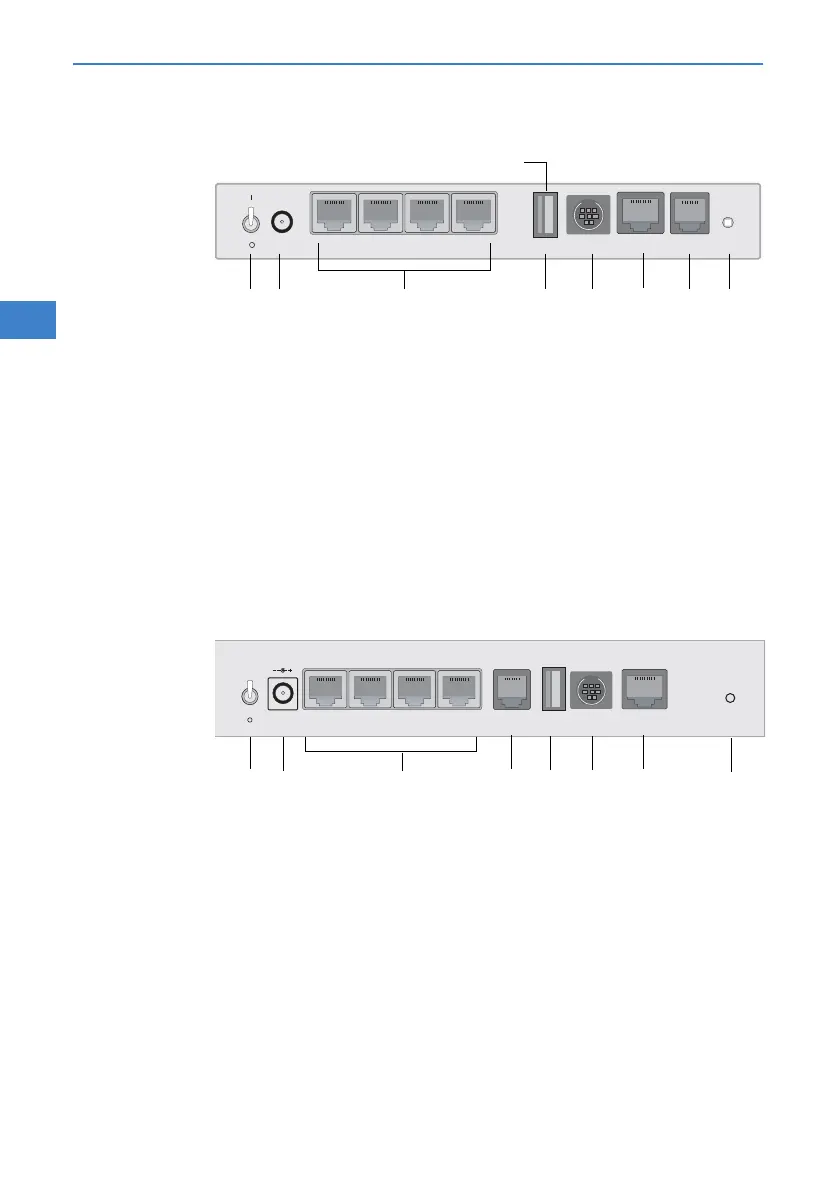

LANCOM 821+ and
LANCOM 1721 VPN
 Voltage switch
 Connection for the included power adapter
 Switch with four 10/100Base-Tx connections
 USB connection
 Serial configuration port
 ISDN/S
0
port
 ADSL port
 Reset switch
LANCOM 1711+
VPN
 Voltage switch
 Connection for the included power adapter
 Switch with four 10/100Base-Tx connections
 WAN port
 USB connection
 ISDN/S
0
port
 Serial configuration port
Reset DC12V ETH3ETH4 ETH 2 ETH1 ISDN S
0
ADSL ConfigUSB (COM)
    
not available on LANCOM 821+
WAN USB ISDN-S0
Reset
DC 12 V
Config (COM)
ETH 1
ETH 2
ETH 3
ETH 4
