Lancom 821+ - ISDN S Interface; Ethernet Interface 10;100 Base-TX

LANCOM 821+ – LANCOM 1711+ VPN – LANCOM 1721 VPN
 Chapter 10: Appendix
70
EN

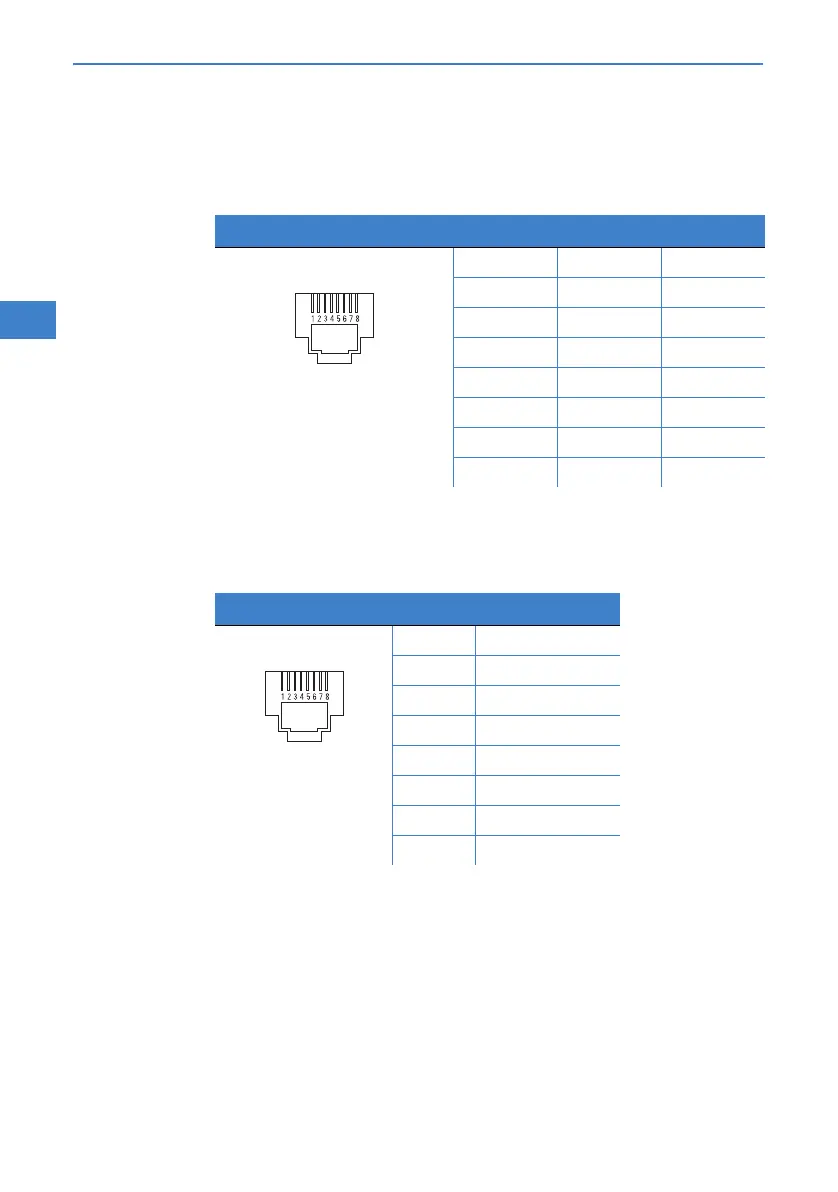

10.2.3 ISDN S
0
interface
8-pin RJ45 socket, corresponding to ISO 8877, EN 60603-7
10.2.4 Ethernet interface 10/100Base-TX
8-pin RJ45 socket, corresponding to ISO 8877, EN 60603-7
Connector Pin Line IAE
1––
2––
3T+2a
4R+1a
5R-1b
6T-2b
7––
8––
Connector Pin IAE
1T+
2T-
3R+
4–
5–
6R-
7–
8–
