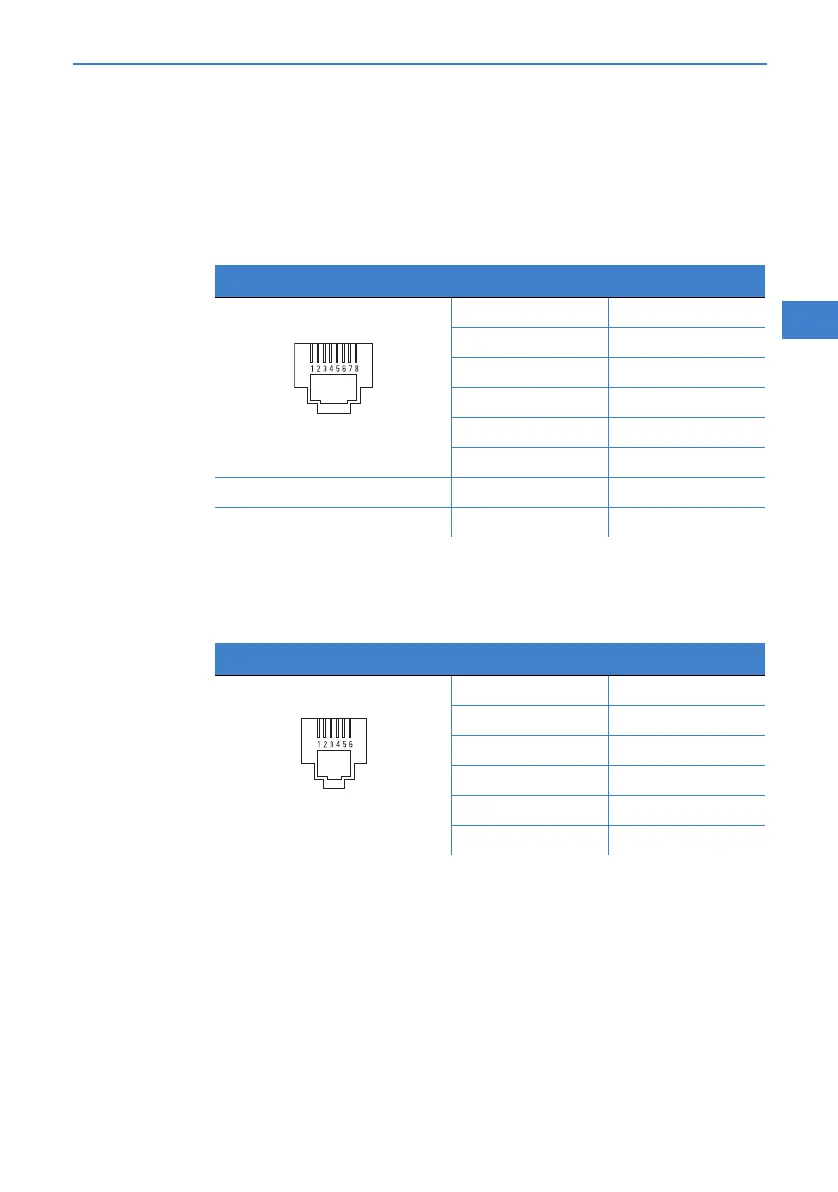

10.2 Contact assignment
10.2.1 WAN interface
Only LANCOM
1711+ VPN
8-pin RJ45 socket
10.2.2 ADSL interface
Only LANCOM
821+ and LANCOM
1721 VPN
6-pin RJ11 socket
Connector Pin IAE
1T+
2T-
3R+
4–
5–
6R-
Connector Pin IAE
1–
2–
3a
4b
5–
6–
