Slip Clutch Assembly

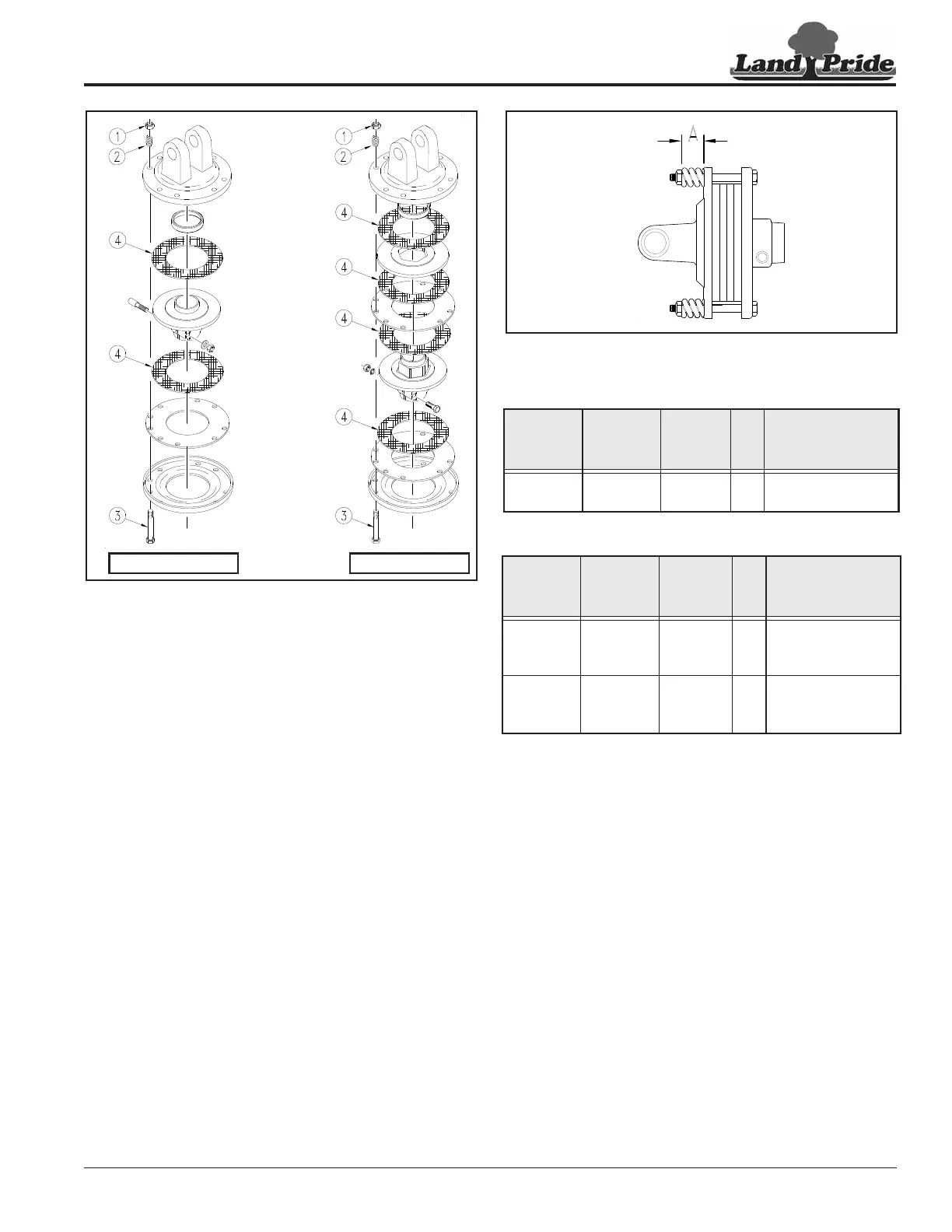

Figure 5-5
Clutch Assembly
Refer to Figure 5-5:
Install new friction discs if needed and reassemble all
components in proper order. Reassemble each friction
disc (#4) next to the metal plate it was separated from.
Install bolts (#3) through the end plates and intermediate
plates as shown. Place springs (#2) over the bolts and
secure with nuts (#1).
Refer to Figure 5-6:
Progressively tighten each spring retainer bolt until
correct spring height “A” is reached.
4-Plate Assembly2-Plate Assembly
35010
Clutch Adjustment
Figure 5-6
RCF3096
RCF(M)3010
Driveline
No.
Driveline
Location
Power
Take-Off
Speed
Cat
No.
A (inches)
Spring Height
826-255C
826-256C
Main
Jack Shaft
540 4 1.18"
Driveline
No.
Driveline
Location
Power
Take-Off
Speed
Cat
No.
A (inches)
Spring Height
826-215C
826-220C
826-225C
Main
Jack Shaft
Stub Shaft
540 4 1.18"
826-216C
826-221C
826-226C
Main
Jack Shaft
Stub Shaft
1000 4 1.09"
24600
