Landa PDE4-2000 - Hose & Spray Gun Assembly; Hose & Spray Gun Parts List

LANDA PDE • 8.913-997.0 • Rev. 02/12
OPERATOR’S MANUAL
PRESSURE WASHER
26

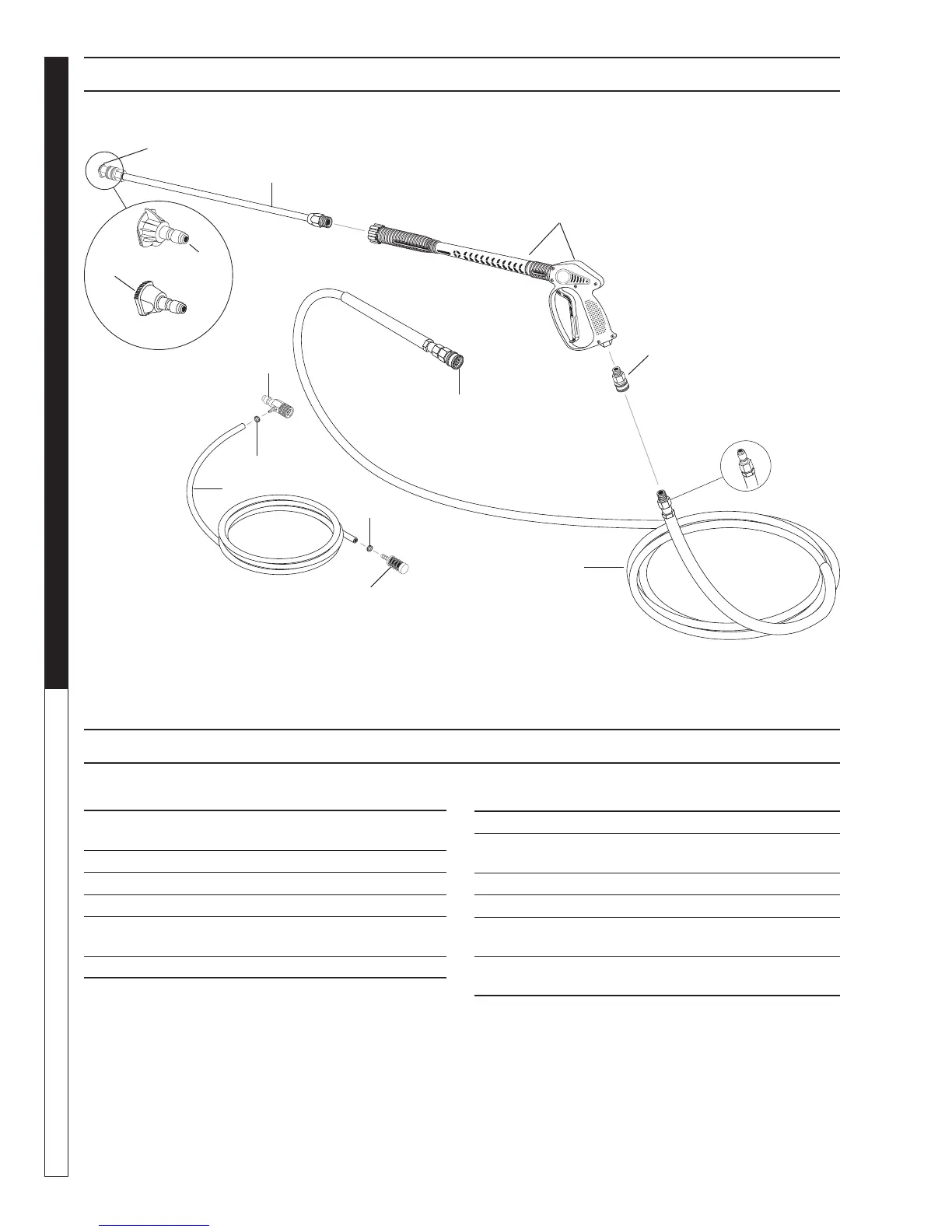

HOSE AND SPRAY GUN ASSEMBLY
HOSE AND SPRAY GUN ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.802-166.0 Coupler, 3/8" Female 1
9.802-100.0 ▲ Quick Coupler O-Ring 1
2 Hose, See Specifi cations page # 19 1
3 9.802-223.0 Spray Gun, Shut-Off 1
4 9.802-220.0 Wand, Straight 1
5 9.802-164.0 Coupler, 1/4" Female 1
9.802-096.0 Quick Coupler O-Ring 1
6 Nozzle, See Specifi cations Page
ITEM PART NO. DESCRIPTION QTY
7 8.712-398.0 Nozzle, Brass Soap 1
8 9.802-216.0 Injector, Chemical,
Non-Adjust, 3-5GPM, .083 1
9 9.802-210.0 Clamp, Hose, .46 - .54 ST 2
10 9.802-251.0 Tube, 1/2" x 1/2" Clear Vinyl 6ft.
11 8.707-057.0 Strainer, 1/4" Hose Barb,
Plastic 1
12 9.802-169.0 Coupler, 3/8" Socket, Male
Brass (PDE4-30025C Only) 1
▲ Not Shown
6
2
12
Quick Connection
Only PDE4-30025C
Model
3
7
5
1
4
10
8
9
11
9
