Landa PDE4-2000 - RKA Pump Exploded View; RKA Pump Parts List

LANDA PDE • 8.913-997.0 • Rev. 02/12
OPERATOR’S MANUAL
PRESSURE WASHER
22

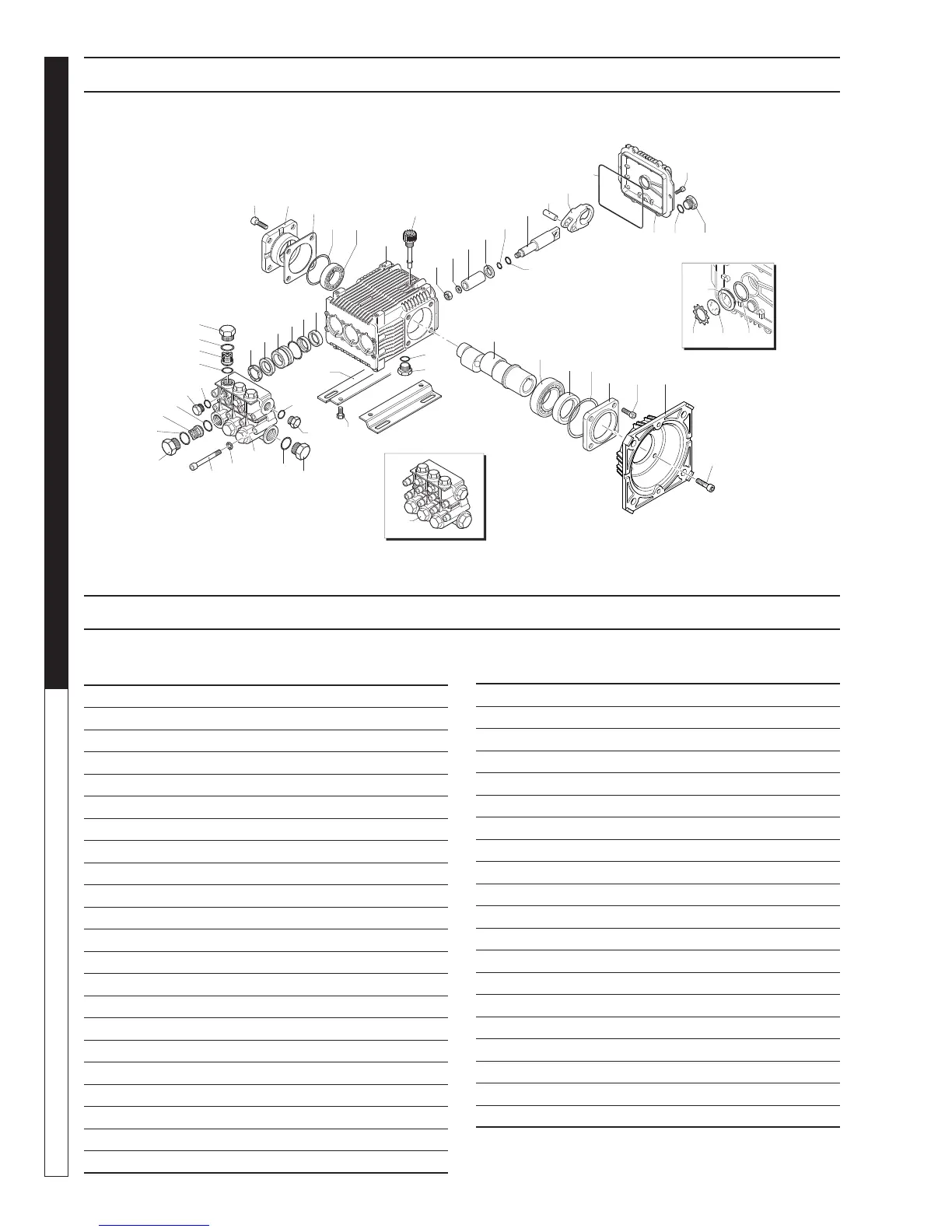

RKA PUMP EXPLODED VIEW
#5-2263 RKA 1750
RPM
E VERSION 1-1/8"
WITH
N
EMA
182-184 F
LANGE
ITEM PART NO. DESCRIPTION QTY
1 960160 O-Ring 6
2 960090 Plug RKA 6
1380740 Plug RKAH 6
3 1389051 Complete Valve 6
4 880830 O-Ring 6
5 880581 Plug, 1/4" G RKA 2
1380690 Plug, 1/4" G Nickel RKAH 2
6 820510 O-Ring 2
7 960110 Supporting 018 3
840300 Supporting 020 3
840320 Supporting 022 3
8 880320 Gasket 018 3
840290 Gasket 020 3
840330 Gasket 022 3
9 1380090 Piston Guide 018 3
1380150 Piston Guide 020 3
1380160 Piston Guide 022 3
10 961240 O-Ring 3
11 880330 Gasket 018 3
840280 Gasket 020 3
840340 Gasket 022 3
12 1383130 Seal 3
RKA PUMP EXPLODED VIEW PARTS LIST
ITEM PARTNO. DESCRIPTION QTY
13 850370 Screw 4
14 1380050 Bearing Support 1
15 640030 O-Ring 1
16 2280240 Bearing 1
17 1382770 Pump Housing 1
18 880130 Oil Cap 3
19 962010 Nut 3
20 962000 Washer 3
21 1380940 Ceramic Piston 018 3
1380930 Ceramic Piston 020 3
1380360 Ceramic Piston 022 3
22 1380950 Spacer 3
23 600180 O-Ring 3
24 1380920 Guiding Piston 3
25 1380060 Piston Pin 3
26 1383050 Aluminum Con Rod 3
1383020 Bronze Con Rod 3
27 1780510 O-Ring 1
28 1789010 Complete Cover 1
29 1343510 Screw 6
