Landa PDE4-2000 - LE.1 Pump Exploded View; LE.1 Pump Parts List

LANDA PDE • 8.913-997.0 • Rev. 02/12
OPERATOR’S MANUAL
PRESSURE WASHER
20

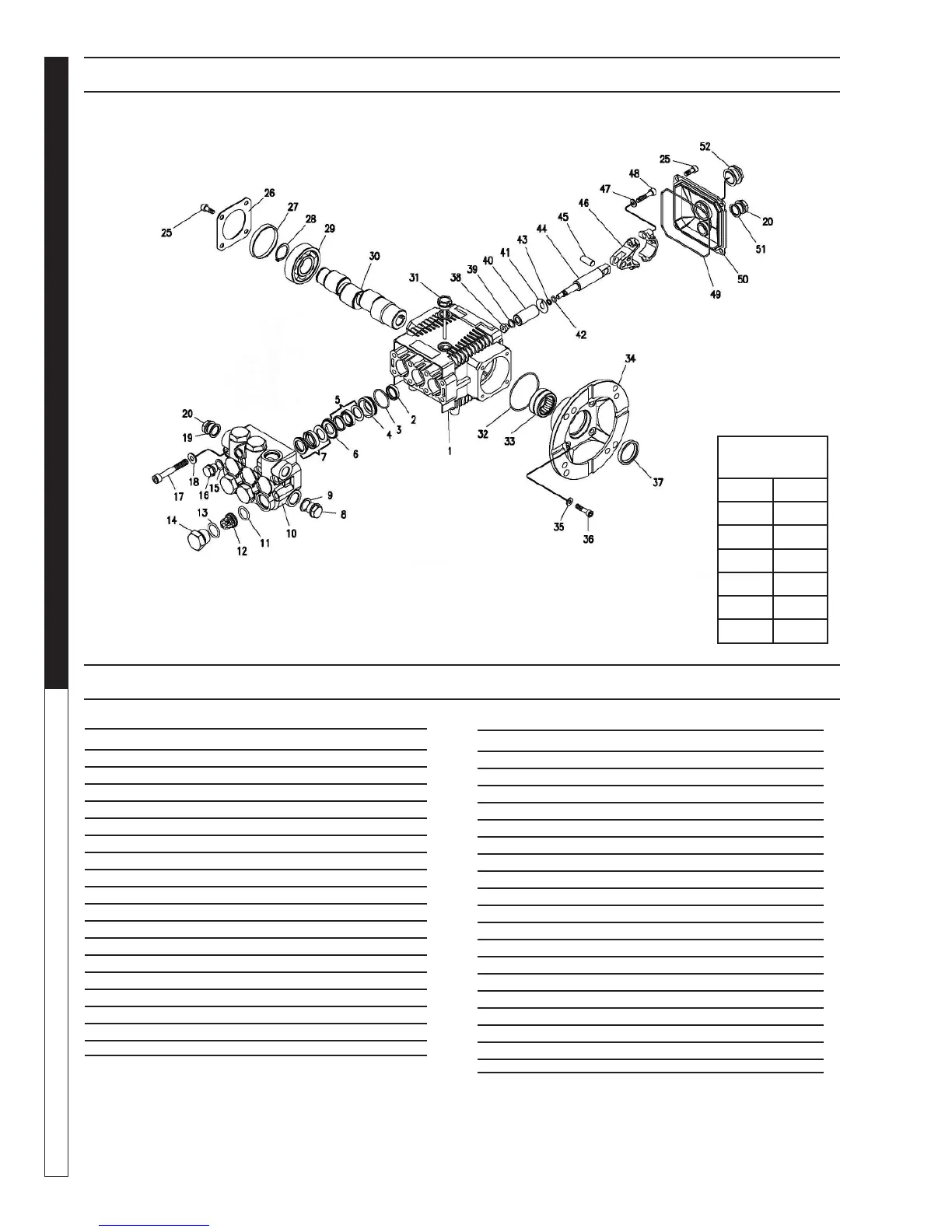

LE.1 SERIES PUMP EXPLODED VIEW
LE.1 SERIES PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
16 9.803-951.0 Brass Plug G1/4 1
17 9.803-952.0 Manifold Stud Bolt 8
18 9.802-884.0 Washer 8
19 9.803-198.0 Copper Washer 3/8 1
20 9.802-925.0 Brass Plug G3/8 2
25 9.802-939.0 Screw 12
26 9.803-953.0 Bearing Cover 2
27 9.803-954.0 Bearing Seal 1
28 9.802-914.0 Snap Ring 1
29 9.803-955.0 Ball Bearing 2
30 9.804-576.0 Crankshaft (2020F) 1
9.804-577.0 Crankshaft (2020S) 1
9.804-578.0 Crankshaft (2825F) 1
9.804-579.0 Crankshaft (2825S) 1
9.804-580.0 Crankshaft (3525F) 1
31 9.803-957.0 Oil Dipstick 1
32 9.804-581.0 O-Ring Ø3.53 x 55.56 1
33 9.804-582.0 Needle Bearing 1
34 9.804-583.0 Motor Flange 56C 1
35 9.803-210.0 Washer 4
8.904-848.0 LE 2020F.1
8.904-849.0 LE 2020S.1
8.916-553.0 LE 2825F.1
8.916-554.0 LE 2825S.1
8.904-852.0 LE 3525F.1
ITEM PART NO. DESCRIPTION QTY
1 9.803-938.0 Crankcase 1
2* 9.804-586.0 Plunger Oil Seal 3
3*
See Kit Below O-Ring Ø 1.78 x 28.30 3
4* See Kit Below Pressure Ring 15mm 3
See Kit Below Pressure Ring 18mm 3
5* See Kit Below U-Seal, dia 15mm 6
See Kit Below U-Seal, dia 18mm 6
6*
See Kit Below Intermediate Ring 15mm 6
See Kit Below Intermediate Ring 18mm 6
7*
See Kit Below U-Seal, 15mm 3
See Kit Below U-Seal, 18mm 3
8 9.802-926.0 Brass Plug G1/2 1
9 9.803-199.0 Copper Washer 1/2" 1
10 9.803-946.0 Manifold Housing 1
11 9.803-947.0 O-Ring Ø1.78 x 15.54 6
12*
See Kit Below Valve Assembly 6
13* 9.803-948.0 O-Ring Ø2.62 x 18.77 6
14 9.803-949.0 Valve Plug 6
15 9.803-950.0 Copper Washer 1/4 1
TORQUE
SPECS
Item # Ft.-lbs
14 65
17 18
25 7.6
36 8
38 7
48 13
