PG SERIES PRESSURE WASHER OPERATOR’S MANUAL
5
LANDA PG • REV. 9/02

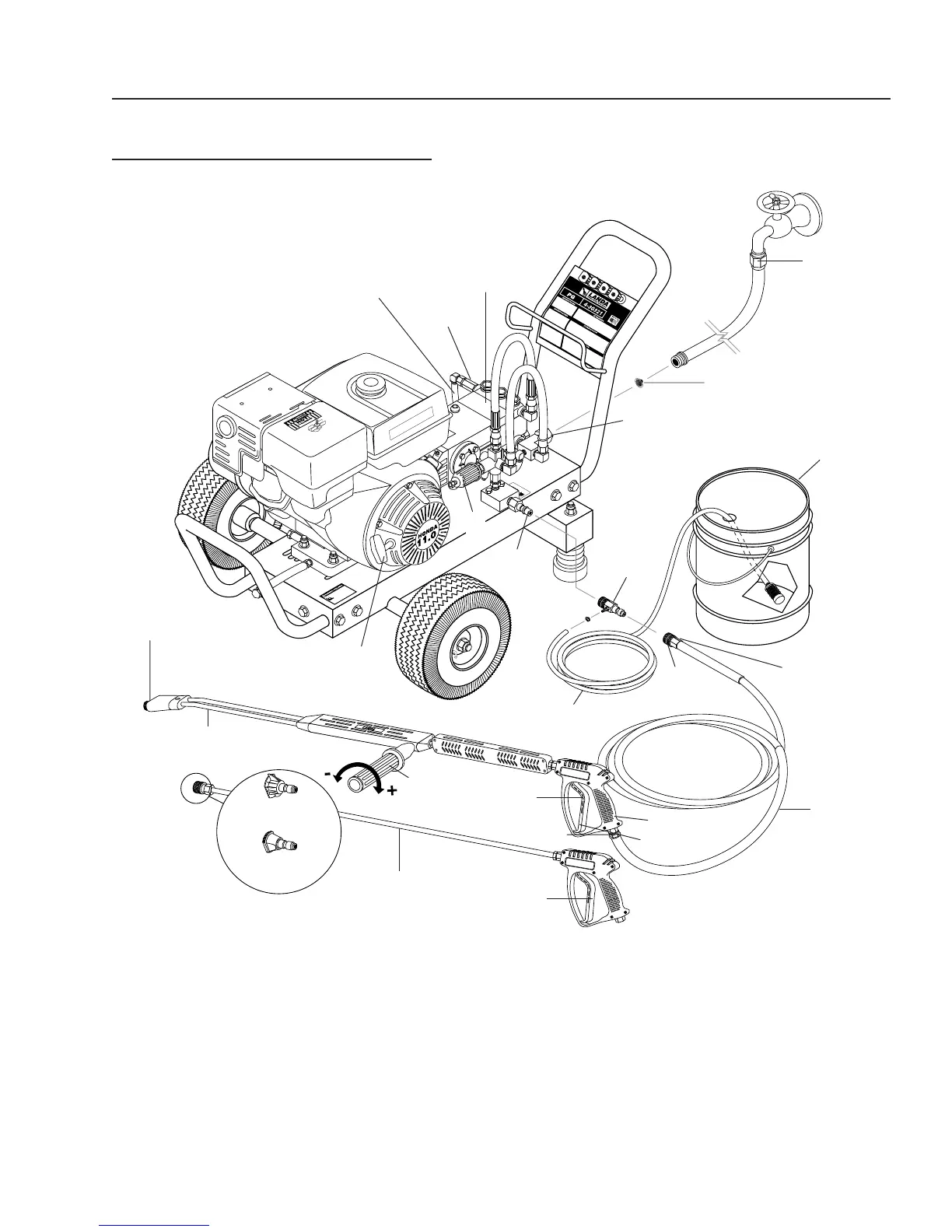

COMPONENT IDENTIFICATION
4-1500, 4-2000, 4-2500, 4-3000, 4-3500
Pump — Develops high pressure.
Starter Grip— Used for starting the engine manually.
Spray Gun — Controls the application of water and de-
tergent onto cleaning surface with trigger device. Includes
safety latch.
Detergent Injector — Allows you to siphon and mix
detergents.
Variable Pressure Wand — Must be connected to the
spray gun. Allows for detergent injection and lower pres-
sure by turning handle.
High Pressure Hose — Connect one end to water pump
discharge nipple and the other end to spray gun.
Pump Protector — Cycles water through pump when
water reaches 140°-145°F.
Note: If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm water
will discharge from pump onto floor. This system
prevents internal pump damage.
High
Pressure
Hose
Pressure Nozzle
Discharge
Nipple
Spray Gun
Trigger
Variable Pressure Wand
4-3000 & 4-3500
Water Supply
Hose
(not included)
Inlet
Connector
Detergent
Injector
Quick
Coupler
Collar
Wand
Coupler
Collar
Water Filter
EZ Start
Valve
Pump
Protector
Pump
Variable
Pressure
Handle
Starter
Grip
Safety Latch
Soap Nozzle
Straight Wand
on 4-1500,
4-2000 & 4-2500
Detergent
Hose
Detergent Bucket
(not included)
Trigger
Swivel
Connector
Unloader
