16 PG SERIES PRESSURE WASHER OPERATOR’S MANUAL
LANDA PG • REV. 9/02

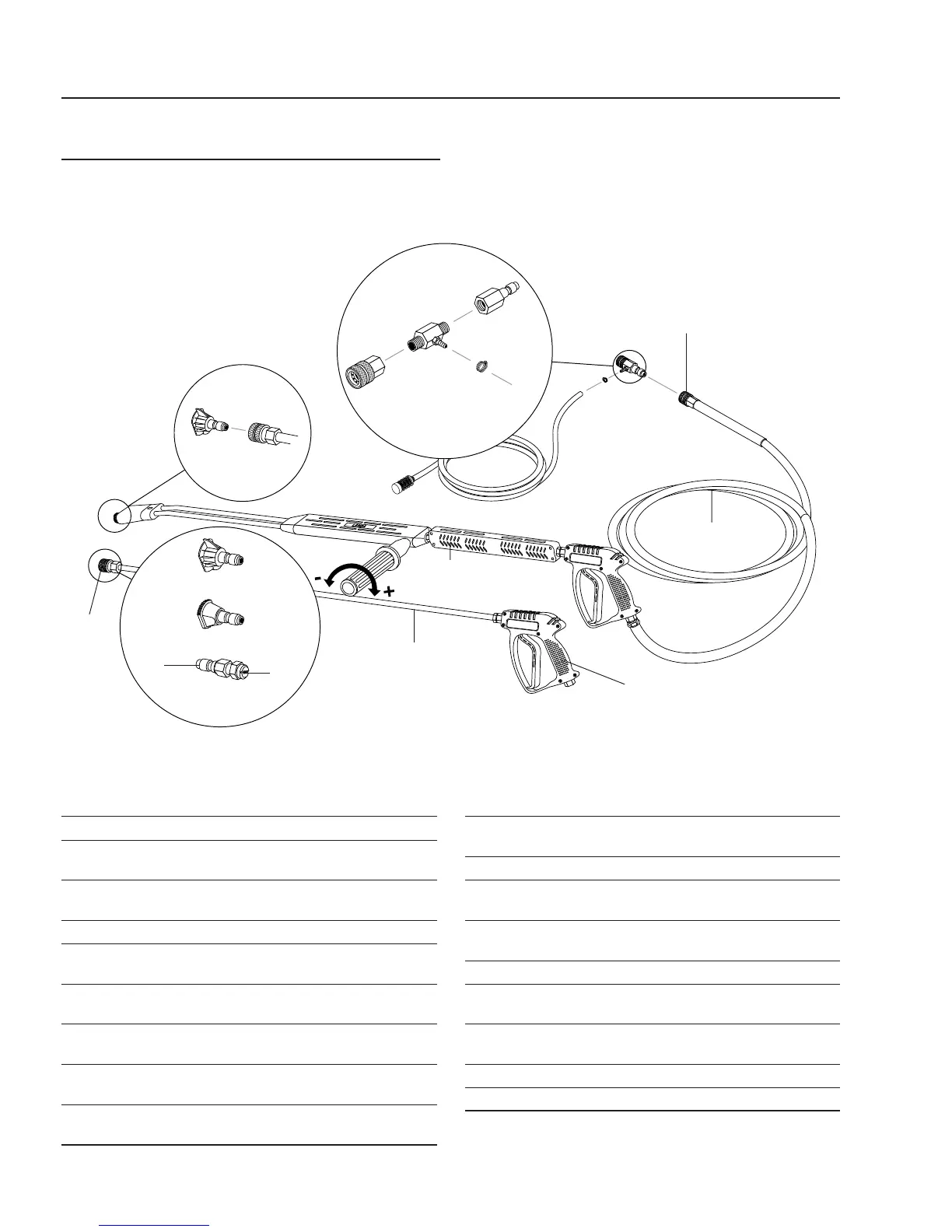

PG HOSE & SPRAY GUN ASSEMBLY
ALL MODELS
ITEM PART NO. DESCRIPTION QTY
1 2-2002 Coupler, 3/8" Female 1
2-0123H ▲ Quick Coupler O-Ring,
1/4" & 3/8" (Packaged) 1
2-20021 Coupler, 3/8" Female 5000 psi
(4-4000) 1
2-01321 ▲ Seal, 3/8" (4-4000) 1
2 4-02083450C Hose w/Coupler 50' x 3/8"
(except 4-4000) 1
4-02083450F Hose w/Coupler 3/8" x 50'
w/5000 psi Coupler (4-4000) 1
3 4-01212 Spray Gun, Shut-off,
Series 2000 1
4 4-011053 Wand, SS, 31.4" YL31SS
(4-1500, 4-2000, 4-2500) 1
5 4-011143A Wand, VP AL344
(4-3000, 4-3500, 5-3500) 1
ITEM PART NO. DESCRIPTION QTY
5 4-011143B Wand, VP Assy 4000 psi
(4-4000) 1
6 Pressure Nozzle (See Exploded View)
7 4-16540 Brass Soap Nozzle (4-1500,
4-2000, 4-2500) 1
4-0146540S Nozzle Only, Brass Soap
(4-4000) 1
8 2-2000 Coupler, 1/4" Female 1
2-0119 ▲ O-Ring, Coupler Quick Sm
HI-HT 1
2-20023 Coupler, 1/4" Female 5000 psi
(4-4000) 1
2-01321 ▲ Seal 1/4" 1
9 2-20024 Nipple, 1/4" Female 5000 psi 1
▲ Not Shown
4-4000
6 - Pressure Nozzle
7 - Brass Soap Nozzle
Nozzle
8
4
5
6
9
High Pressure
Nozzle
2
3
1
