Landi E830 - Telephone Line Cord Port; COM1;COM2 Port; USB Host Expansion Port



ThisdocumentisthepropertyofLANDI.
Itscontentcannotbereproducedordivulgedwithout

the company’swrittenapproval.
10/18

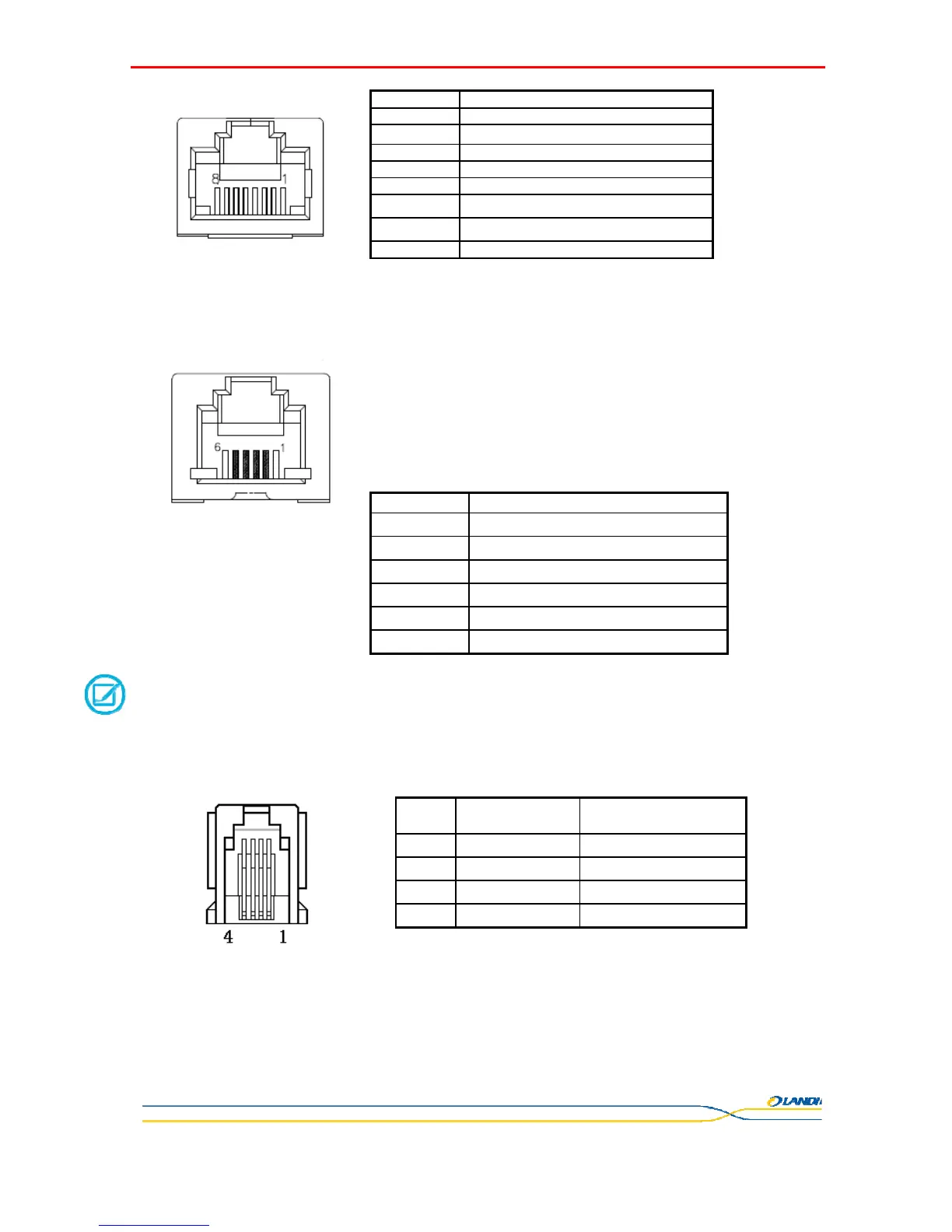

RJ45


2.3.4 Telephone line cord port
When your terminal contains MODEM communication function, this port is used for dial-up connection, and should
be connected to the telephone line RJ11 cord.
RJ11

**************************************************************************************
NOTE
Don’t connect the PINPAD to telephone line cord port, or will cause the damage.
**************************************************************************************
2.3.5 COM1/COM2 port
Terminal is configured RS232 port.
RJ22

2.3.6 USB host expansion port
Terminal has a USB expansion port to connect a USB device which is recommended to use S160 PINPAD.
USB HOST
SN RJ45
1 ETH_TX+ Ethernet communication signals
2 ETH_TX- Ethernet communication signals
3 ETH_RX+ Ethernet communication signals
4 NC
5 NC
6 ETH_RX- Ethernet communication signals
7 NC
8 NC
SN RJ11 Socket
1 NC
2 NC
3 Telephone line A
4 Telephone line B
5 NC
6 NC
SN PINPAD
RJ22
E830 Port socket
1 Power supply 5.0V
2 PINPAD receive send
3 PINPAD send receive
4 Single GND Single GND
