Landmann Ardor PTS+5.0+Built-In - Part List; Controls

4
Ardor

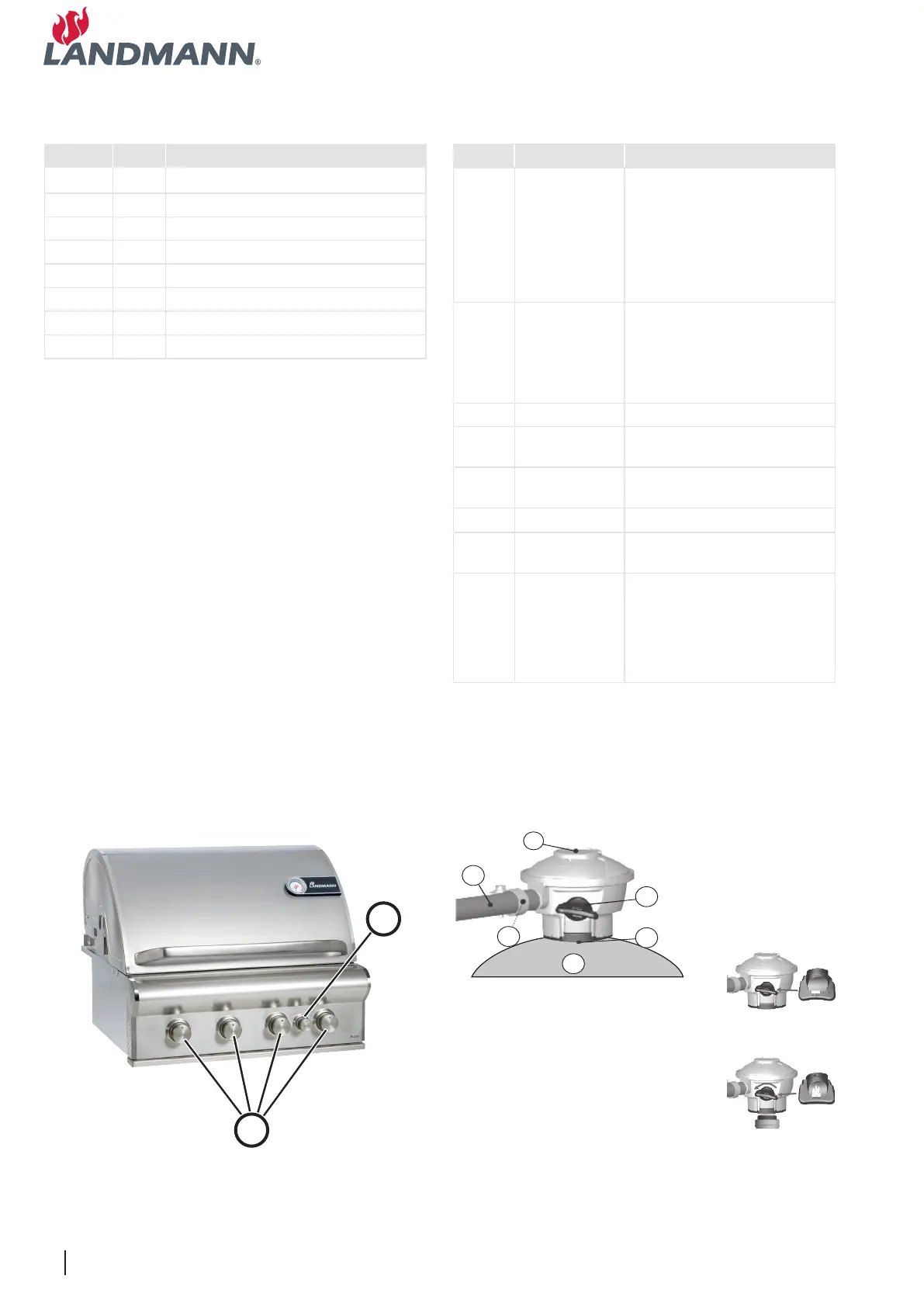

Control elements
Item * Designation Function
B Flame regu-
lator for the
grill unit
Feeds gas into the bur-
ner on the grill unit (press,
set to "large flame" and
keep depressed).
After ignition, adjust
the heat input for each
burner side (turn).
C Flame regu-
lator for the
rear burner
Feeds gas into the rear burner
(press, set to „large flame“
and keep depressed).
After ignition, set
heat input (turn).
G0 Gas cylinder Fuel container
G1 Pressure
reducer
Reduce gas pressure
G2 Gas cylinder
for bottle valve
Fuel container
G3 Rubber hose Directs gas to burner
G4 Proper
hose clip
Fuel container
G5 Regulator
handle
Cut-off safety device
with 2 settings:
„-“ setting: Gas off /
shut off gas cylinder
„flame“: Gas is on.
Part list
Item Qty. Designation
1 2 Rubber bumper
2 1 Barbecue unit, pre-assembled
3 1 Hose & regulator
4 1 Grease tray
5 3 Low heat shield
6 4 Flame tamer
7 2 Cooking grate
8 1 Warming rack
Gas on:
Gas o:
G1
G3
G4
G5
G2
G0
It is recommended that you only use propane gas with your
LANDMANN barbecue which is fitted with a propane gas
regulator!
C
B
