8
Ardor
Assembly
Here are a few tips to help you assemble your barbecue
quickly and successfully:
• Check that no parts are missing by placing all of the indi-
vidual parts on an empty table (subject to minor techni-
cal changes).
• If, despite careful factory checks, a component should
be missing, please contact our customer service depart-
ment (see last page). We will immediately attend to your
request.
• To assemble the barbecue, all you need is a medium-
sized screwdriver.
• Only use tools that are intact and suitable for the job
at hand. Worn or unsuitable tools will not allow you to
tighten the bolts suciently, but will damage them to
the extent that they can no longer be turned.
• Always fit all connecting elements (screws, nuts, bolts,
et cetera) as shown in the illustrations. If you misplace a
connecting element, replace it with an appropriate part.
Only by doing this can you ensure that the construction
is strong and safe.
• Be sure to follow the instructions in the specified order!
• Even if you are not experienced at DIY, assembly does
not generally take longer than one hour.
•
The illustrations showing the assembly steps are at the
end of this manual.
Connecting and disconnecting
the gas cylinder
Parts and tools needed
• Gas cylinder
CommonPatio Gas cylinder, fill weight 4,5 or 7 kg, (e.g.
green Propane Gas cylinder). These are available at DIY
shops or from liquid gas suppliers.
Leak indicator
• You can locate any leaks in the gas system using a leak
detector. This can be purchased at DIY shops or liquid
gas suppliers. Please follow the operating instructions of
the leak detector.
The following parts are included in delivery. They comply
with the standards applicable in the country to which they
have been supplied by LANDMANN.
Gas hose (pre-assembled)
-approved hose of a sucient length (max. 1.5 m) to
allow for kink-free assembly.
• Pressure regulator (already attached to the gas hose)
Preset and -approved pressure regulator, max. 1.5
kg/h, operating pressure 28-30/37 mbar, suitable for the
gas cylinder used.

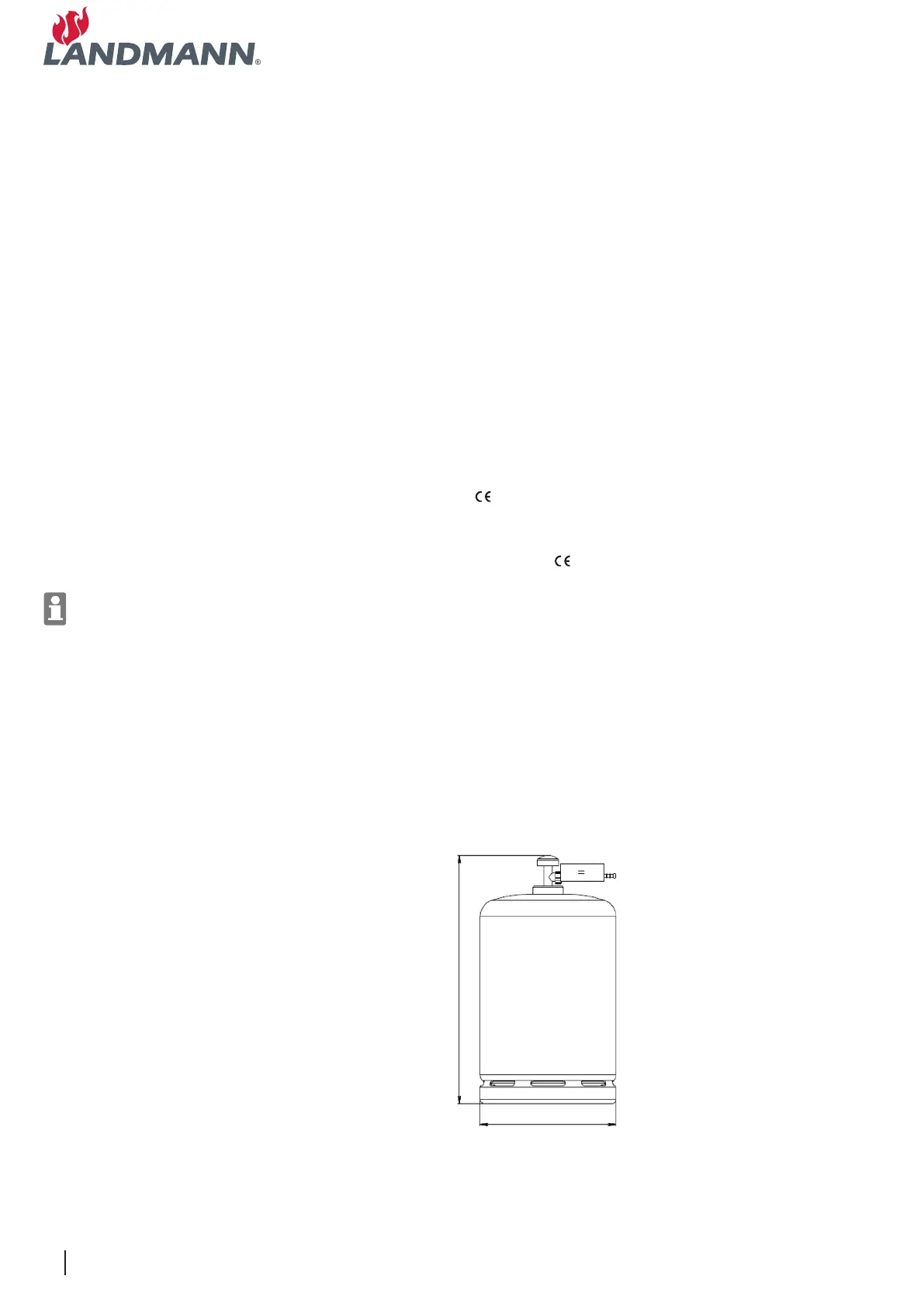

Permitted gas cylinder sizes
It is recommended that you only use Calor Patio Gas
with your LANDMANN barbecue which is fitted with
a 27mm Clip on gas regulator!
4,5 kg: Ø 240mm x 340mm
7 kg: Ø 256mm x 495mm
