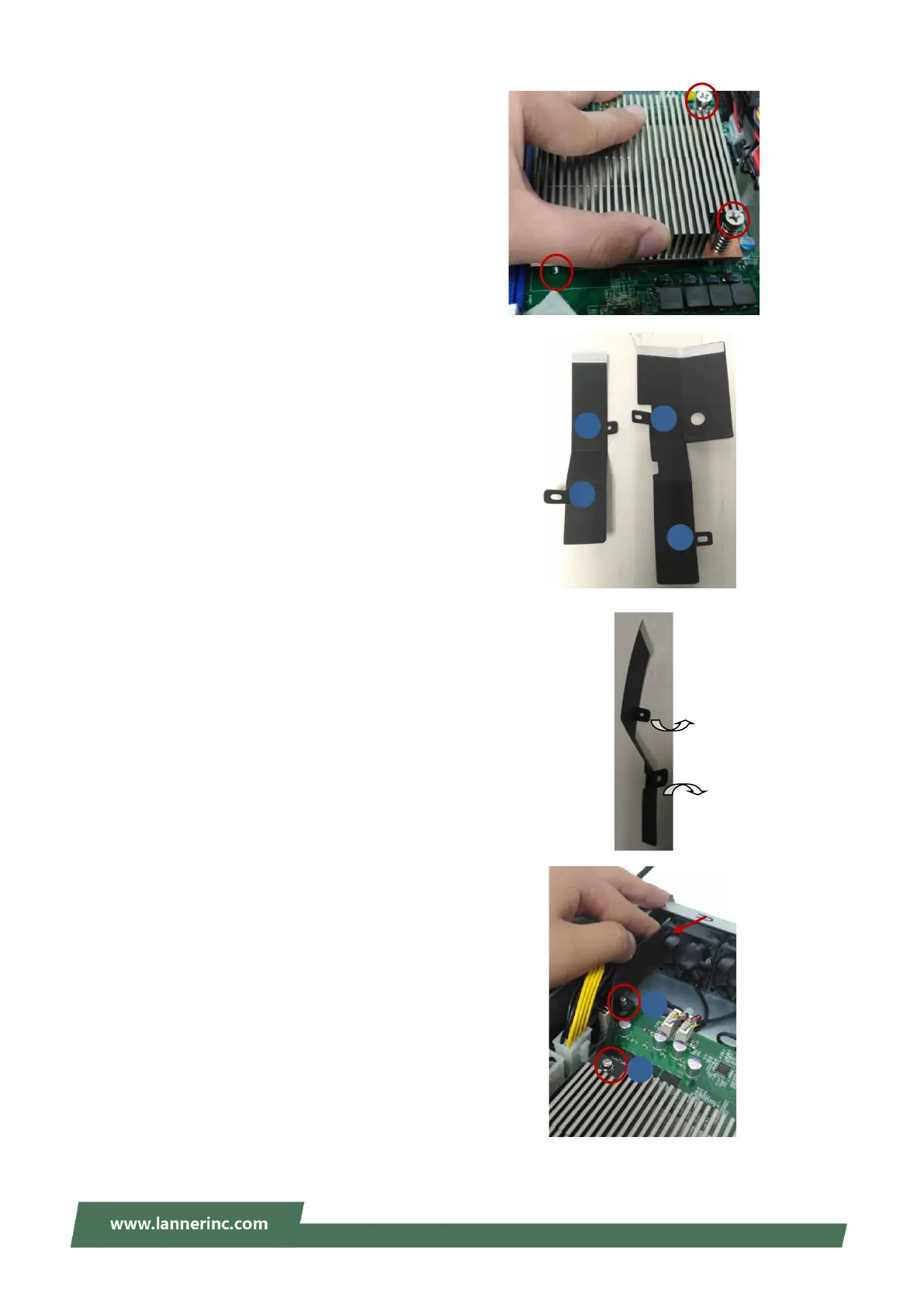

6. Prepare the heat sink.
7. Place the heat sink on top of the CPU socket.
8. Align the four screw holes around the socket.
9. Tighten the four (4) screws to secure the heat
sink.
10. Prepare the fan duct.
11. Fold the smaller part as shown in the image.
12. Place the fan duct part to the corner of the
heatsink and attach the sticker end to the fan
as well. Make sure the screw holes are aligned.
The sticker end to the fan
C
A
D
B
A
B
