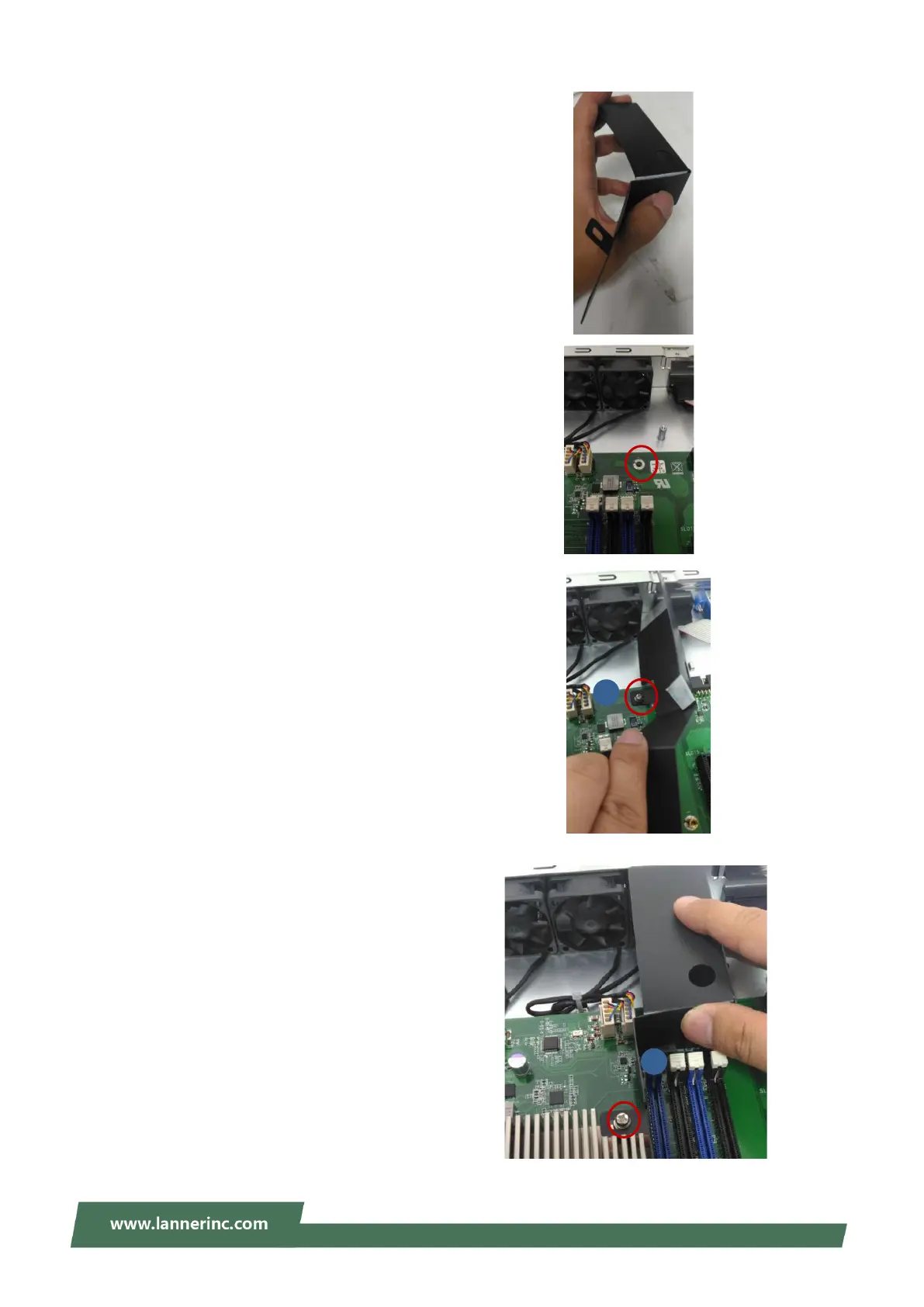

13. Fold another larger fan duct part as shown.
14. Remove the screw near the fan.
15. Attach C screw hole of the fan duct part to the
screw hole near the fan. Secure with the
previously removed screw.
16. Place the rest of the fan duct part to the corner
of the heatsink. Align to the screw hole and secure
with screw.
C
D
